Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BDH000741R1 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | AC800H PLC System |
| Input Voltage | 24V DC |
| Output Voltage Range | 0-10V DC |
| Operating Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 100 mm × 80 mm × 35 mm |
| Weight | 0.55 kg |
| Certifications | CE, RoHS |
| Isolation Voltage | 2 kV |
| Measurement Accuracy | ±0.5% |
| Response Time | <2 ms |
| Explosion-proof Class | Ex ia IIB T4 |

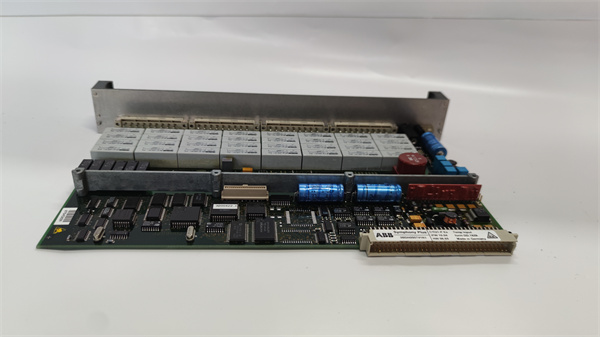

3BDH000741R1
Product Introduction
The ABB 3BDH000741R1 is a high-performance industrial control module designed for precise and reliable operation in demanding environments. It is part of the ABB AC800H PLC system and is ideal for applications requiring robust and efficient control solutions.
Core Advantages and Technical Highlights
High Precision and Reliability: The 3BDH000741R1 features high precision and reliability, making it suitable for harsh industrial environments. It supports real-time monitoring and fault alarms, ensuring stable operation.
Wide Operating Range: The module operates reliably within a temperature range of -40°C to +85°C and a humidity range of 5% to 95% non-condensing.
Advanced Communication Protocols: The 3BDH000741R1 supports various communication protocols, enabling seamless integration with existing systems and enhancing overall interoperability.
User-Friendly Interface: The module features a user-friendly interface that facilitates easy setup and operation, minimizing the learning curve for new users.

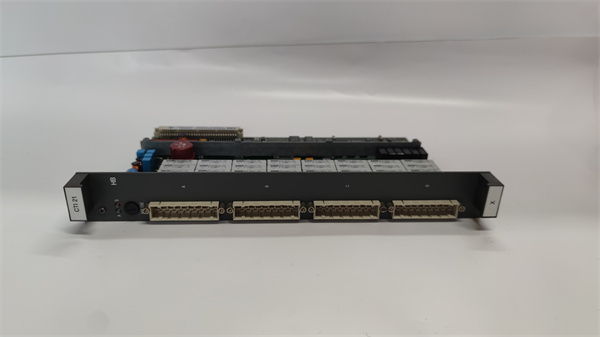

3BDH000741R1
Typical Application Scenarios
The ABB 3BDH000741R1 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For process control and machine control applications.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Oil & Gas Industry: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
ABB DI810: Known for its robust I/O capabilities.
-
ABB 216NG63A: A reliable choice for general control tasks.
-
ABB CI868K01-eA: Ideal for communication-intensive applications.
-
ABB PM861K01 3BSE018105R1: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BDH000741R1 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
