Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BDH000730R1 |
| Manufacturer | ABB |
| Product Category | Digital Input Module |
| Series | Symphony Plus |
| Number of Channels | 32 digital inputs |
| Input Signal Types | Standard binary signals, Namur signals, transmitter power supply |
| Isolation | Electrical isolation between channels |
| Operating Voltage | 24V DC |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 175 mm × 87 mm × 43 mm |
| Weight | 0.55 kg |
| Certifications | CE, RoHS |

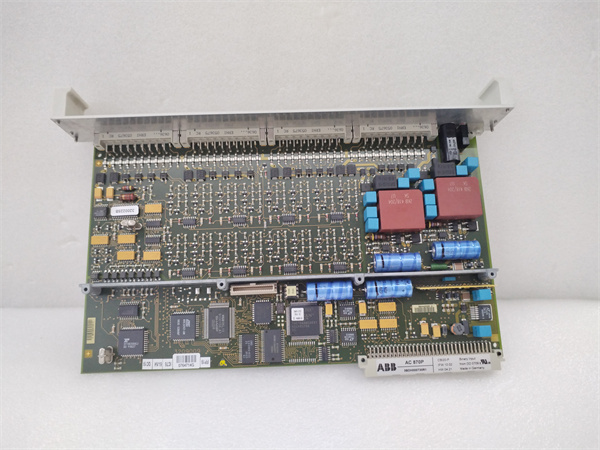

3BDH000730R1
Product Introduction
The ABB 3BDH000730R1 is a high-performance digital input module designed for the ABB Symphony Plus automation system. It provides a flexible way to connect and control various field devices, such as sensors and switches.
Core Advantages and Technical Highlights
High Reliability: The module features industrial-grade design with high reliability and stability, making it suitable for harsh industrial environments.
Flexible Configuration: The 3BDH000730R1 supports multiple signal types, including standard binary signals, Namur signals, and transmitter power supply, allowing for flexible configuration based on different application needs.
Electrical Isolation: Each channel is electrically isolated, enhancing the system’s reliability and reducing the risk of interference.
Wide Operating Temperature Range: The module operates reliably within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial settings.
3BDH000730R1
Typical Application Scenarios
The ABB 3BDH000730R1 is widely used in various industrial sectors, including:
-
Industrial Automation: For process control and machine control applications.
-
Building Automation: For controlling lighting, ventilation, and other building systems.
-
Power Generation: For monitoring and controlling power generation processes.
Related Model Recommendations
-
3BDH000730R1-4: A variant with different specifications, suitable for specific applications.
-
3BDH000730R1-2: Another variant with additional features and improved performance.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BDH000730R1 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
