Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1TGE120021R0610 |
| Manufacturer | ABB |
| Product Category | Communication Gateway |
| Communication Protocols | Modbus TCP, Modbus RTU/TCP, PROFINET IO |
| Operating Voltage | 24V DC |
| Power Consumption | ≤220W |
| Protection Level | IP20 |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 150 mm × 100 mm × 50 mm |
| Weight | 0.45 kg |
| Certifications | CE, RoHS, IEC 61131-2 compliant |

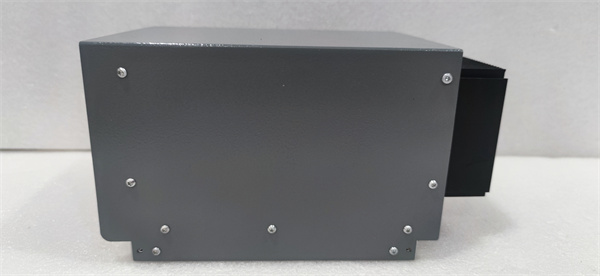

ABB 1TGE120021R0610
Product Introduction
The ABB 1TGE120021R0610 is a high-performance communication gateway designed for industrial automation systems. It facilitates seamless data exchange between different devices and control systems, ensuring efficient and reliable communication.
Core Advantages and Technical Highlights
Multi-Protocol Support: The 1TGE120021R0610 supports multiple industrial communication protocols, including Modbus TCP, Modbus RTU/TCP, and PROFINET IO, enabling seamless integration with various devices and systems.
High Reliability: The module is designed for harsh industrial environments, with an IP20 protection level and an operating temperature range of -40°C to +85°C.
Flexible Configuration: The gateway supports modular expansion and can be easily integrated into existing systems, providing a high degree of flexibility.
Remote Monitoring and Diagnosis: The module supports remote device monitoring and fault diagnosis, improving maintenance efficiency and reducing downtime.

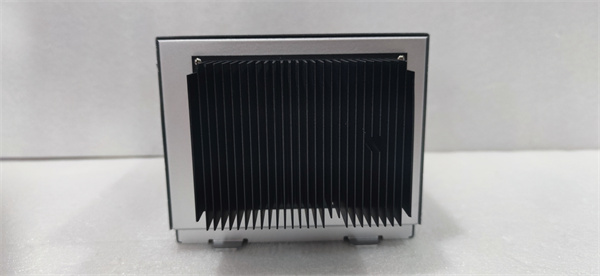

ABB 1TGE120021R0610
Typical Application Scenarios
The ABB 1TGE120021R0610 is widely used in various industrial sectors, including:
-
Industrial Automation: For connecting PLCs, sensors, actuators, and other equipment to achieve collaborative control of production processes.
-
Process Control: In chemical and petrochemical engineering, for real-time monitoring and control of equipment such as reactors, pumps, and valves.
-
Energy Management: For remote monitoring and control of power grids, transmission, and distribution systems.
-
Building Automation: Integrating HVAC, lighting, power management, and safety monitoring systems to enhance building intelligence.
Related Model Recommendations
-
1TGE120021R0110: A similar module with slightly different communication protocols, suitable for specific applications.
-
1TGE120021R0010: Another communication gateway with different protocol support, suitable for less complex systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 1TGE120021R0610 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
