Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | XVC768AE101 |
| Manufacturer | ABB |
| Product Category | Communication Interface Module |
| Series | AC 800M High Performance |
| Interface Type | Profibus DP-V1 Slave |
| Data Transfer Rate | 9.6 kbps – 12 Mbps (auto-negotiating) |
| Protocol Support | Profibus DP, FDL, FMS, FDL/DP-Mix |
| Number of Connections | 1 x Profibus (9-pin D-sub) |
| Isolation | 1500 V AC (field-to-system) |
| Configuration | Via GSD file in Control Builder M |
| Diagnostics | Integrated LED status indicators |
| Hot-Swap Support | Yes (in redundant configurations) |
| Power Consumption | 1.8 W (typical) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL, ATEX/IECEx (Zone 2) |

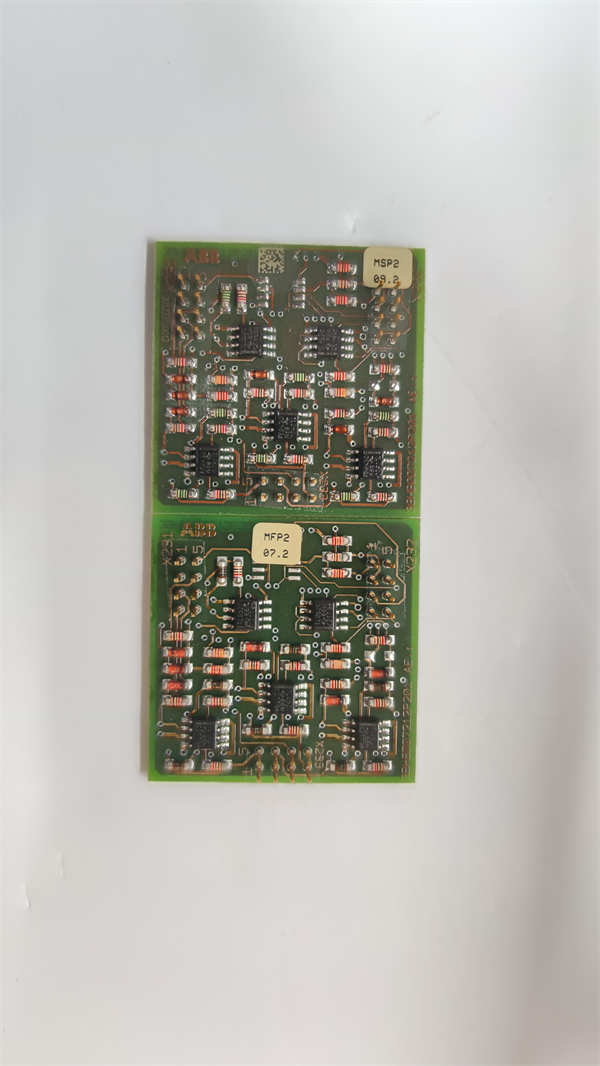

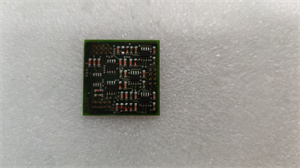

ABB XVC768AE101
Product Introduction
The ABB XVC768AE101 is a high-performance Profibus DP-V1 slave communication module designed for ABB’s AC 800M controller family. This critical interface enables seamless integration between AC 800M systems (e.g., PM865 controllers) and Profibus DP field networks, supporting real-time data exchange with sensors, drives, and remote I/O stations. As part of ABB’s High Performance series, the XVC768AE101 delivers deterministic communication essential for process synchronization and distributed control architectures.
Engineered for mission-critical applications, the module operates as a certified Profibus DP-V1 slave with full support for advanced functions like acyclic data exchange, alarm handling, and slave-to-slave communication. Its technical positioning targets large-scale industrial automation in power generation, oil & gas, and manufacturing where interoperability with third-party Profibus devices is paramount. The ABB XVC768AE101 integrates natively with ABB’s Control Builder M engineering environment, enabling plug-and-play configuration through standard GSD files.
Core Advantages and Technical Highlights
The ABB XVC768AE101 excels in demanding industrial networks through these innovations:
Deterministic Performance: Supports Profibus DP at 12 Mbps with hardware-assisted protocol processing, ensuring jitter-free communication for time-critical applications like motion control.
Advanced Diagnostics: Integrated LEDs provide real-time status for power, bus activity, and errors. Detailed diagnostics accessible via Control Builder M identify faults at device/module level.
Hot-Swap Capability: Modules can be replaced in redundant AC 800M racks without process interruption, critical for continuous operations in refineries or power plants.
Robust Electrical Design: 1500 V AC galvanic isolation and surge protection (IEC 61000-4-5) shield the control system from field-side electrical noise.
V1 Protocol Features: Supports Profibus DP-V1 enhancements including parameterization via GSD, alarm handling, and non-cyclic data access for advanced device configuration.
Hazardous Area Certification: ATEX/IECEx Zone 2 compliance enables deployment in explosive atmospheres without external isolators.
Typical Application Scenarios
Power Plant Control Systems: Integrates turbine governors (XVC768AE101) with Profibus-connected exciters and protection relays, enabling synchronized control at 12 Mbps.
Automotive Manufacturing: Connects AC 800M controllers to robotic cells (KUKA/ABB robots), weld controllers, and conveyor drives via Profibus DP for coordinated assembly.
Oil & Gas Compressor Stations: Interfaces with Profibus-enabled vibration monitors (e.g., Bently Nevada 3500) and turbine control systems for real-time machinery protection.
Cement Plant Automation: Synchronizes kiln drives, weigh feeders, and hydraulic units across multi-kilometer Profibus networks with deterministic data exchange.
Pharmaceutical Batch Processes: Enables GMP-compliant data collection from smart instruments (flow meters, valves) via Profibus PA linking devices.

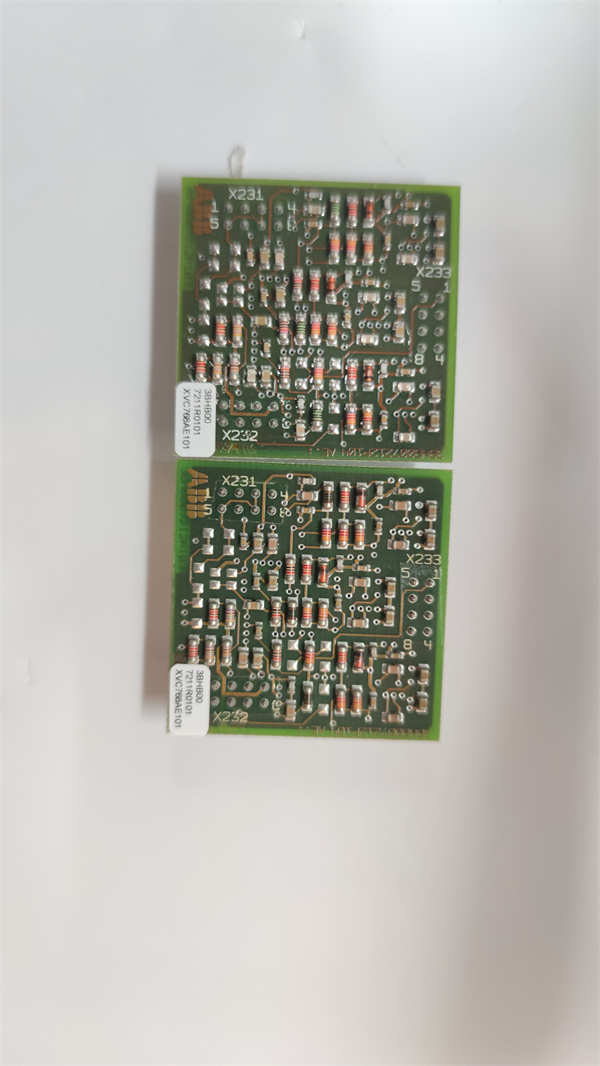

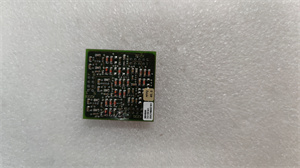

ABB XVC768AE101
Related Model Recommendations
CI854A: Profibus DP Master module for AC 800M; controls XVC768AE101 slave devices.
PM865: High-performance controller; hosts the XVC768AE101 in AC 800M racks.
SD822: S800 Profibus DP slave interface; alternative for remote I/O applications.
SA801F: AC 800M baseplate for mounting XVC768AE101.
XVC768RE101: Redundant version of XVC768AE101 for fault-tolerant systems.
KVC758A: Communication termination unit for Profibus networks.
PP875: Power supply module for AC 800M racks hosting XVC768AE101.
TA-PB…: Profibus connector kits for field cabling.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Mount ABB XVC768AE101 vertically in SA801F/SA811 baseplate. Verify Profibus segment length ≤ 100m (12 Mbps) or 1200m (93.75 kbps). Use shielded twisted-pair cables (A/B lines) with 90Ω impedance. Install terminating resistors at both ends. Apply ESD protection during handling.
Maintenance Suggestions: Monitor Profibus diagnostics monthly via Control Builder M. Clean D-sub connectors annually with contact spray. Replace modules showing “BUSF” LED errors after verifying cabling integrity. Update GSD files quarterly for new field devices. For redundant systems, test hot-swap functionality during planned shutdowns.
Service and Guarantee Commitment
ABB provides 18-month warranty for XVC768AE101. Global support includes:
• 24/7 access to GSD files and firmware updates
• Profibus conformance test reports (PNO certified)
• Migration services from legacy Profibus modules
• Extended warranties with 48-hour replacement SLA
• Lifetime repair support (10+ years spare availability)
ATEX/IECEx certifications maintained through annual audits. Compliance with Profibus Class 1 Master (IEC 61158/61784) ensures interoperability.
