Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB XVC768115 3BHB007211R115 |
| Manufacturer | ABB |
| Product Category | Drive Control Board (Part of ACS 800 Series) |
| Compatible Drive | ACS 800 Industrial Drive |
| Input Voltage | 24V DC (±10%) |
| Communication | DCS/PLC Interface (Fieldbus Options) |
| Protection Rating | IP20 (For Control Cabinet Use) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Certifications | CE, UL, cUL, RoHS |
XVC768115 3BHB007211R115
Product Introduction

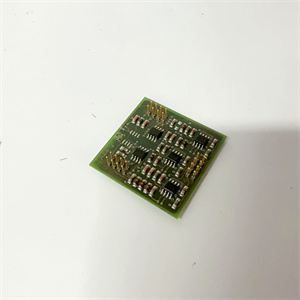

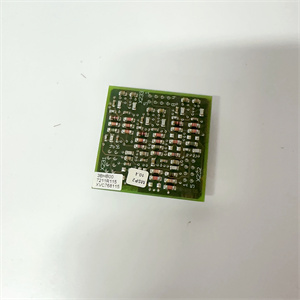

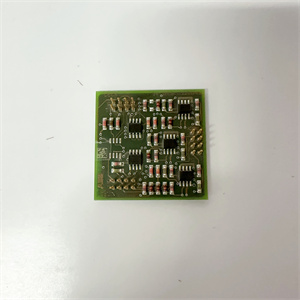

The ABB XVC768115 3BHB007211R115 is a drive control board designed for ABB’s ACS 800 series of industrial variable frequency drives (VFDs). This critical component ensures precise motor control, system diagnostics, and communication interfacing between the drive and higher-level automation systems (DCS/PLC).
Engineered for high reliability, this control board supports real-time motor parameter monitoring, fault diagnostics, and seamless integration with fieldbus networks (e.g., PROFIBUS, Modbus). It is widely used in industries requiring robust motor control solutions, such as mining, oil & gas, and heavy manufacturing.
Core Advantages and Technical Highlights
1. High-Performance Motor Control
Enables smooth acceleration/deceleration of AC motors.
Supports sensorless vector control for improved torque accuracy.
2. Advanced Diagnostics & Protection
Real-time monitoring of motor current, voltage, and temperature.
Fault logging for predictive maintenance and troubleshooting.
3. Seamless Automation Integration
Compatible with PROFIBUS DP, Modbus RTU/TCP, and other fieldbus protocols.
Supports ABB’s Drive Composer software for easy parameterization.
4. Robust Industrial Design
IP20 protection for control cabinet installations.
Wide temperature tolerance (0°C to +55°C) for harsh environments.
Typical Application Scenarios
The ABB XVC768115 3BHB007211R115 is deployed in:
Mining & Minerals: Conveyor belt speed control, crusher motor drives.
Oil & Gas: Pump and compressor motor control.
Water/Wastewater: Variable-speed pump control.
Cement & Heavy Industries: Fan and kiln drive systems.
Marine & Offshore: Winch and propulsion motor control.
In these applications, the board ensures energy-efficient motor operation, reduced mechanical stress, and extended equipment lifespan.
XVC768115 3BHB007211R115
Related Model Recommendations
ABB XVC768102 – Alternative control board for ACS 800 drives.
ABB ACS880-01 – Next-gen drive controller with enhanced features.
ABB NDPP-03C – Power supply module for drive systems.
ABB SDCS-IOB-1 – I/O extension board for drive control.
ABB 3BHE039203R0101 – Redundant control module for critical applications.
Installation, Commissioning & Maintenance
Installation Preparation
Ensure proper ESD handling during installation.
Verify 24V DC power supply stability before power-up.
Follow ABB ACS 800 hardware manual for correct mounting.
Maintenance Suggestions
Regularly check for firmware updates via Drive Composer.
Monitor fault logs for early detection of issues.
Inspect connections for corrosion or loose terminals.
Service & Warranty Commitment
ABB provides a 24-month warranty for the ABB XVC768115 3BHB007211R115, covering manufacturing defects. Additional support includes:
Global technical assistance for troubleshooting.
On-site drive commissioning services.
Firmware and software updates for performance optimization.
Conclusion
The ABB XVC768115 3BHB007211R115 is a critical component for ACS 800 drive systems, delivering precise motor control, diagnostics, and automation integration. Its robust design and fieldbus compatibility make it ideal for heavy industrial applications.
For optimal performance, follow ABB’s installation guidelines and leverage ABB Drive Support Services for maintenance.
