Description
Product Core Brief
- Model:
- Order Code: 3BHE029153R0101
- Brand: ABB
- Product Type: Plug-in control / communication interface module for ABB cabinet systems
- Core Function: Provides system bus communication, I/O signal handling, or interface functions inside ABB control/excitation cabinets
- Key Specs: Rack-mounted plug-in board | Backplane-powered design | Status LEDs for diagnostics | Industrial-grade PCB assembly
- Condition: New Original / New Surplus
Key Technical Specifications
- Part Number:
- ABB Order Code: 3BHE029153R0101
- Manufacturer: ABB
- Product Category: Industrial control board / cabinet interface module
- Application: ABB excitation cabinets, generator control panels, industrial automation cabinets, power generation, marine, oil & gas, metals, mining, pulp & paper
- Core Role: Interfaces with ABB system buses and conditioned signals; supports diagnostics, communication, and I/O handling within the cabinet
- Power Supply: Supplied via system backplane; typically 24 VDC input with on-board regulation, system-dependent
- Installation: Rack-mounted plug-in card, secured with front-panel screws; wiring through backplane or terminal blocks
- Diagnostics: Front LEDs / test points for commissioning and fault tracing
- Operating Temperature: Typically 0 to +55 °C in cabinet environment; some listings state -25 to +55 °C, subject to revision and site procedure
- Protection Class: IP20, suitable for control cabinet installation
- Lifecycle Status: Availability depends on surplus stock; official ABB lifecycle should be confirmed by order code
- Condition: New / New Surplus
- Warranty: Up to 12 months, supplier-dependent
Product Introduction

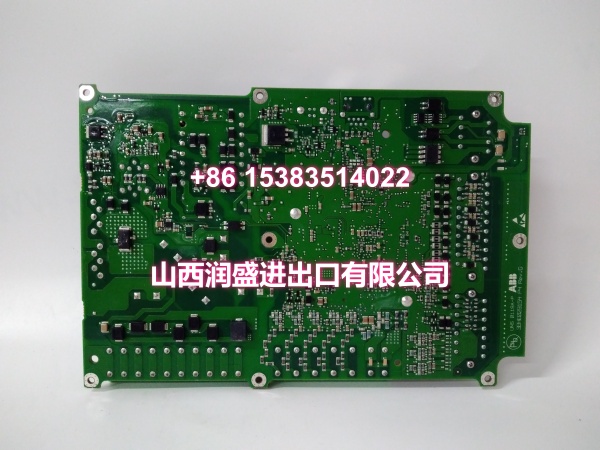

The ABB UNS0119A-P V101 is a plug-in control or communication interface module used in ABB cabinet systems. It is typically installed in excitation cabinets, generator control panels, or industrial automation racks, where it handles system bus communication, signal conditioning, and diagnostic functions. The board is powered through the system backplane, which helps reduce field wiring during replacement and supports faster maintenance response.
For maintenance teams, system integrators, and MRO procurement, this module is usually sourced as a verified spare to restore cabinet functions when a failed board causes communication loss, I/O errors, excitation cabinet alarms, or system diagnostics faults. Because ABB uses similar UNS-style order codes across different cabinet families, the full order code and hardware revision must be matched before replacement.
QA & Testing SOP
- Label verification. Confirm UNS0119A-P, V101, and 3BHE029153R0101 on the ABB nameplate. Check for revision marks such as REV.G if present on the PCB.
- Visual inspection. Inspect the PCB, connectors, front panel, and solder joints for corrosion, burnt components, cracked pins, or rework marks.
- Backplane compatibility check. Verify that the module fits the installed ABB rack and that the backplane connector type matches the original board.
- Power-up test. Insert the board into the correct slot and apply cabinet power per site procedure. Confirm normal LED indications and no abnormal heating.
- Communication and I/O check. Verify system bus communication, module recognition, and I/O status where testable.
- Parameter and firmware check. If the module supports configuration, confirm that firmware and parameters match the existing cabinet setup.
- ESD and mechanical protection. Handle the PCB with ESD-safe tools and protect connectors during storage and shipping.
Installation Pitfalls & Guide
❗ Match the full order code. UNS0119A-P V101 alone is not enough. The 3BHE order code must match the failed module.
❗ Do not confuse with UNITROL 1010 AVR. This is a cabinet plug-in module, not a standalone generator AVR. It should not be used as a direct replacement for UNITROL 1010.
❗ Confirm rack and slot position. Install only into the designated slot. Wrong slot placement may cause communication faults or incorrect I/O mapping.
❗ Power down before replacement unless approved. Follow plant safety procedures before removing or inserting backplane-powered modules.
Replacement steps:
- Record the original slot position, LED status, alarm codes, and configuration.
- De-energize the cabinet or follow approved hot-swap procedures.
- Remove the failed module and inspect the backplane connector.
- Install the replacement UNS0119A-P V101 and secure the front-panel screws.
- Power up, verify communication, clear alarms, and confirm normal operation.
Technical FAQ
Is this a UNITROL 1010 AVR?
No. UNS0119A-P V101 is a cabinet plug-in control or communication interface module. UNITROL 1010 is a standalone automatic voltage regulator. They are not interchangeable.
What is the correct order code?
The commonly referenced order code is 3BHE029153R0101. Always confirm this against the physical nameplate before ordering.
Can it be used as a direct replacement?
Only if the order code, hardware revision, firmware, slot position, and cabinet configuration match. Cabinet modules must be verified under supervised commissioning.
What is the warranty?
Typically up to 12 months from acceptance, depending on supplier terms.
Do you offer bulk or repeat-order pricing?
Yes. Pricing can be adjusted for volume, repeat procurement, or long-term spare parts agreements. Send the full order code, revision, and quantity for a quote.
