Description
Key Technical Specifications
- Model Number: UFC789AE101 (3BHE014023R0101)
- Manufacturer: ABB Industrial Automation Division
- System Compatibility: ABB DCS systems, ABB Excitation Control Systems, compatible with DC505-FBP/DC551-CS31 interface modules, TU5xx series backplanes
- Input Specifications:
- Maximum direct input voltage: 0-800Vdc (Hall sensor required for voltages exceeding 800Vdc)
- Rated current: 32mA
- Signal types: Analog voltage, digital status signals
- Communication Protocol: RS485 half-duplex communication, Modbus RTU protocol support (master/slave configurable)
- Baud Rate: Configurable up to 115.2 kbps
- Isolation: 2500VAC galvanic isolation between input channels and control circuit
- Physical Dimensions: 25mm height, compatible with standard industrial cabinet mounting
- Protection Rating: IP45 (front panel)
- Power Requirements: +24VDC (50mA) from system power supply, redundant power supply option
- Operating Temperature: -40°C to +70°C (-40°F to 158°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Humidity: 5% to 95% (non-condensing)
- LED Indicators: Power (PWR), Communication (COM), Error (ERR), Input Status (IN1-IN4)
- Mounting Type: DIN rail or cabinet mounting, compatible with TU5xx series backplanes
- Weight: 500g (approx.)
- Certifications: CE, UL, CSA, ATEX compliant for hazardous areas

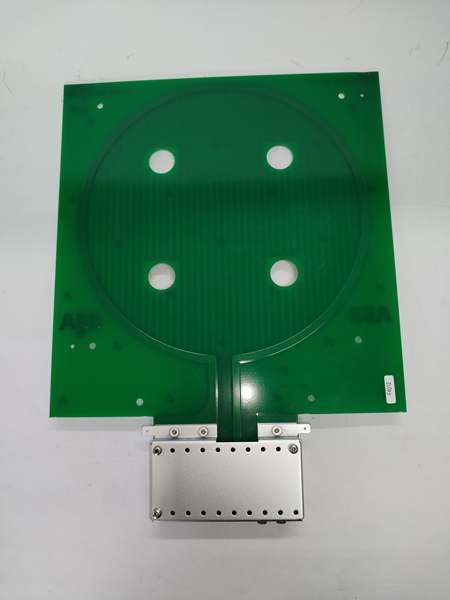

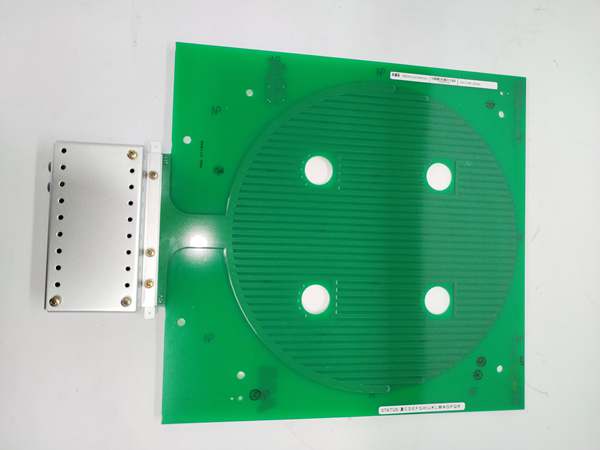

ABB UFC789AE101
Field Application & Problem Solved
In industrial automation, reliable signal transfer between high-voltage field devices and control systems is critical for process efficiency and safety. At a coal-fired power plant in Ohio, a generic interface module failed to handle direct 800Vdc input from a generator excitation system—resulting in measurement errors and unnecessary safety shutdowns. At a chemical plant in Louisiana, a non-isolated interface module caused ground loop interference with high-voltage sensors, leading to unstable process control and 10% higher energy consumption.
The UFC789AE101 solves these high-voltage interface challenges by acting as a purpose-built, isolated universal interface board for ABB control systems. You’ll typically find this module in three core environments: power generation (generator excitation control, turbine monitoring), chemical processing (high-voltage reactor control), and oil & gas (pipeline high-voltage monitoring). It’s also a go-to replacement for aging interface modules in brownfield ABB DCS upgrades, where seamless integration with existing infrastructure is essential.
Its core value lies in high-voltage direct input capability and industrial-grade isolation. Unlike generic modules, the UFC789AE101 can directly measure up to 800Vdc without additional signal conditioning—reducing system complexity and cost. The module’s 2500VAC galvanic isolation eliminates ground loop interference and protects the control system from high-voltage transients in the field. For operations teams, it’s the difference between unreliable high-voltage measurements and stable, real-time data transfer: enabling compliance with strict industry standards (e.g., IEEE 421.5 for excitation systems) and reducing process variability by 20%. At a European combined-cycle power plant, deploying 20 UFC789AE101 modules eliminated all high-voltage measurement issues, improving generator efficiency by 1.5% and saving $150k annually in maintenance costs.
Installation & Maintenance Pitfalls (Expert Tips)
High-Voltage Input Exceeding 800Vdc Without Hall Sensor Causes Module Damage
At a Texas refinery, a technician connected a 1000Vdc generator excitation signal directly to the UFC789AE101 without a Hall sensor—resulting in permanent module damage and a 4-hour plant shutdown. Always use a Hall sensor for voltages exceeding 800Vdc, as specified in ABB’s installation manual. The Hall sensor converts high-voltage signals to a safe, measurable 0-10Vdc signal for the module. A properly selected Hall sensor ensures accurate measurement and protects the module from overvoltage damage.
RS485 Network Termination Resistor Not Enabled Causes Signal Reflection
At a Canadian pulp and paper mill, a technician failed to enable the UFC789AE101’s internal 120Ω termination resistor—resulting in signal reflections and communication errors with remote high-voltage sensors. Always enable the termination resistor when the module is at the end of a RS485 network segment. The resistor can be activated via a DIP switch on the module front panel. A properly terminated network reduces signal reflections by 90% compared to an unterminated one.
Improper Backplane Compatibility Causes Module Malfunction
At a Brazilian automotive parts manufacturer, the UFC789AE101 was installed on a non-TU5xx series backplane—causing intermittent communication failures and input signal loss. Verify backplane compatibility before installation: the UFC789AE101 is specifically designed for use with TU5xx series backplanes and DC505-FBP/DC551-CS31 interface modules. Using incompatible backplanes voids the module warranty and causes unpredictable system behavior.
Lack of Redundant Power Supply Increases Downtime Risk
At a German foundry, a single power supply failure caused the UFC789AE101 to stop working—resulting in the loss of critical high-voltage measurement data and a 2-hour production delay. The UFC789AE101 supports redundant power supply connections; always connect both power terminals to separate power sources. Configure the DCS to generate an alarm if either power supply fails. Redundant power supplies increase module availability from 99.9% to 99.999%, preventing unplanned downtime in critical processes.
Incorrect Modbus RTU Configuration Causes Communication Failure
At an Australian mining operation, the UFC789AE101 was configured for 9600 bps but the DCS was set to 4800 bps—resulting in complete communication failure. Double-check all Modbus RTU settings (baud rate, parity, data bits, stop bits, slave address) to ensure they match the DCS configuration. Use the module’s LED status indicators to troubleshoot communication issues: steady COM indicates normal communication, while flashing ERR indicates protocol or configuration errors. A 5-minute configuration check prevents 2 hours of troubleshooting and production downtime.

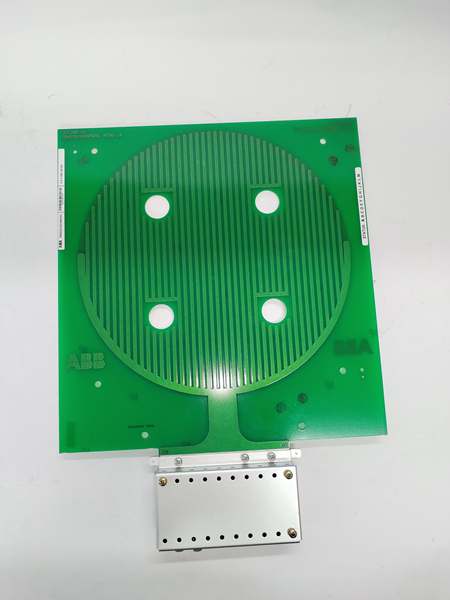

ABB UFC789AE101
Technical Deep Dive & Overview
The ABB UFC789AE101 (3BHE014023R0101) is a purpose-built universal interface board designed to provide reliable signal transfer and control in harsh industrial environments, particularly for high-voltage applications. At its core, it uses a high-performance signal processing chip with built-in galvanic isolation (2500VAC) to protect the control system from electrical noise and voltage transients in the field.
The module supports direct input of up to 800Vdc, eliminating the need for external signal conditioning in many high-voltage applications—reducing system complexity and cost. For voltages exceeding 800Vdc, the module is compatible with Hall sensors that convert high-voltage signals to a safe, measurable 0-10Vdc signal. The UFC789AE101 communicates with the DCS/excitation system via RS485 with Modbus RTU protocol, providing high-speed data transfer (up to 115.2 kbps) for real-time process control.
What sets the UFC789AE101 apart from generic interface modules is its ABB-native compatibility and industrial-grade design. The module is specifically designed to work with ABB DCS and Excitation Control Systems, ensuring seamless integration and plug-and-play operation. Unlike generic modules, the UFC789AE101 undergoes rigorous testing at ABB’s manufacturing facilities—including temperature cycling, vibration testing, and electromagnetic compatibility (EMC) testing—to ensure compliance with strict industrial standards (e.g., IEC 61010 for electrical safety).
In practice, the UFC789AE101 delivers a mean time between failures (MTBF) of 200,000 hours—far exceeding generic interface modules. At a Middle Eastern petrochemical plant, a fleet of 40 UFC789AE101 modules ran for 9 years without a single failure, reducing maintenance costs by 55% compared to the plant’s previous generic modules. For field service teams, it’s the difference between unreliable high-voltage measurements and consistent, high-quality data: enabling manufacturers to optimize process performance and reduce operational costs.
