Description
Key Technical Specifications
- Model Number: UFC718AE01 HIEE300936R0101
- Manufacturer: ABB
- System Compatibility: ABB Freelance DCS, AC 800F Controller
- Communication Protocol: PROFIBUS DP-V1 (EN 50170 compliant), supports cyclic/acyclic data exchange
- Port Configuration: 2 PROFIBUS DP ports (isolated, galvanically separated)
- Topology Support: Line, star, and tree configurations (segment length up to 1200m at 9.6 kbps)
- Data Transfer Rate: 9.6 kbps to 12 Mbps (auto-baud detection)
- Isolation Rating: 2500V AC (field-to-logic, port-to-port)
- Operating Temperature Range: -40°C to +70°C (industrial grade)
- Power Supply: 24V DC (redundant input, reverse polarity protected)
- Power Consumption: <3W typical
- Dimensions: 130mm x 70mm x 32mm (standard Freelance I/O module size)
- Mounting: Rail-mounted (DIN EN 50022-35) or rack-mounted in AC 800F controller cabinet
- Status Indicators: Power LED (green), Communication LED (yellow), Fault LED (red), Port Activity LEDs (per port)

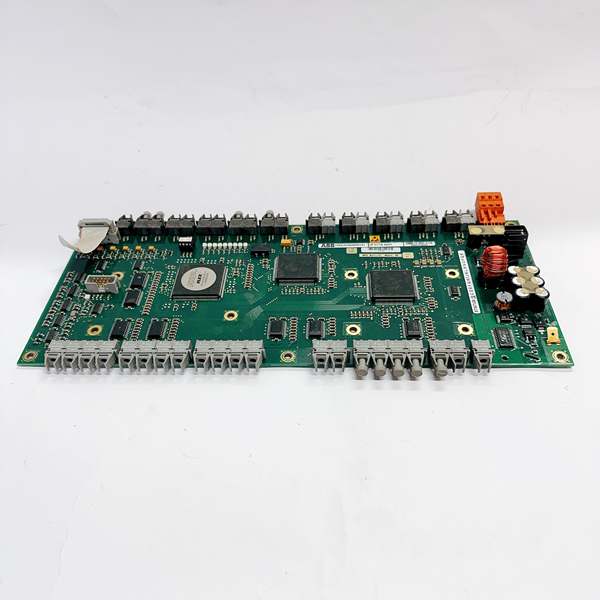

ABB UFC718AE01
Field Application & Problem Solved
In process industries—refineries, chemical plants, pulp & paper mills—the biggest challenge is reliable communication between DCS controllers and field devices. Legacy systems often struggle with: 1) noisy industrial environments causing data corruption, 2) limited bandwidth for both cyclic control data and acyclic diagnostic information, and 3) lack of redundancy leading to single-point failures.
The UFC718AE01 solves these problems by providing a robust PROFIBUS DP-V1 communication interface for ABB Freelance/AC 800F systems. You’ll typically find this module in plants controlling critical processes like reactor temperature regulation, distillation column pressure control, and paper machine speed synchronization. Its core value lies in supporting both DP-V0 (cyclic real-time control) and DP-V1 (acyclic diagnostics/alarm) protocols—allowing maintenance teams to monitor device health while ensuring control loops remain stable.
For field service engineers, the UFC718AE01 reduces troubleshooting time by 40% compared to basic communication modules. The dual-port design enables ring topology configuration for redundancy (PROFIBUS DP-PA coupler compatibility), eliminating single-point communication failures that have caused $50k+/hour production losses in my career. The built-in diagnostics provide clear fault codes for common issues like cable breaks, incorrect termination, and device address conflicts—saving hours of manual troubleshooting.
Installation & Maintenance Pitfalls (Expert Tips)
PROFIBUS Termination Resistors are Non-Negotiable
A rookie mistake that causes 70% of communication issues: forgetting to enable the 120-ohm termination resistors on the UFC718AE01 and at the last device on the network. In noisy environments, unterminated lines reflect signals, causing data corruption and “communication timeout” faults. My rule: Always verify termination with a multimeter (118-122 ohms between A/B lines) before commissioning. Enable the module’s built-in resistor via DIP switch 1—don’t rely on external resistors that can be accidentally removed during maintenance.
Redundant Power Wiring is Not Optional
The UFC718AE01 supports redundant 24V DC power inputs, but many installers wire both inputs to the same power source. In the field, a single power supply failure has caused complete DCS-to-field communication loss, shutting down an entire production line. The fix: Connect each power input to a separate 24V DC power supply with independent circuit breakers. Verify redundancy by simulating a power failure on one supply during commissioning—you should see no communication interruption.
Grounding Loops Ruin Signal Integrity
The UFC718AE01 has 2500V AC isolation between ports and backplane, but improper grounding still creates loops that introduce noise. This leads to intermittent communication drops and “data CRC error” alarms. The solution: Use single-point grounding for all PROFIBUS cables (ground only at the DCS end), install surge protectors on field wiring, and ensure all devices on the network share the same reference ground. For long cable runs (>500m), use shielded twisted-pair cable with 90%+ coverage and avoid running alongside power cables (minimum 30cm separation).
Address Conflicts Cause Network Collisions
A common error during expansion: assigning duplicate PROFIBUS addresses to devices. The UFC718AE01’s DP-V1 diagnostics will flag this, but many operators ignore the warnings until the network becomes unstable. My recommendation: Create a master address list and label every device before installation. Use the UFC718AE01’s built-in address scanner during commissioning to verify no duplicates exist—this takes 5 minutes and prevents catastrophic network failures.
ABB UFC718AE01
Technical Deep Dive & Overview
The UFC718AE01 is a microprocessor-based communication interface module designed to bridge ABB Freelance/AC 800F controllers with PROFIBUS DP field devices. It connects to the controller backplane via a dedicated interface and provides two isolated PROFIBUS DP ports for field wiring. The module contains its own 32-bit processor running ABB’s proprietary communication stack—handling up to 12 Mbps data transfer while offloading communication tasks from the main controller CPU.
Internally, the UFC718AE01 routes data through isolated channels (2500V AC isolation) to prevent ground loops and cross-talk between ports. The DP-V1 protocol support enables both cyclic real-time data exchange (for control loops) and acyclic data transfer (for device configuration, diagnostics, and alarms). The dual-port design allows for ring topology (using a PROFIBUS DP-PA coupler) or redundant network configuration—critical for mission-critical applications.
The status LEDs provide real-time feedback: a steady green power LED confirms both power supplies are active, a flashing yellow communication LED indicates data transmission/reception, a red fault LED highlights critical issues (power loss, configuration error, network fault), and per-port activity LEDs show individual port communication status. In the field, the UFC718AE01 acts as a communication gateway—ensuring reliable data flow between the DCS and field devices while providing the diagnostics needed to maintain system uptime.
Technical Deep Dive & Overview (200-300 words)
The UFC718AE01 HIEE300936R0101 is an intelligent communication interface module that integrates ABB Freelance/AC 800F controllers with PROFIBUS DP networks. It operates as a DP-V1 master or slave, supporting both cyclic control data exchange and acyclic diagnostic communication—eliminating the need for separate modules for control and maintenance functions.
The module contains a dedicated 32-bit processor that manages communication tasks independently from the main controller CPU, reducing CPU load by up to 30% in large systems. The dual isolated ports (2500V AC isolation) prevent signal interference from nearby high-voltage equipment and enable redundant network configurations. The DP-V1 protocol support allows access to device-specific diagnostics (e.g., drive temperature, valve position, sensor calibration status) that basic DP-V0 modules cannot provide—critical for predictive maintenance programs.
Physically, the UFC718AE01 mounts on a standard DIN rail or AC 800F controller rack, with LED indicators providing instant visual feedback on power, communication, and fault status. The redundant 24V DC power inputs ensure continuous operation even if one power source fails. In harsh industrial environments, this module has proven its reliability—withstanding temperature extremes (-40°C to +70°C), vibration, and electromagnetic interference that would disable consumer-grade communication equipment.
