Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | UAD149A0011 |
| Manufacturer | ABB |
| Product category | Analog input module |
| Number of channels | 8 differential analog inputs |
| Input signal range | 4-20 mA, 0-10 V DC, ±5 V DC (configurable per channel) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale (at 25°C) |
| Sampling rate | 100 samples/second per channel |
| Isolation | 2.5 kV AC (channel to backplane) |
| Operating voltage | 24 V DC ±10% |
| Operating temperature range | -40°C to +70°C (-40°F to +158°F) |
| Dimensions (LxWxH) | 120 mm x 80 mm x 100 mm (4.72 in x 3.15 in x 3.94 in) |
| Protection rating | IP20 |
| Compatibility | ABB AC 800M controllers, S800 I/O system |
| Installation type | DIN rail mounting (35 mm) |
| Certification | IEC 61131-2, CE, UL, ATEX, IECEx |

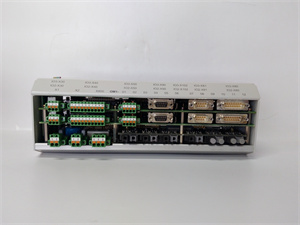

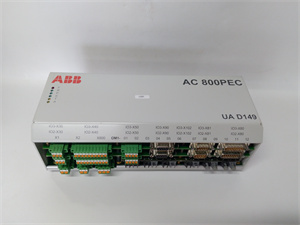

ABB UAD149A0011
Product introduction
The ABB UAD149A0011 is a high-precision analog input module designed for industrial automation systems, part of ABB’s S800 I/O family—renowned for seamless integration with AC 800M controllers. This module converts analog signals from sensors and transducers into digital data, enabling precise monitoring of process variables in critical applications.
ABB UAD149A0011 features 8 configurable channels that accept a range of input signals, including 4-20 mA, 0-10 V DC, and ±5 V DC, making it versatile for connecting temperature sensors, pressure transducers, flow meters, and other analog devices. As a key component in distributed control systems (DCS), ABB UAD149A0011 ensures accurate data acquisition, supporting real-time process control and optimization in industries such as chemical processing, oil and gas, and power generation. Its robust design and high accuracy make it a reliable choice for applications where measurement precision directly impacts product quality and operational safety.
Core advantages and technical highlights
Superior measurement accuracy: ABB UAD149A0011 delivers ±0.1% full-scale accuracy at 25°C, with minimal drift over temperature variations (-40°C to +70°C). This precision ensures reliable data for critical control loops, such as maintaining pressure in chemical reactors or regulating flow rates in pipeline systems.
Channel flexibility: Unlike fixed-range modules, ABB UAD149A0011 allows each channel to be individually configured for different signal types (current or voltage) via software. This eliminates the need for multiple module types, reducing inventory costs and simplifying system design for mixed-signal applications.
High-speed data acquisition: With a sampling rate of 100 samples per second per channel, ABB UAD149A0011 captures rapid process changes, making it suitable for dynamic applications like batch processing or transient event monitoring. Fast sampling ensures no critical data is missed during sudden process fluctuations.
Enhanced electrical isolation: Equipped with 2.5 kV AC isolation between channels and the backplane, ABB UAD149A0011 protects sensitive control systems from ground loops, voltage spikes, and electromagnetic interference (EMI). This isolation is critical in harsh industrial environments with high electrical noise, such as near large motors or welding equipment.
Typical application scenarios
In chemical processing plants, ABB UAD149A0011 connects to pH sensors, conductivity meters, and temperature transmitters in reactor vessels. Its high accuracy ensures precise monitoring of reaction conditions, while configurable channels allow mixing 4-20 mA signals (from pressure sensors) and 0-10 V signals (from level transmitters) on the same module. This flexibility simplifies wiring and reduces the number of modules needed in control cabinets.
Within oil and gas production facilities, ABB UAD149A0011 monitors pipeline pressure, flow rates, and temperature via analog transducers. Its wide operating temperature range (-40°C to +70°C) ensures reliable performance in both indoor control rooms and outdoor wellhead installations. The module’s fast sampling rate captures pressure surges during valve operations, enabling rapid response from the AC 800M controller to prevent overpressure incidents.
In power generation plants, ABB UAD149A0011 acquires data from turbine vibration sensors, generator temperature probes, and steam flow meters. Its 2.5 kV isolation protects the DCS from electrical noise generated by high-voltage equipment, ensuring stable operation of control systems that regulate turbine speed and boiler efficiency.

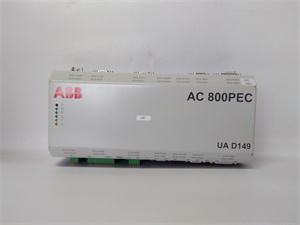

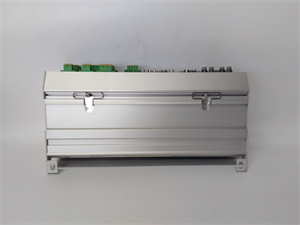

ABB UAD149A0011
Related model recommendations
ABB UAO148A0011: Analog output module that complements ABB UAD149A0011, providing 8 channels for 4-20 mA or 0-10 V control signals to valves, variable speed drives, and actuators.
ABB UDI142A0011: Digital input module compatible with ABB UAD149A0011, adding 16 channels for connecting limit switches, emergency stops, and status indicators.
ABB PM866K01: High-performance AC 800M controller that pairs seamlessly with ABB UAD149A0011 to process analog data and execute control algorithms.
ABB TB820 3BSE008546R1: Terminal base for ABB UAD149A0011, providing secure wiring connections and mechanical support in S800 I/O racks.
ABB UAD141A0011: 4-channel analog input module with similar specifications to ABB UAD149A0011, ideal for smaller systems with fewer analog devices.
ABB CI854 3BSE022449R1: Communication module that enables ABB UAD149A0011 to transmit data to remote monitoring systems via PROFINET.
ABB 800xA I/O Configuration Tool: Software for configuring channel settings, calibration, and diagnostics of ABB UAD149A0011 within the AC 800M system.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing ABB UAD149A0011, ensure the DIN rail is securely mounted in a dust-free enclosure with ambient temperature between -40°C and +70°C. Required tools include a torque wrench (set to 0.5 Nm for terminal connections), wire strippers, and an insulation tester. Use shielded twisted-pair cables for analog signals to minimize EMI, and route them separately from power cables. Verify that the 24 V DC power supply is properly grounded and protected by a 1A fuse. Allow 20 mm clearance around the module for ventilation.
Maintenance suggestions: For ABB UAD149A0011, perform quarterly visual inspections to check for loose connections or corrosion on terminals. Calibrate the module annually using a certified signal generator to maintain ±0.1% accuracy—this is critical for applications requiring regulatory compliance. Clean dust from ventilation slots using compressed air (max 5 bar) every 6 months. If a channel shows drift beyond specifications, check for damaged cables or sensor issues before replacing the module. When replacing ABB UAD149A0011, use ABB’s configuration software to transfer channel settings, ensuring consistency with the rest of the system.
Service and guarantee commitment
ABB UAD149A0011 is backed by a 3-year warranty from the date of purchase, covering manufacturing defects and performance issues under normal operating conditions. ABB’s technical support team provides 24/7 assistance, with specialists available to help with configuration, calibration, and troubleshooting.
We offer on-site commissioning services for ABB UAD149A0011, including channel configuration, accuracy verification, and integration with AC 800M controllers. Extended warranty options up to 5 years are available, including annual calibration checks by certified technicians. In the event of a fault, ABB guarantees a 48-hour repair turnaround at regional service centers, with replacement modules available for next-day delivery to minimize downtime. All repairs use genuine ABB components, ensuring ABB UAD149A0011 maintains its original accuracy and isolation performance.
