Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB TB820V2 |
| Manufacturer | ABB |
| Product Category | Terminal Unit (I/O Interface) |
| System Compatibility | ABB 800xA, Advant Controller |
| Input/Output Channels | Configurable (typically 8-16) |
| Signal Types Supported | Digital/Analog I/O |
| Isolation Voltage | 1500V AC |
| Communication Protocol | Fieldbus (Profibus DP/PA) |
| Power Supply | 24V DC (±10%) |
| Operating Temperature | -25°C to +70°C |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 22.5 x 117 mm |

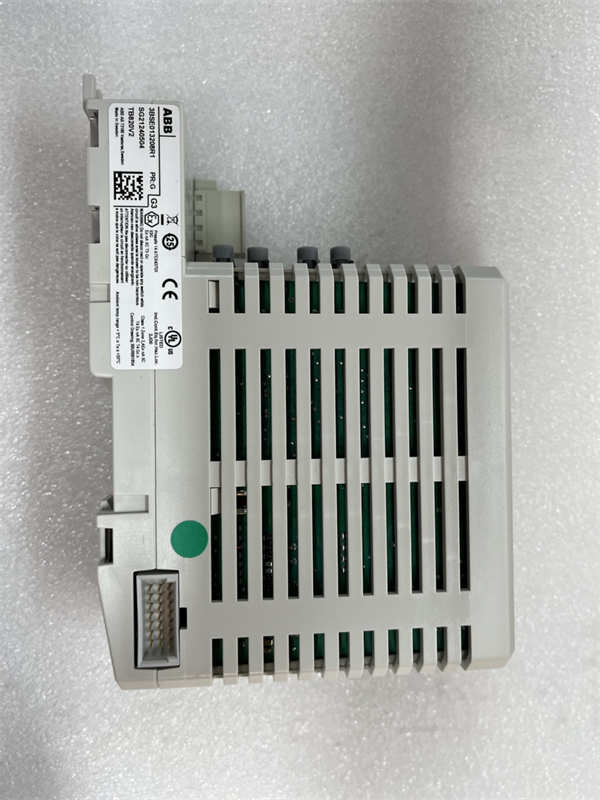

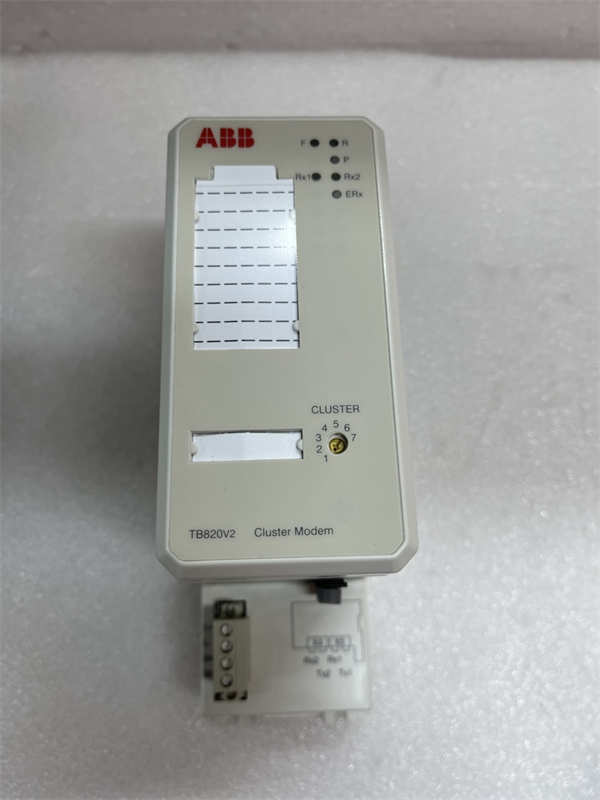

ABB TB820V2
Product Introduction
The ABB TB820V2 is a versatile terminal unit designed for reliable signal interfacing in industrial automation systems. As part of ABB’s comprehensive control product portfolio, this robust interface module serves as a crucial link between field devices and control systems in process automation applications. Its flexible design allows for seamless integration with ABB’s 800xA and Advant Controller systems, providing reliable signal conditioning and conversion.
Engineered for harsh industrial environments, the ABB TB820V2 offers excellent noise immunity and electrical isolation, ensuring accurate signal transmission even in electrically noisy conditions. The module’s compact form factor and DIN rail mounting make it ideal for space-constrained control cabinets while maintaining easy accessibility for maintenance.
Core Advantages and Technical Highlights
Flexible configuration: The ABB TB820V2 supports multiple signal types through configurable channels, allowing adaptation to various field instruments. This flexibility reduces inventory requirements and simplifies system expansion.
High reliability: With 1500V AC isolation between channels and field-to-system sides, the module provides excellent protection against ground loops and electrical interference. This ensures signal integrity in demanding industrial environments.
Easy integration: Designed for native compatibility with ABB control systems, the ABB TB820V2 simplifies system engineering and reduces commissioning time. Plug-and-play functionality with ABB controllers minimizes configuration efforts.
Robust construction: The module’s industrial-grade components and wide operating temperature range (-25°C to +70°C) ensure reliable operation in challenging conditions, from freezing outdoor installations to hot industrial plants.
Typical Application Scenarios
The ABB TB820V2 is widely used in industrial automation systems:
In process industries, it interfaces with field instruments such as pressure transmitters, flow meters, and control valves, providing reliable signal conditioning between 4-20mA field devices and control systems.
For manufacturing automation, the module connects sensors and actuators to PLC systems, handling both digital and analog signals with equal reliability. Its high channel density makes it ideal for machine control applications.
In power generation plants, the ABB TB820V2 serves as interface for turbine monitoring sensors, providing isolated signal paths that prevent noise from affecting critical measurements.
Building automation systems utilize the module’s flexible I/O capabilities to integrate various subsystems, from HVAC controls to lighting management.

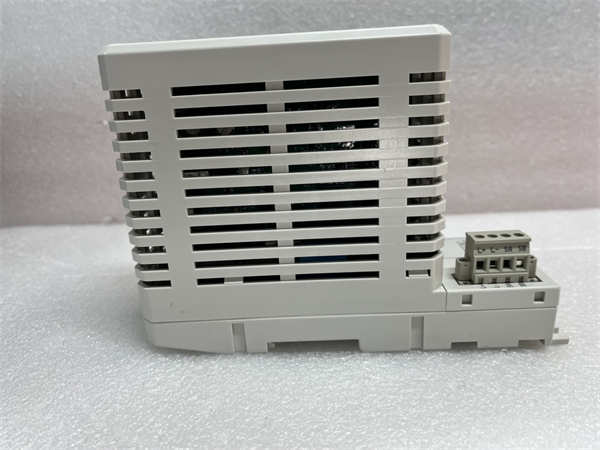

ABB TB820V2
Related Model Recommendations
ABB TB821V2: Expanded version with additional channels
ABB TB810V2: Basic version for simpler applications
ABB TA510V2: Analog input module
ABB TD520V2: Digital input/output module
ABB TF830V2: Fieldbus communication module
ABB TX890V2: Signal converter
ABB CI530V2: Communication interface
ABB SA810V2: Signal conditioner
These complementary products allow system designers to create complete automation solutions based on the ABB TB820V2 core functionality.
Installation, Commissioning and Maintenance Instructions
Installation preparation: Before installing the ABB TB820V2, verify the DIN rail is securely mounted and properly grounded. Ensure adequate space for heat dissipation and cable routing. Prepare appropriate tools for terminal connections, including a torque screwdriver for proper terminal tightening.
Maintenance suggestions: Regularly inspect terminal connections for tightness and signs of corrosion. Monitor module status indicators during routine system checks. Keep firmware updated to benefit from performance improvements. Document all channel configurations for quick reference during troubleshooting.
Service and Guarantee Commitment
ABB provides a standard 24-month warranty for the ABB TB820V2, covering manufacturing defects and premature failures. Global technical support is available through ABB’s network of service centers, with options for on-site assistance in critical applications. The product’s modular design facilitates component-level repair, minimizing downtime. Comprehensive documentation including wiring diagrams and configuration guides ensures proper implementation and maintenance.
