Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | SUE3000 1VCR007346 G0032 |
| Manufacturer | ABB |
| Product category | High – speed motor bus transfer solution |
| Dimensions (approx.) (WxHxD in mm) | 263×58×28 mm |
| Weight | 4.3 kg |
| Country of origin | Switzerland |
| Input voltage range | N/A (designed for bus transfer operations rather than direct input voltage as a power supply unit) |
| Output | Automatic transfer from main to standby incomer to secure power supply to busbars |
| Transfer time | Typical transfer time around 100 ms (can be reduced to around 30 ms when used with specific components like rex 542 plus relays and vacuum circuit breaker vm 1 – t), depending on breaker time, fault detection time, and incoming line status |
| Configuration options | Configurable with two or three circuit – breakers |
| Transfer modes | Four different configurable motor bus transfer modes |
| Supervision features | Permanent supervision of involved incomers, busbars, and circuit breakers |
| Integrated functions | Integrated disturbance recorder, watchdog self – monitoring, coil supervision function, and decoupling function |
| Communication protocols | Flexible bus protocol communication concept including IEC 61850 – 8 – 1 MMS, IEC 60870 – 5 – 103, Ethernet interface, Modbus TCP, Modbus RTU, Profibus DP, and ABB SPA |
| Compatibility | Can interface with any ABB or non – ABB protection device and circuit breaker |
| Mounting | Designed for easy integration into existing and new switchgear installations |

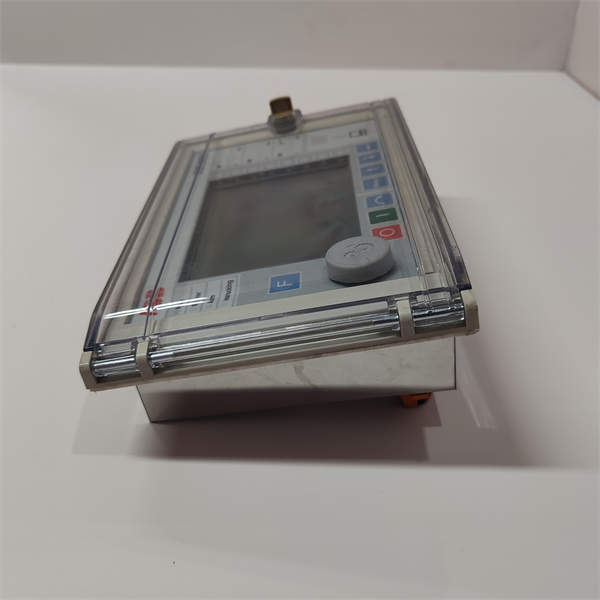

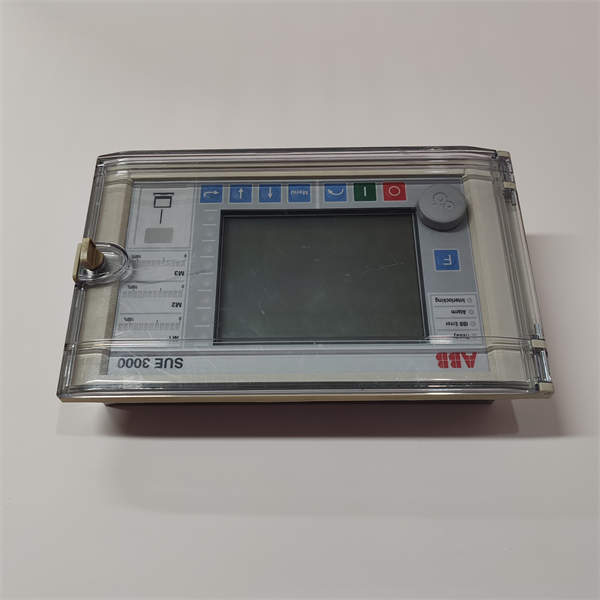

ABB SUE3000 1VCR007346 G0032
Product introduction
The ABB SUE3000 1VCR007346 G0032 is a high – performance high – speed motor bus transfer solution. It is a crucial component in industrial power distribution systems, ensuring the seamless transfer of power between a main incomer and a standby incomer. This automatic transfer mechanism is designed to provide a continuous power supply to busbars that feed essential industrial processes. By doing so, it safeguards downstream processes from the potentially costly outages that can occur due to power disruptions in the main supply.
The SUE3000 series, to which this model belongs, is engineered with ABB’s vast experience in industrial technology. It is not only a reliable solution for maintaining power continuity but also a product that can be easily integrated into both new and existing switchgear setups, making it a versatile choice for a wide range of industrial applications.
Core advantages and technical highlights
Rapid power transfer: The SUE3000 1VCR007346 G0032 can achieve a typical transfer time of around 100 ms. In scenarios where critical processes cannot afford even a short power interruption, this quick transfer is essential. When paired with components such as rex 542 plus relays and the vacuum circuit breaker vm 1 – t, the transfer time can be further reduced to approximately 30 ms. This rapid response helps in minimizing the impact of power outages on industrial operations, ensuring that production lines keep running smoothly.
Flexible configuration: With the ability to be configured for use with two or three circuit – breakers and offering four different configurable motor bus transfer modes, the SUE3000 caters to a variety of industrial power distribution setups. Whether it’s a simple two – breaker system in a small – scale industrial unit or a more complex three – breaker configuration in a large manufacturing plant, the device can be adjusted to meet the specific requirements of the application.
Comprehensive supervision and self – monitoring: The permanent supervision of involved incomers, busbars, and circuit breakers, along with the integrated disturbance recorder and watchdog self – monitoring, ensures that the device is always aware of the power system’s status. The disturbance recorder can capture and store data during abnormal events, which is invaluable for post – event analysis. The watchdog self – monitoring function constantly checks the device’s internal components and operations, alerting operators in case of any potential issues. This proactive approach to monitoring helps in preventing major failures and reducing downtime.
Integrated safety features: Safety is a top priority in industrial settings, and the SUE3000 delivers with features like the coil supervision function and decoupling function. The coil supervision function monitors the health of the coils in the circuit breakers, ensuring that they are operating correctly. In case of a coil failure, the system can take appropriate action to prevent further damage. The decoupling function helps in isolating faulty sections of the power system, protecting the rest of the network from potential cascading failures.
Versatile communication capabilities: The flexible bus protocol communication concept enables seamless integration with a wide range of industrial communication systems. Whether it’s using IEC 61850 – 8 – 1 MMS for modern, high – speed, and reliable communication in smart grids, or Modbus TCP/RTU for compatibility with legacy systems, the SUE3000 can communicate effectively with other devices in the industrial network. This allows for easy remote monitoring, control, and integration with overall plant management systems.
Typical application scenarios
Manufacturing plants: In a large – scale automotive manufacturing plant, where robotic arms, conveyor belts, and other automated machinery are constantly in operation, a continuous power supply is crucial. The SUE3000 1VCR007346 G0032 can be installed to ensure that in the event of a power failure in the main supply, the standby power kicks in within milliseconds. This prevents any disruption to the production line, avoiding costly downtime and ensuring that the plant can continue to meet its production targets.
Power generation facilities: Power plants need to maintain a stable and uninterrupted power supply not only for the generation process but also for the auxiliary systems that support it. The SUE3000 can be used to transfer power between different power sources within the plant, such as from the main generator to a backup generator during maintenance or in case of a generator failure. This ensures that critical systems like cooling pumps, control systems, and monitoring devices continue to operate without interruption, maintaining the overall stability of the power generation process.
Data centers: Data centers house a large number of servers and networking equipment that require a constant power supply. Any power outage, no matter how short, can lead to data loss, service disruptions, and significant financial losses. The SUE3000 can be integrated into the data center’s power distribution system to provide a seamless transfer to standby power sources in case of a mains failure. This ensures that the servers and other critical equipment keep running, maintaining the availability of online services and protecting valuable data.
Hospitals: In a hospital setting, life – support systems, operating room equipment, and other critical medical devices rely on a continuous power supply. The SUE3000 can be used to transfer power to these essential systems in case of a power grid failure. This ensures that patient care is not interrupted, and the hospital can continue to function smoothly, even during challenging power situations.

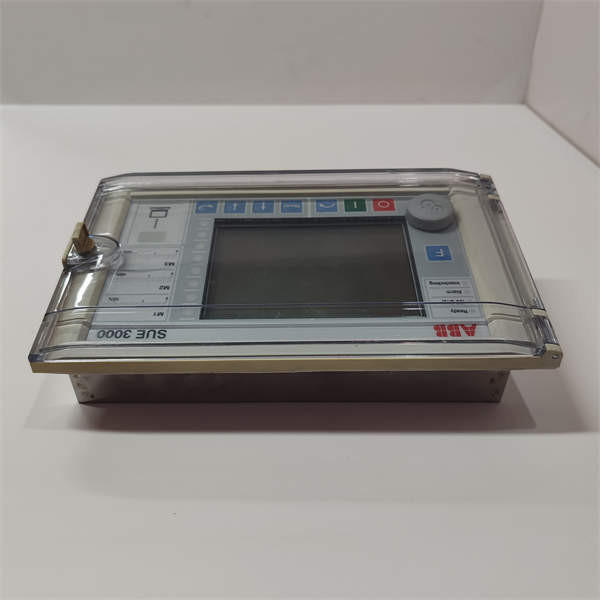

ABB SUE3000 1VCR007346 G0032
Comparison with related models in the series
Compared with ABB SUE2000 series: The SUE2000 series, while also providing power transfer solutions, may have a more limited set of features compared to the SUE3000 1VCR007346 G0032. For example, the SUE2000 might have a longer transfer time, which could be a drawback in applications where every millisecond of power interruption matters. The SUE3000, with its faster transfer capabilities and more comprehensive supervision and safety features, is better suited for high – priority industrial processes that demand a more robust and reliable power transfer solution.
Compared with other brands’ similar products: ABB’s SUE3000 stands out due to its seamless integration with ABB’s extensive range of industrial products and systems. ABB has a well – established ecosystem of protection devices, circuit breakers, and control systems, and the SUE3000 is designed to work harmoniously with these components. Competing products may face compatibility issues when trying to integrate with a diverse range of industrial equipment. Additionally, ABB’s global reputation for quality, reliability, and technical support gives the SUE3000 an edge. ABB’s technical teams are available worldwide to provide installation, maintenance, and troubleshooting support, ensuring that customers can rely on the product for long – term, trouble – free operation.
Installation, commissioning and maintenance instructions
Installation preparation: Before installation, carefully review the installation site to ensure it meets the requirements of the SUE3000. The area should be clean, dry, and free from excessive dust and moisture. Check the switchgear where it will be integrated to ensure compatibility with the two – or three – breaker configuration of the SUE3000. Gather all the necessary tools, such as screwdrivers, wire strippers, and crimping tools. Ensure that the power system in the installation area has been properly shut down and isolated to prevent any electrical accidents during installation.
Commissioning process: Once installed, connect the SUE3000 to the relevant protection devices, circuit breakers, and communication networks according to the provided wiring diagrams. Double – check all connections to ensure they are secure and properly insulated. Power on the device and perform an initial self – test. Use the device’s built – in configuration tools or connected communication interfaces to set up the four different motor bus transfer modes according to the specific requirements of the industrial application. Test the transfer function by simulating a power outage in the main supply. Monitor the transfer time using appropriate testing equipment to ensure it meets the expected values. Also, verify the proper functioning of the supervision and self – monitoring features by checking the data recorded in the disturbance recorder and the status of the watchdog self – monitoring system.
Maintenance suggestions: Regularly inspect the SUE3000 for any signs of physical damage, such as cracks in the housing or loose connections. Clean the device periodically using a dry, lint – free cloth to remove any dust that may have accumulated, as dust can affect the performance of the internal components. Check the communication status with other devices in the network at regular intervals to ensure seamless data transfer for monitoring and control purposes. Review the data recorded in the disturbance recorder periodically to look for any patterns or signs of abnormal behavior in the power system. If any issues are detected, refer to the troubleshooting section of the product manual. In case of more complex problems, contact ABB’s technical support team, who can provide remote or on – site assistance. Replace any worn – out or faulty components with genuine ABB parts to maintain the device’s performance and reliability.
Service and guarantee commitment
ABB offers a standard [warranty period] warranty for the SUE3000 1VCR007346 G0032, covering any manufacturing defects. ABB’s global technical support team is available 24/7 to assist customers. They can provide remote support through online communication channels, guiding customers through installation, commissioning, and troubleshooting processes. In cases where on – site assistance is required, trained technicians can be dispatched to the customer’s location. ABB also regularly updates the product’s software and technical documentation to improve performance, add new features, and address any potential security vulnerabilities. This commitment to service and support ensures that customers can rely on the SUE3000 for long – term, reliable operation in their industrial applications.
