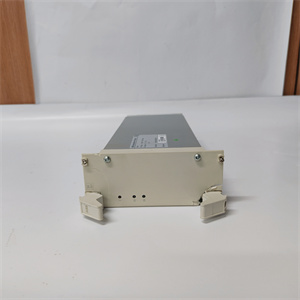

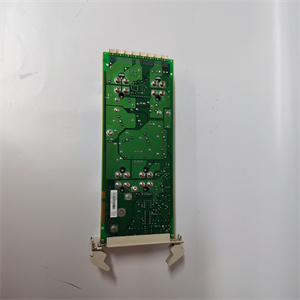

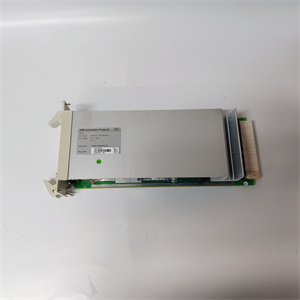

ABB SR511 3BSE000863R0001

Product Introduction

The ABB SR511 3BSE000863R0001 is a high-density 16-channel digital input module engineered for ABB’s S800 I/O system. Designed for industrial automation environments, this module interfaces discrete DC field devices (limit switches, pushbuttons, proximity sensors) with AC 800M controllers within ABB’s 800xA and Symphony Plus control platforms. Its core function is converting 24V DC field signals into reliable binary data for logic processing, alarm systems, and machine sequencing.

As a critical component of ABB’s S800 Distributed I/O family, the SR511 operates on carrier bases like TB801/TB820, providing localized signal processing near field equipment. Technically optimized for harsh environments, it features configurable filtering to eliminate contact bounce noise and comprehensive diagnostics for rapid troubleshooting. The module’s value lies in reducing wiring costs through channel density while maintaining signal integrity in electrically noisy plants – serving as the digital “sensory network” for safety interlocks, equipment monitoring, and state detection across continuous and batch processes.

Core Advantages and Technical Highlights

High-Density Channel Configuration:
With 16 isolated inputs in single-slot form factor, the SR511 maximizes cabinet space efficiency. This density reduces installation costs by up to 40% compared to lower-channel alternatives, ideal for packaging lines with hundreds of sensor points.

Intelligent Signal Processing:
Four user-selectable filter settings (0.5ms to 20ms) adapt to different sensor types. Fast 0.5ms filtering captures high-speed events (e.g., rotary encoder pulses), while 20ms filtering eliminates noise from mechanical contacts.

Advanced Diagnostics Capability:
Each channel provides independent status monitoring. The SR511 detects:

Wire break conditions (<2mA current)

Overvoltage events (>30V DC)

Short-circuit to ground
Diagnostic data integrates directly into ABB’s Asset Vision for predictive maintenance.

Universal Sink/Source Operation:
Supports both PNP (sourcing) and NPN (sinking) field devices without hardware reconfiguration. This flexibility simplifies spare part management in mixed-device facilities.

Robust Industrial Design:
500V channel-to-system isolation withstands voltage transients in heavy motor environments. Extended temperature tolerance (-25°C to +70°C) ensures reliability in steel mills or outdoor substations. The TB801 terminal block enables tool-free wiring replacement.

Seamless System Integration:
Hot-swappable on redundant carriers. Automatic address recognition via S800 backplane. Live channel indication LEDs accelerate commissioning and troubleshooting.

Typical Application Scenarios

Automotive Assembly Plants: Monitors 1000+ pneumatic cylinder position sensors on body-in-white lines. The SR511‘s 0.5ms filtering captures high-speed robot tooling sequences.

Pharmaceutical Packaging: Tracks blister machine stopper positions and safety door interlocks. Diagnostic alerts prevent GMP deviations by detecting sensor failures before contamination events.

Water Treatment Facilities: Interfaces with pump station float switches and valve limit switches. Corrosion-resistant terminals withstand chlorine environments.

Material Handling Systems: Processes photoeye signals on high-speed conveyors. Channel density reduces cabinet size in space-constrained distribution centers.

HVAC Control: Monitors filter clog indicators and damper end positions across building management systems. The SR511‘s -25°C rating suits rooftop installations.

Turbine Skids: Detects lube oil pressure switches and vibration switch contacts. Isolation prevents ground loops from compromising critical trip signals.

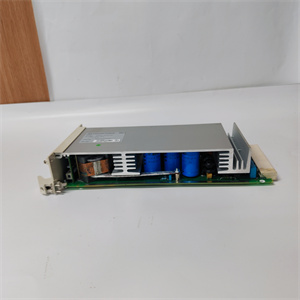

ABB SR511 3BSE000863R0001

Related Model Recommendations

TB801: Compact S800 Carrier – Houses up to 3 modules including SR511.

TB820: Extended S800 Carrier – Supports 8 modules for larger SR511 configurations.

SD822: Power Supply Module – Provides 5V DC to carriers hosting SR511.

DO810: Digital Output Module – Complementary 16-channel output for control devices.

AI825: Analog Input Module – Adds process variable monitoring alongside SR511 discrete signals.

KVC758A: PROFIBUS Interface – Connects SR511-equipped carriers to DP networks.

PP825: Redundant Power Supply – Ensures uninterrupted operation for critical SR511 clusters.

TA516: Terminal Block Kit – Replacement connectors for SR511.

DI810: 16-Channel AC Input – Alternative for 120V AC signal acquisition.

SAI543: HART Multiplexer – Integrates smart instrumentation with SR511-monitored discrete systems.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Verify carrier compatibility (TB801/TB820). Power down the S800 station before module insertion. Use shielded twisted-pair cables for inputs >10m. Maintain 50mm separation from AC power lines. Configure DIP switches for filtering before power-up.

Maintenance Suggestions: Quarterly diagnostic checks via Control Builder software. Verify input current >2mA per channel to prevent false “wire break” alarms. Clean terminal blocks annually with isopropyl alcohol. Monitor LED indicators:

GREEN = Healthy channel

RED = Fault detected

OFF = No field power
Replace modules during planned shutdowns. Always maintain ESD precautions.

Service and Guarantee Commitment

ABB provides an 18-month global warranty for the SR511 3BSE000863R0001. Support includes:

Technical Assistance: 24/7 access to ABB’s Automation Support Center

Firmware Updates: Security patches and feature enhancements

Repair Services: Certified repair centers with 10-day standard turnaround

Lifecycle Commitment: Minimum 15-year product support after discontinuation
Extended warranty options (up to 5 years) cover advance replacement and priority support. Documentation resources include:

Hardware manuals (3BSE020924R0001)

CAD drawings

SIL certification packages
All repairs undergo full functional testing per IEC 61131-2 standards.
