Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | SPAU140C |
| Manufacturer | ABB |
| Product category | Protection and control relay |
| Rated voltage | 110/220 V AC/DC |
| Operating current range | 0.1 A to 20 A (primary) |
| Protection functions | Overcurrent, earth fault, thermal overload, under/overvoltage |
| Communication protocols | IEC 61850, Modbus RTU/TCP, DNP3.0 |
| Number of digital inputs | 8 |
| Number of digital outputs | 4 |
| Display | 128×64 pixel LCD with backlight |
| Operating temperature range | -25°C to +70°C (-13°F to +158°F) |
| Dimensions (LxWxH) | 145 mm x 145 mm x 100 mm (5.7 in x 5.7 in x 3.9 in) |
| Weight | 0.8 kg (1.8 lb) |
| Mounting type | Panel mount (flush or surface) |
| Certification | IEC 61850-3, IEC 60255, CE, UL |

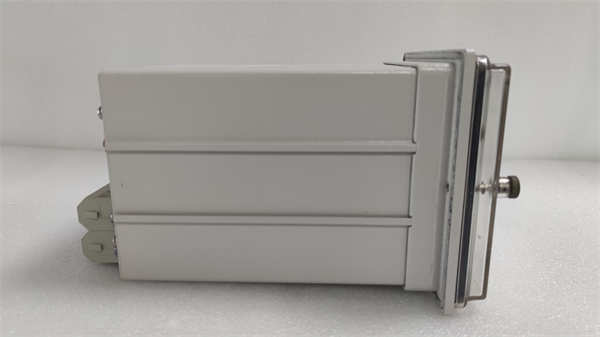

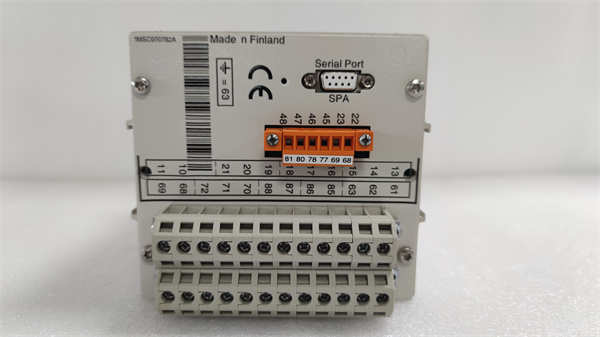

ABB SPAU140C
Product introduction
The SPAU140C from ABB is a compact yet powerful protection and control relay designed for low-voltage electrical networks. As part of ABB’s renowned SPAU series, this device integrates advanced protection functions with flexible control capabilities, making it a versatile solution for industrial and commercial power distribution systems.
SPAU140C serves as a critical safeguard for electrical equipment, detecting and responding to faults such as overcurrent, earth faults, and voltage irregularities to prevent damage and ensure system reliability. Its combination of protection features and control logic allows it to manage small to medium-sized electrical networks autonomously or as part of a larger SCADA system. In automation setups, the SPAU140C acts as a intelligent intermediary—monitoring network parameters in real-time, executing protective actions when needed, and communicating critical data to higher-level systems. Whether deployed in manufacturing plants, commercial buildings, or renewable energy installations, the SPAU140C delivers precise protection and control, minimizing downtime and enhancing electrical system safety.
Core advantages and technical highlights
Comprehensive protection suite: The SPAU140C offers a complete set of protection functions tailored to low-voltage networks. Its overcurrent protection includes inverse time characteristics (IEC 60255) to match different load types, while earth fault detection with adjustable sensitivity prevents hazardous ground faults. Thermal overload protection mimics the heating curve of motors, ensuring accurate protection against prolonged overloading. This multi-layered approach means the SPAU140C can safeguard diverse equipment—from motors and transformers to distribution panels—without requiring additional devices.
Seamless communication: Equipped with native support for IEC 61850, Modbus, and DNP3.0, the SPAU140C integrates effortlessly into modern digital substations and industrial networks. Its IEC 61850 compliance enables fast data exchange and standardized configuration, reducing integration time in smart grid applications. The relay’s ability to send event logs and real-time measurements to SCADA systems enhances visibility into network performance, enabling predictive maintenance and faster fault resolution.
User-friendly operation: The SPAU140C features an intuitive 128×64 LCD display with a menu-driven interface, allowing operators to configure settings, view measurements, and access event records without specialized tools. Programmable function keys can be customized for frequent tasks, streamlining daily operations. For remote configuration, ABB’s PCM600 software provides a graphical environment to set parameters and simulate protection scenarios, ensuring accurate setup before deployment.
Robust design: Built to withstand harsh industrial environments, the SPAU140C operates reliably across a wide temperature range (-25°C to +70°C) and resists vibration, electromagnetic interference (EMI), and voltage surges. Its compact form factor (145x145mm) saves panel space, while front-facing connections simplify wiring. These attributes make the SPAU140C suitable for both indoor switchgear and outdoor enclosures in demanding locations.
Typical application scenarios
In manufacturing facilities, the SPAU140C protects motor control centers (MCCs) feeding production line equipment. It monitors three-phase motors for overcurrent during startup, detects earth faults in wiring, and shuts down power within milliseconds if a fault occurs—preventing motor burnout and unplanned downtime. The relay’s Modbus communication allows the plant SCADA system to track motor runtime and load trends, optimizing maintenance schedules. In food processing plants, where equipment washdowns are common, the SPAU140C’s rugged design ensures reliable operation despite humidity and temperature fluctuations.
Commercial buildings rely on the SPAU140C to protect critical electrical systems such as HVAC, lighting, and elevator networks. It safeguards distribution panels from overloads caused by peak demand, while under/overvoltage protection prevents sensitive electronics (like building management systems) from damage during grid fluctuations. The relay’s IEC 61850 connectivity enables integration with building automation systems, providing facility managers with centralized visibility of electrical network health and enabling energy optimization through load shedding.
Renewable energy installations, such as solar PV farms, use the SPAU140C to protect inverter connections and distribution lines. It detects faults in DC-to-AC conversion systems, isolates faulty sections to prevent cascading failures, and communicates fault data to the plant control system for rapid repair. The relay’s ability to operate in extreme temperatures ensures reliable performance in outdoor solar arrays, where ambient conditions can vary drastically between day and night.

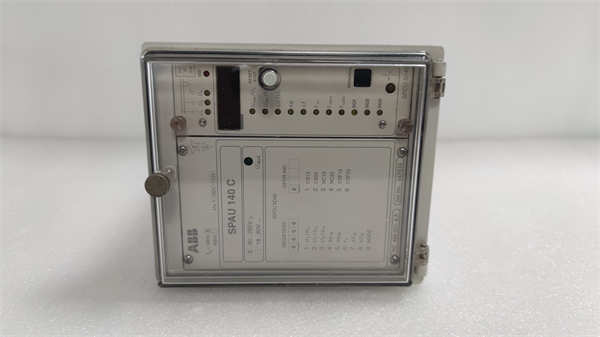

ABB SPAU140C
Related model recommendations
SPAU110C: A basic variant of the SPAU140C with reduced protection functions, ideal for simple applications like standalone motor protection. It lacks IEC 61850 support but offers cost-effective overcurrent and earth fault protection for small networks.
SPAU160C: An advanced version of the SPAU140C with additional features including differential protection and arc flash detection, suitable for medium-voltage transformers and critical distribution systems requiring enhanced fault detection.
REF615: A bay control unit from ABB that complements the SPAU140C in digital substations. It extends control capabilities with advanced logic programming, working alongside the SPAU140C to manage complex switching sequences.
CI854: A communication module that enhances the SPAU140C’s connectivity in industrial networks. It adds PROFINET support, enabling seamless integration with ABB’s AC 800M DCS for unified control and protection in large industrial plants.
TB820: A terminal block accessory designed for the SPAU140C, providing secure wiring connections and surge protection. It simplifies installation in high-vibration environments, ensuring reliable signal transmission.
SPAJ140C: A specialized earth fault protection relay that works with the SPAU140C in networks with high ground fault risk. It offers more sensitive earth fault detection, complementing the SPAU140C’s general protection functions.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing the SPAU140C, verify that the mounting surface (panel or DIN rail adapter) can support the relay’s weight and is free from vibration. Use a torque wrench to secure the device with M4 screws (torque 1.5 Nm) for flush mounting. Ensure the supply voltage matches the relay’s rating (110/220 V AC/DC) and that wiring is sized according to local electrical codes (minimum 0.5 mm² for control circuits). Connect current transformers (CTs) with a 1 A or 5 A secondary rating, ensuring polarity is correct to avoid measurement errors. Power down the system during wiring to prevent electrical hazards.
Maintenance suggestions: Inspect the SPAU140C quarterly for loose connections, dust accumulation, or physical damage. Clean the LCD display and terminals with a dry cloth to maintain readability and conductivity. Test protection functions annually using a relay test set to verify trip times and sensitivity—focus on overcurrent and earth fault settings, as these are critical for system safety. Back up configuration data to a USB drive or PCM600 software to facilitate quick recovery in case of firmware updates or replacement. If the relay displays communication errors, check network cables and protocol settings; replace the communication module (if faulty) with an ABB-approved part to maintain certification compliance.
Service and guarantee commitment
The SPAU140C is backed by ABB’s 5-year warranty, covering manufacturing defects and ensuring compliance with published performance specifications. ABB’s global technical support team provides 24/7 assistance for configuration, troubleshooting, and relay testing, with response times guaranteed within 8 hours for critical issues.
Customers benefit from on-site commissioning services, where ABB engineers verify wiring, configure protection settings, and perform functional tests to ensure the SPAU140C integrates seamlessly with existing systems. Extended warranty options (up to 7 years) include annual preventive maintenance checks. In the event of a fault, ABB maintains regional spare parts stock, enabling next-day delivery of replacement SPAU140C units to minimize downtime. All repairs and replacements use genuine ABB components, ensuring the relay retains its original protection capabilities and certification status. This commitment reflects ABB’s confidence in the SPAU140C’s reliability and its dedication to keeping customers’ electrical systems protected.
