Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB SPASI23 |
| Manufacturer | ABB |
| Product Category | Analog Input Module (S800 I/O Series) |
| Channels | 16 (Single-Ended) |
| Input Signal Range | 0-20 mA / 4-20 mA (Software Selectable) |
| Resolution | 16-bit (Including Sign) |
| Accuracy | ±0.1% of Span (at 25°C) |
| Isolation | 1500 V AC (Channel-to-Channel & Channel-to-Backplane) |
| Common Mode Rejection | >120 dB at 50/60 Hz |
| Update Rate | 10 ms per Channel (Full Scan) |
| Power Consumption | 1.1 W (Typical) |
| Operating Temperature | -25°C to +70°C |
| Certifications | SIL 2, ATEX, IECEx, cULus, NEBS Level 3 |
| Connection Type | Removable Screw Terminals (Front Access) |
| Compatible Base Unit | ABB S800 I/O Bases (e.g., TB820, TB801) |

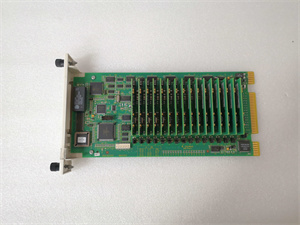

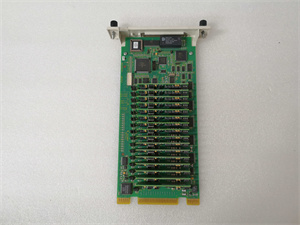

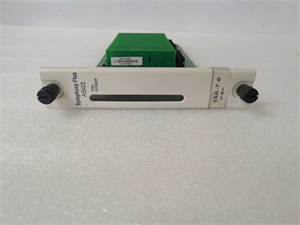

ABB SPASI23
Product Introduction
The ABB SPASI23 is a high-density, intrinsically safe analog input module within ABB’s flagship S800 I/O family, designed for critical process monitoring in hazardous environments. As a core component of ABB’s Advant Controller 800xA and Symphony Plus DCS platforms, this 16-channel module converts field instrument signals (4-20mA/0-20mA) into precise digital data for process control systems. Engineered for extreme reliability, the ABB SPASI23 features galvanic isolation exceeding industry standards, preventing ground loops and electrical noise interference in complex industrial networks.
This module operates within ABB’s distributed I/O architecture, connecting directly to S800 field bases located close to sensors in Zone 1/Division 1 areas. Its compact design maximizes cabinet space efficiency while supporting HART pass-through communication (via ABB SCM81 module) for smart instrument diagnostics. The ABB SPASI23 serves as the primary interface for temperature, pressure, flow, and level transmitters in oil/gas, chemical, and power generation facilities where signal integrity directly impacts safety and efficiency.
Core Advantages and Technical Highlights
Ultra-High Channel Density: Sixteen isolated inputs in single module slot reduce footprint by 40% vs. competitors, minimizing cabinet space and installation costs.
Advanced Signal Integrity:
Active Noise Suppression: Proprietary sigma-delta ADC with oversampling eliminates aliasing errors
Continuous Self-Calibration: Automatic zero/span compensation compensates for thermal drift
Burden Voltage Control: <1.0V drop at 20mA preserves signal accuracy in long cable runs
Explosion-Proof Safety:
ATEX/IECEx certification for gas (Group IIC) and dust (Group IIIC) environments
Integrated energy-limiting circuits prevent ignition from field wiring faults
Diagnostic Capabilities:
Open wire detection (0.5 mA threshold) with configurable alarms
Over-range/under-range monitoring with timestamped logging
Module health status (RAM/EEPROM checksum verification)
Hot-Swap Maintainability:
Live insertion/removal when used with redundant controllers
Front-accessible terminals eliminate backplane disconnection
Typical Application Scenarios
Offshore Oil & Gas Platforms: The ABB SPASI23 monitors wellhead pressure/temperature transmitters in EX zones, with HART pass-through enabling predictive maintenance without field visits.
Chemical Batch Reactors: Sixteen-channel density supports high-point-count reactor trains, providing SIL 2-certified inputs for exotherm monitoring and emergency quenching systems.
Power Plant Emission Control: Interfaces with CEMS (Continuous Emission Monitoring Systems) analyzers, delivering ±0.1% accuracy for EPA compliance reporting.
Pharmaceutical Cleanrooms: Monitors differential pressure (4-20mA) across HEPA filters and containment barriers, with NEBS-certified EMI immunity preventing false alarms.
Water Treatment PLC Integration: Connects legacy PLCs to ABB DCS via Profibus PA/Foundation Fieldbus using ABB SAI01 interface modules.
Related Model Recommendations
ABB SPASI24: 8-channel isolated analog input (0/4-20mA) for higher accuracy requirements
ABB TB820: S800 I/O base unit for SPASI23 mounting (supports hot-swapping)
ABB SCM81: HART multiplexer module for SPASI23 smart instrument integration
ABB SD822: Redundant power supply for critical SPASI23 installations
ABB SAI01: Profibus DP interface module for PLC connectivity
ABB SPASO23: Analog output counterpart (16-channel 4-20mA)
ABB SPHSS01: Signal conditioner for thermocouple/RTD inputs
ABB CI871: Ethernet/IP communication interface

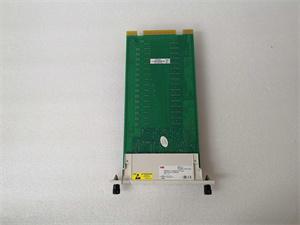

ABB SPASI23
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
Verify hazardous area certification matches zone classification
Ground backplane via dedicated 6mm² cable (<0.1Ω resistance)
Use shielded twisted pairs (AWG 16-22) with screen grounded at single point
Maintain 10cm separation from AC power cables
Commissioning:
Set DIP switches for channel grouping (8+8 or 16-channel mode)
Configure signal type in Control Builder M (0-20mA/4-20mA)
Perform loop calibration using precision current source (0/4/8/12/16/20mA)
Verify HART communication via SCM81 (if deployed)
Maintenance:
Monthly: Terminal torque check (0.6 Nm)
Quarterly: Verify isolation resistance (>100 MΩ at 500VDC)
Annually: Calibration check with certified reference standard
5-Year: Replace internal electrolytic capacitors
Continuous: Monitor module diagnostic counters in 800xA
Service and Guarantee Commitment
ABB provides a 36-month warranty for the ABB SPASI23, extendable to 15 years via Life Cycle Service agreements. Global support includes:
24/7 Technical Hotline: Field engineer dispatch within 8 hours for critical failures
Obsolete Parts Guarantee: 10-year notice before discontinuation + last-time-buy options
Firmware Management: Security patches aligned with IEC 62443 requirements
Repair Services: Flat-rate repair with 10-day turnaround (worldwide)
Calibration Certificates: NIST-traceable documentation upon request
All modules undergo 96-hour burn-in testing at 85°C and 100% humidity. Cybersecurity validation includes Penetration Testing per ISA/IEC 62443-3-3 standards.
