Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB SPASI23 |
| Manufacturer | ABB |
| Product Category | Analog Input Module |
| Input Voltage | 24V DC |
| Input Channels | 16 |
| Input Types | TC, mV, RTD, High Level |
| Precision | ±0.1% FS |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions | 73.66 mm (D) x 360.68 mm (H) x 269.24 mm (W) |
| Weight | 0.771 kg |
| Certifications | UL, CE |

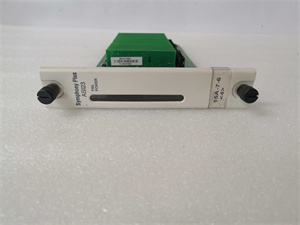

SPASI23
Product Introduction
The ABB SPASI23 is a high-performance analog input module designed for industrial automation and control applications. It is part of the ABB AC800F series and is widely used in power generation, oil and gas, and manufacturing industries.
Core Advantages and Technical Highlights
High Precision and Reliability
The ABB SPASI23 features high precision (±0.1% FS) and supports multiple input types, including thermocouples (TC), millivolts (mV), resistance temperature detectors (RTD), and high-level signals.
Robust Design
The module is designed to withstand harsh industrial environments, with an operating temperature range of -40°C to +85°C and an isolation voltage of 1500 Vrms.
Flexible Configuration
The ABB SPASI23 supports flexible configuration, allowing users to set different input types for each channel. This makes it suitable for complex industrial environments.
Advanced Diagnostics
The module includes self-diagnostic capabilities, allowing real-time monitoring of its operating status. It can send alarm signals and transmit fault information to the control system for quick troubleshooting.

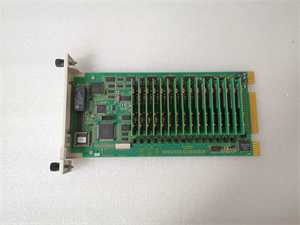

SPASI23
Typical Application Scenarios
The ABB SPASI23 is widely used in:
-
Power Generation: For monitoring and controlling critical processes in power plants.
-
Oil and Gas: For precise control of gas turbines and other critical equipment.
-
Manufacturing: For controlling actuators, relays, and other industrial devices in manufacturing and chemical processing.
Related Model Recommendations
-
ABB PM 802F or PM 803F: These modules are designed to work in conjunction with the ABB SPASI23 for enhanced control capabilities.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
