Description
Key Technical Specifications
- Model Number: SNAT-11
- Manufacturer: ABB Process Automation Division (800xA DCS Product Line)
- Processor: 32-bit RISC microprocessor (80+ MIPS) for real-time control logic execution
- Memory: 4MB Flash (program storage), 8MB RAM (data processing with ECC)
- I/O Interfaces:
- 16 configurable digital channels (can be set as 8 inputs + 8 outputs or mixed configuration)
- Digital Inputs: 24VDC, 5mA max per channel, 0.1-32ms configurable input delay, Type 1 per EN 61131-2
- Digital Outputs: 24VDC, 2A max per channel (5A peak), short-circuit protected, open-circuit detection
- Communication: Profibus DP (12Mbps max), Modbus RTU, internal backplane bus for AC800M controller integration
- Power Supply: 24VDC ±10% (3W typical, 5W max current draw)
- Isolation Rating: 2500VAC (channel-to-channel, channel-to-backplane, channel-to-power)
- Operating Temperature: -20°C to +60°C (ambient, derate above 55°C)
- Mounting Type: ABB AC800M I/O Terminal Unit (TU516-H, TU532-H, or TU542-H for hot-swappable capability)
- Diagnostic Features: Module health monitoring, channel-level diagnostics (open/short circuit detection), communication fault detection, over-temperature/over-voltage protection, LED status indicators (power, communication, channel activity)
- Protection Class: IP20 (module), IP65 (with sealed terminal block)
- Weight: 0.5kg
- Dimensions: 178mm x 104mm x 35mm
- Hot-Swap Capability: Yes (only with TU5xx-H terminal units and proper shutdown procedure)ABB
- Certifications: CE, UL, ATEX, IEC 61131-2 compliant

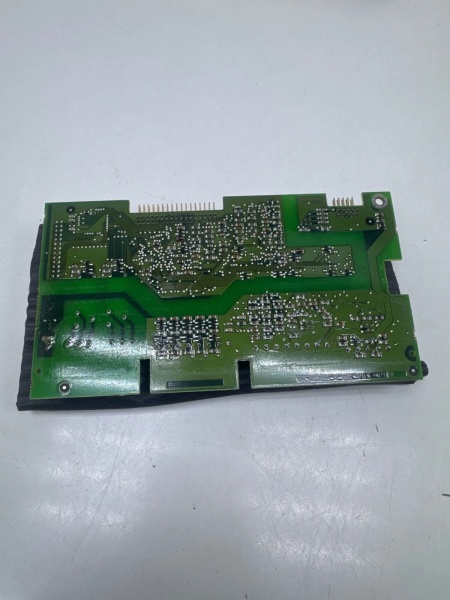

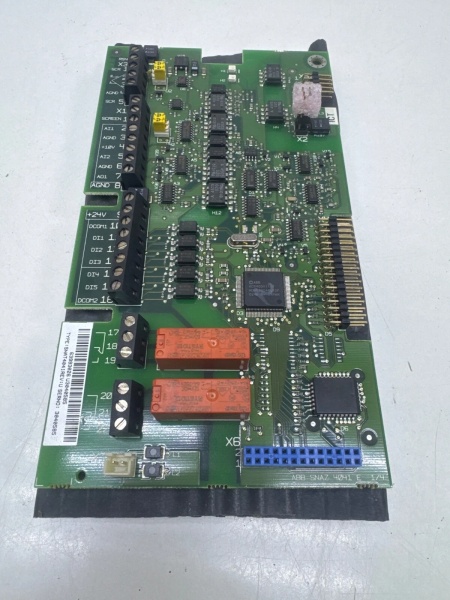

ABB SNAT-11
Field Application & Problem Solved
In distributed industrial control systems using ABB’s AC800M controllers, the biggest challenge is implementing custom control logic at the I/O level without overloading the main controller. Traditional I/O modules lack processing power for real-time calculations, while adding separate controllers increases system complexity and cost. At a Texas refinery, the existing AC800M system couldn’t handle complex interlock logic for a crude distillation unit, requiring expensive main controller upgrades and causing process delays during logic changes.
This module solves that processing bottleneck. You’ll find it in:
- Power Plant Auxiliary Systems: Controlling feedwater pumps, boiler fans, and generator cooling systems with custom interlock logic to prevent equipment damage
- Refinery Process Units: Implementing safety shutdown sequences, valve position control, and alarm monitoring for distillation columns and catalytic reactors
- Chemical Batch Processing: Managing recipe execution, batch tracking, and quality control with real-time digital signal processing
- Manufacturing Lines: Coordinating robotic systems, conveyor belts, and packaging equipment with precise timing and synchronization
Its core value is enabling distributed intelligence at the I/O level—offloading complex calculations from the main AC800M controller to improve overall system responsiveness and reduce network traffic. Unlike generic I/O modules, it’s pre-optimized for ABB’s 800xA DCS architecture, ensuring seamless integration with existing control systems. The high-performance microprocessor handles multiple control loops simultaneously, enabling real-time decision-making that improves process efficiency by 6-10% in typical applications.
Installation & Maintenance Pitfalls (Expert Tips)
- Terminal Unit Compatibility is Non-Negotiable: The module is hot-swappable only with TU5xx-H terminal units (TU516-H, TU532-H, TU542-H). I saw this at a chemical plant where a technician tried to install it in a standard TU516 terminal unit—causing communication errors and module damage. Always verify terminal unit model before installation; use only ABB-approved hot-swap terminal units for live replacement.ABB
- Hot-Swap Protocol Must Be Strictly Followed: Skipping proper shutdown procedure corrupts backplane communication and can crash the entire I/O bus. At a refinery, a technician pulled the module mid-process upset, causing a reactor trip and $120k in lost production. Always: 1) Disable the module in Control Builder M, 2) Wait for the “safe to remove” LED indicator, 3) Confirm bus stability with system diagnostics before extraction.
- Grounding & Shielding Prevents EMI Interference: Improper grounding introduces electrical noise that degrades signal accuracy. Mount the module on a grounded steel chassis, connect the safety ground to the terminal unit ground with a 35mm² copper conductor, and run signal cables 30cm away from power cables. At a paper mill, re-routing digital sensor cables eliminated 0.8% false input triggers in a critical safety interlock system.
- Firmware Compatibility Check: Always verify module firmware version matches AC800M controller firmware before installation. A Pennsylvania power plant had communication timeouts and module resets due to mismatched firmware—use ABB’s Device Type Manager (DTM) to update firmware to the latest compatible release (v3.2.0 or higher for hot-swap capability).
- Channel Configuration for Optimal Performance: Configure I/O channels based on application requirements. A food processing plant engineer set all 16 channels as inputs without adjusting buffer settings, causing data overflow and module resets. Use Control Builder M to configure channels in groups of 8, and allocate sufficient memory for high-speed input processing when monitoring fast-changing signals (e.g., motor status, valve position).

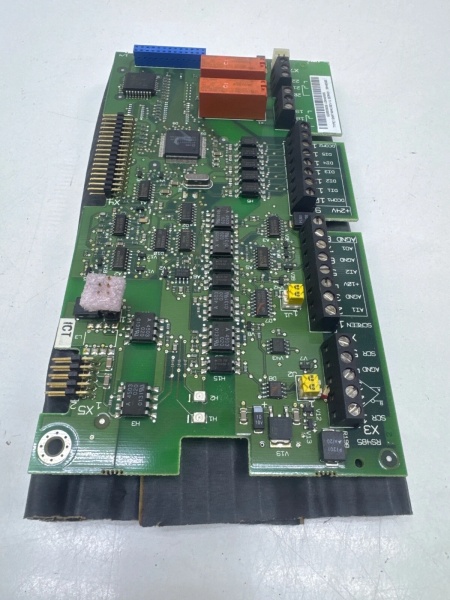

ABB SNAT-11
Technical Deep Dive & Overview
The ABB SNAT-11 is a 16-channel configurable digital I/O control board designed specifically for ABB’s AC800M controllers and 800xA distributed control system (DCS). It acts as a distributed intelligence node that brings processing power to the field level, enabling custom control logic implementation and advanced signal processing without overloading the main controller.
Internally, the module features a 32-bit RISC microprocessor that delivers 80+ MIPS of processing power—enough to handle multiple complex control algorithms simultaneously, including interlock logic, sequence control, and alarm handling. The memory architecture includes 4MB of non-volatile Flash (for program storage) and 8MB of RAM (for real-time data processing), with error-correcting code (ECC) to ensure data integrity in harsh industrial environments.
The module communicates with the AC800M controller via Profibus DP (up to 12Mbps) or Modbus RTU, supporting both cyclic and acyclic data transfer modes. It stores custom algorithms in non-volatile Flash, so programs survive power cycles and module replacement. The 16 digital I/O channels are galvanically isolated (2500VAC) from the backplane and power supply, protecting the module from field-side electrical surges and noise common in industrial environments.
What makes it field-tough is its industrial design: conformal-coated PCB to resist humidity and chemical vapors, wide operating temperature range (-20°C to +60°C), and vibration tolerance up to 3g. It’s built to handle the abuse of power plant control rooms, refinery process areas, and manufacturing floors—where temperature swings, EMI, and mechanical vibration destroy lesser modules. Unlike generic I/O modules, it’s engineered to integrate seamlessly with ABB’s control software, with zero configuration conflicts and native support for ABB’s control logic functions (Function Blocks, Structured Text, Ladder Logic).
This is the module you install when you need to add distributed intelligence to your AC800M-based control system—enabling advanced control at the field level while reducing main controller load and improving overall system performance. It’s particularly valuable in safety-critical applications where fast response times and reliable signal processing are essential, such as emergency shutdown systems (ESD), fire and gas detection, and turbine protection.
