Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB SC610 |
| Manufacturer | ABB |
| Product Category | Communication Interface Module |
| Primary Function | PROFIBUS DP Master/Slave Interface |
| Supported Protocols | PROFIBUS DP-V0, DP-V1 |
| Data Transfer Rate | 9.6 kbps to 12 Mbps (auto-sensing) |
| Interface Type | 9-pin D-Sub (male) |
| Electrical Isolation | 500 V AC (between fieldbus and system) |
| Operating Voltage | 5 V DC (supplied via S800 I/O bus) |
| Power Consumption | Typical 1.5 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | Plug-in module for S800 I/O Station |
| Compatible System | ABB Symphony™ Plus / Harmony DCS |

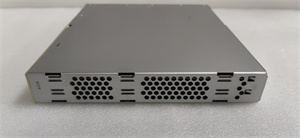

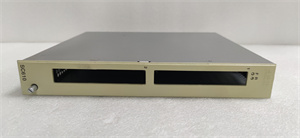

ABB SC610
Product Introduction
The ABB SC610 is a high-performance PROFIBUS DP communication interface module designed for seamless integration within ABB’s Symphony™ Plus and Harmony distributed control systems (DCS). As a critical component of the S800 I/O family, this module acts as a robust gateway, enabling reliable data exchange between the DCS controllers and PROFIBUS DP field devices such as remote I/O stations, variable speed drives, motor starters, and intelligent sensors. The ABB SC610 can be configured to operate either as a PROFIBUS DP Master, actively controlling the network and polling connected slaves, or as a DP Slave, responding to requests from an external master PLC or system.
Engineered for demanding industrial environments, the ABB SC610 plays a vital role in modern automation architectures by bridging the gap between the high-level control functions of the Symphony™ Plus/Harmony system and the extensive ecosystem of PROFIBUS DP-compatible field equipment. Its primary value lies in extending the reach and flexibility of the DCS, allowing users to leverage existing PROFIBUS DP infrastructure and devices while maintaining centralized control, monitoring, and diagnostics capabilities through the powerful ABB engineering and operator stations. The ABB SC610 module is fundamental for integrating third-party PROFIBUS devices into the ABB control environment efficiently.
Core Advantages and Technical Highlights
The ABB SC610 module delivers significant advantages for industrial communication, starting with its robust PROFIBUS DP implementation. Supporting both DP-V0 and DP-V1 standards ensures compatibility with a vast range of field devices and enables advanced features like non-cyclic parameterization and acyclic data exchange for enhanced diagnostics and configuration. Its auto-sensing capability across the full PROFIBUS DP speed spectrum (9.6 kbps to 12 Mbps) simplifies commissioning and network optimization without manual configuration.
High Reliability and Diagnostics: Built to ABB’s stringent quality standards, the SC610 features 500V electrical isolation between the fieldbus and the S800 I/O system, protecting the core DCS from electrical disturbances on the fieldbus. Comprehensive diagnostic capabilities are integral. The module continuously monitors its status and the PROFIBUS network health, providing detailed error codes and status information accessible through the DCS engineering tools. This enables rapid fault identification and resolution, minimizing downtime. The module’s wide operating temperature range (-25°C to +70°C) ensures dependable performance in harsh plant conditions.
Seamless DCS Integration: The ABB SC610 leverages the inherent advantages of the S800 I/O platform, including hot-swapping capability (when used within a redundant setup and following proper procedures) and modularity. Configuration and parameterization are performed entirely within the familiar ABB Control Builder engineering environment, eliminating the need for separate configuration tools typically associated with PROFIBUS masters. This deep integration streamlines engineering, commissioning, and ongoing maintenance tasks, reducing lifecycle costs. Its plug-in design for the S800 station ensures easy installation and replacement.
Typical Application Scenarios
The ABB SC610 finds extensive application in industries requiring robust process control and integration of diverse field devices via PROFIBUS DP. In power generation plants, the module is crucial for connecting turbine control systems, burner management systems, and balance-of-plant equipment like pumps, fans (via drives), and motor control centers to the central Symphony™ Plus DCS. It enables centralized monitoring and control of critical processes while utilizing reliable PROFIBUS DP field networks.
Within water and wastewater treatment facilities, the ABB SC610 integrates essential assets such as flow meters, level sensors, analyzers, and valve actuators operating on PROFIBUS DP into the Harmony or Symphony™ Plus control system. This provides operators with a unified view and control over complex treatment processes like filtration, chemical dosing, and sludge handling. Its reliability is vital for ensuring continuous plant operation and regulatory compliance.
In oil & gas production and refining, the ABB SC610 facilitates the connection of wellhead control systems, compressor stations, safety instrumented system (SIS) interfaces, and packaged equipment skids using PROFIBUS DP to the main DCS. Its ability to operate reliably in wide temperature ranges and provide clear diagnostics makes it suitable for both onshore and offshore installations. The module is also widely deployed in chemical processing, pulp & paper, and mining, wherever integration of PROFIBUS DP devices into the ABB DCS ecosystem is required for efficient and centralized automation.

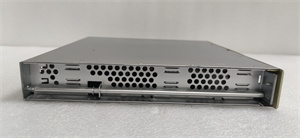

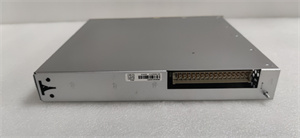

ABB SC610
Related Model Recommendations
ABB CI854: A PROFIBUS DP Master module designed for mounting directly on AC 800M controller racks (like PM856/PM860), providing higher-level master functionality compared to the S800-based SC610 (often used as a slave to such masters).
ABB CI867: An EtherNet/IP interface module for S800 I/O, used when integrating devices supporting EtherNet/IP protocol instead of PROFIBUS DP alongside the SC610.
ABB CI871: A PROFINET IO Controller module for S800 I/O, representing a modern alternative to PROFIBUS DP for new installations requiring higher bandwidth.
ABB SA801: A versatile S800 I/O station base unit designed to house various communication and I/O modules, including the SC610.
ABB TA521: Termination unit for the SA801 base unit, essential for proper module installation and bus termination.
ABB SD821: Digital Input module (part of the S800 I/O family), often used in the same station as the SC610 for local signal acquisition.
ABB SC620: A later generation PROFIBUS DP-V1 Slave module for S800 I/O, offering enhanced features compared to the SC610.
ABB PM861: A high-performance AC 800M controller frequently used as the central processing unit in systems where SC610 modules provide fieldbus connectivity.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB SC610, ensure the S800 I/O station (SA801) is powered down according to safety lockout/tagout procedures. Verify the station backplane is clean and undamaged. Have the correct termination unit (e.g., TA521) ready for the intended slot. Grounding of the S800 station frame must be verified as per ABB specifications. For PROFIBUS DP connection, prepare a shielded, twisted-pair cable with 9-pin D-Sub connectors. Ensure the PROFIBUS network segment is properly terminated at both ends. Static discharge precautions (ESD wrist strap) are mandatory when handling the SC610 module.
Maintenance Suggestions: Regularly inspect the ABB SC610 module status LEDs and network diagnostics within the DCS operator station for any warnings or errors. Ensure the module is securely seated in its slot and that the PROFIBUS connector is tight. Periodically check the integrity of the PROFIBUS cable shield connection at the module’s connector. Keep the module and station ventilation areas clean and free from excessive dust or contaminants. Avoid exposing the module to temperatures or humidity levels outside its specified operating range. If a module fault is indicated, consult the diagnostic information in Control Builder before replacement. When replacing the SC610, follow the S800 I/O hot-swap procedure (if supported in the specific redundant configuration) or power down the station.
Service and Guarantee Commitment
ABB stands firmly behind the quality and reliability of the SC610 communication interface module. The product is covered by ABB’s standard global warranty, typically valid for 12 months from the date of shipment, covering defects in materials and workmanship under normal use and service conditions. ABB provides comprehensive technical support for the SC610 through its global network of local service centers and technical specialists. Support encompasses assistance with installation, configuration, troubleshooting, and integration within Symphony™ Plus and Harmony systems.
Customers benefit from access to detailed product documentation, application notes, and firmware updates via the ABB support portal. ABB is committed to providing long-term product support and availability for the SC610 as part of its lifecycle management strategy for critical industrial automation components. For warranty claims or technical issues, customers should contact their local ABB representative or authorized service partner to ensure prompt and effective resolution, minimizing any potential impact on operations. ABB’s commitment extends to ensuring the SC610 performs reliably within your automation infrastructure.
