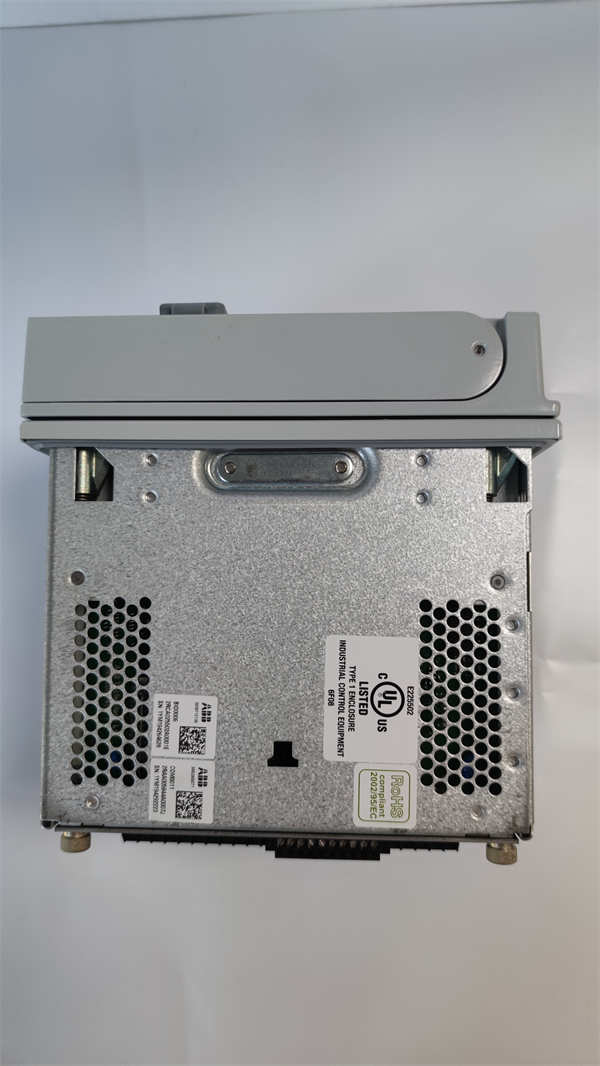

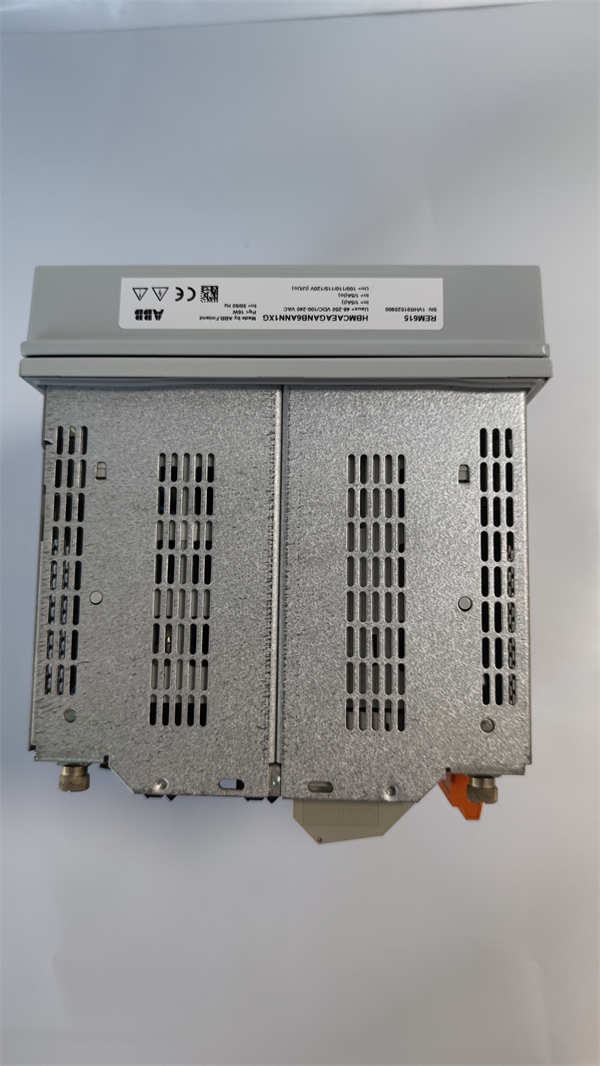

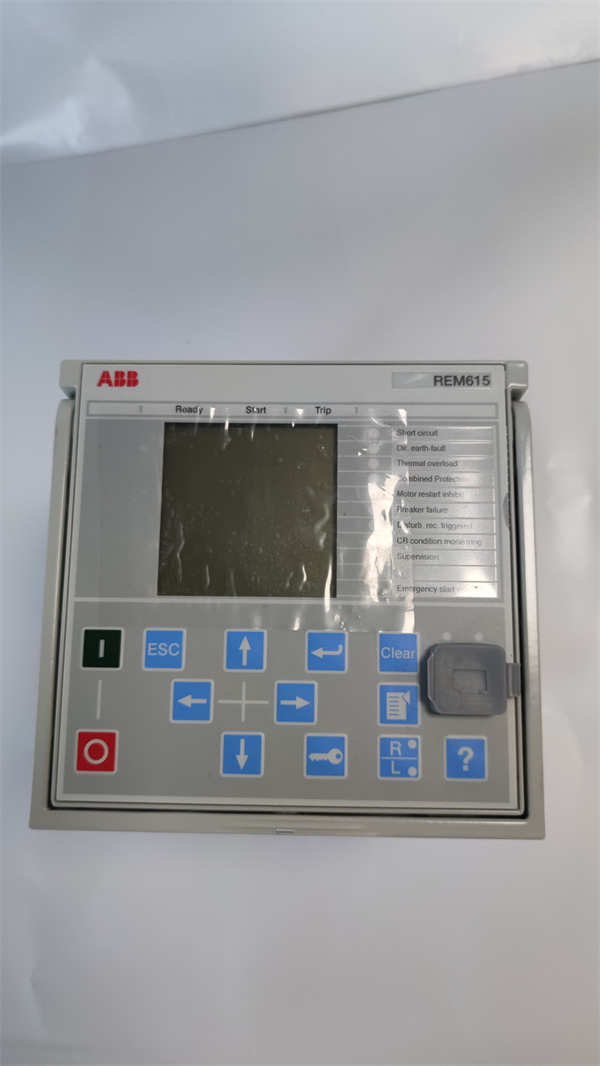

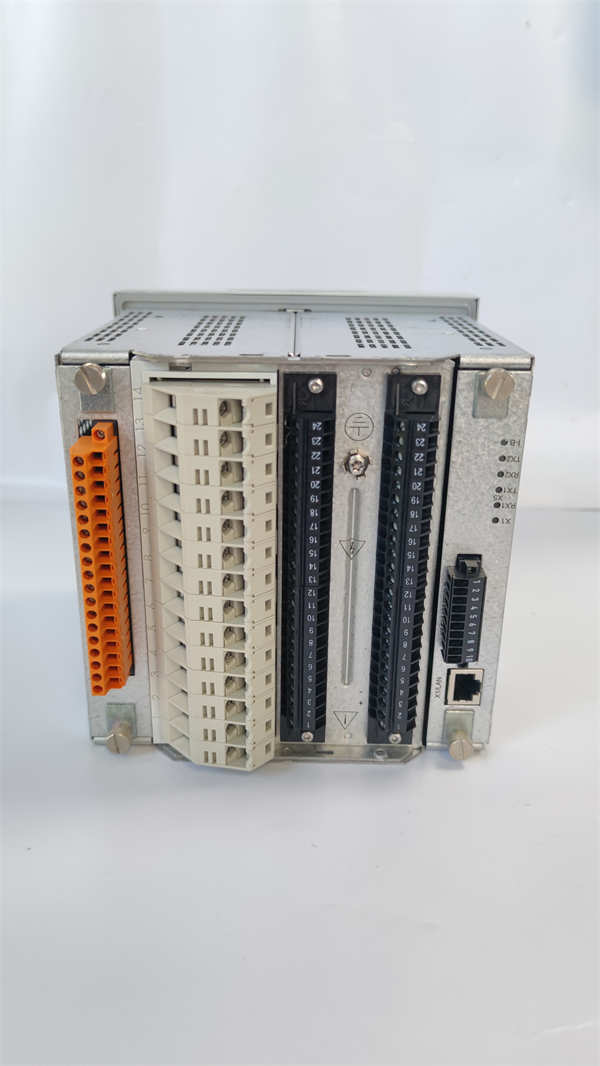

ABB REM615 HBMCAEAGANB6ANN1XG

Description

Technical Specifications

Parameter	Specification
Product Code	REM615 HBMCAEAGANB6ANN1XG
Series	Relion® 615
Protection Class	IEC 61850-3, IEEE 1613
Input Voltage	48-300V DC / 100-240V AC
Current Inputs	5A/1A (configurable)
Protection Functions	12+ including overcurrent, earth fault, motor protection
Communication Ports	2x Ethernet, 2x optical, 1x RS485
Protocols Supported	IEC 61850 Ed.2, Modbus TCP/RTU, DNP3.0, IEC 60870-5-103
Operating Temperature	-40°C to +70°C
Dimensions	177×190×155 mm (6U)
Weight	2.3 kg
Certifications	UL, CE, DNV, ATEX

Product Overview

The ABB REM615 HBMCAEAGANB6ANN1XG represents the cutting edge of medium-voltage motor protection technology within ABB’s Relion® 615 series. This intelligent electronic device combines advanced motor protection with comprehensive control and monitoring capabilities, specifically engineered for demanding industrial applications.

As a fully digital protection relay, the REM615 HBMCAEAGANB6ANN1XG provides complete motor management including start supervision, thermal overload protection, and advanced fault detection. Its modular design incorporates 16-bit analog processing and 32-bit microprocessor technology for unparalleled precision in motor protection applications ranging from 0.4kV to 15kV systems.

Key Differentiators



Motor-Specific Protection Algorithms:



Advanced thermal overload protection with 6 current inputs



Start/stall protection with customizable curves



Phase unbalance and negative sequence protection



Mechanical jam detection



Enhanced Diagnostic Capabilities:



Continuous motor condition monitoring



Vibration analysis through optional modules



Winding temperature monitoring (RTD inputs)



Comprehensive event recorder (1000+ events)



Industrial Connectivity:



Dual-redundant Ethernet ports (IEC 61850-3 compliant)



PROFINET IO Device support



Cyber security features including role-based access



Ruggedized Design:



Conformal coated PCB for harsh environments



50g shock resistance (IEC 60255-21)



4kV surge immunity (IEC 61000-4-5)



Industry Applications

Oil & Gas:



Critical pump and compressor protection



EX-rated versions for hazardous areas



SIL2 certified safety functions



Mining:



Conveyor drive protection



High-inertia load starting supervision



Vibration monitoring integration



Water Treatment:



Large pump motor protection



Duty/standby control logic



Flood prevention monitoring



Power Generation:



Boiler feed pump protection



BFP motor monitoring



Black start capability

System Integration

The REM615 HBMCAEAGANB6ANN1XG seamlessly integrates with:



ABB Ability™ Condition Monitoring



System 800xA DCS



ABB MNS® switchgear



Third-party SCADA via OPC UA



Ordering Information

The product code breaks down as:



REM615: Series



H: Hardware version



B: Basic unit



MCAEAG: Functional configuration



ANB6ANN1XG: Communication and option package



Maintenance & Support

ABB offers:



5-year extended warranty options



Global 24/7 technical support



Online firmware updates



Predictive maintenance services



Training programs for engineers
