ABB REF615E_E HBFEAEAGABCCANC11E

Advanced protection algorithms: The ABB REF615E_E HBFEAEAGABCCANC11E incorporates adaptive protection characteristics that automatically adjust to network conditions. The relay features:



Voltage-dependent overcurrent protection



Sensitive directional earth fault protection (IEDG)



Thermal overload protection with cooling time constants



Arc flash detection via external sensors (<5ms tripping)



Cybersecurity hardened design: This variant includes:



IEC 62351-compliant encrypted communications



Role-based access control (RBAC)



Secure boot functionality



Audit trail with tamper-evident logging



Industrial durability: The REF615E_E features:



Conformal coated PCBs for corrosive environments



5g vibration resistance (IEC 60255-21-1)



4kV surge immunity (IEC 61000-4-5)



DNV GL certification for marine applications



User-centric interface: The relay offers:



High-visibility sunlight-readable display



Intuitive single-line diagram interface



Local pushbutton control with password protection



USB port for local configuration



In Stock
Manufacturer:
Part number: ABB REF615E_E HBFEAEAGABCCANC11E
Our extensive catalogue, including : ABB REF615E_E HBFEAEAGABCCANC11E , is available now for dispatch to the worldwide. Brand:

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model REF615E_E HBFEAEAGABCCANC11E
Manufacturer ABB
Product Category Digital Feeder Protection Relay (IED)
Protection Functions Directional OC/EF, Arc Flash, Thermal Overload
Input Voltage 48-300V DC / 100-240V AC (±20%)
Current Inputs 1A/5A (software configurable)
Communication Protocols IEC 61850 Ed.2, Modbus TCP/RTU, DNP3.0
Operating Temperature -40°C to +70°C (extended range)
Protection Degree IP40 (front), IP20 (terminals)
Dimensions 177 × 190 × 155 mm (6U)
Weight 2.5 kg
Compliance Standards IEC 60255, IEEE C37.90, UL 508, DNV GL
REF615E_E HBFEAEAGABCCANC11E

REF615E_E HBFEAEAGABCCANC11E

Product Introduction

The ABB REF615E_E HBFEAEAGABCCANC11E represents the next evolution in ABB’s Relion® 615 series of feeder protection relays, designed for mission-critical power distribution applications. This specific configuration (HBFEAEAGABCCANC11E) features enhanced environmental tolerance and cybersecurity features for demanding industrial installations.

As an Intelligent Electronic Device (IED), the REF615E_E provides comprehensive protection for medium-voltage feeders (up to 40.5kV) with advanced directional overcurrent and earth fault protection elements. The relay’s extended temperature range (-40°C to +70°C) makes it particularly suitable for outdoor installations and harsh industrial environments where conventional protection relays might fail. Its modular firmware architecture allows for future functional expansions without hardware modifications.

Core Advantages and Technical Highlights

Advanced protection algorithms: The ABB REF615E_E HBFEAEAGABCCANC11E incorporates adaptive protection characteristics that automatically adjust to network conditions. The relay features:



Voltage-dependent overcurrent protection



Sensitive directional earth fault protection (IEDG)



Thermal overload protection with cooling time constants



Arc flash detection via external sensors (<5ms tripping)



Cybersecurity hardened design: This variant includes:



IEC 62351-compliant encrypted communications



Role-based access control (RBAC)



Secure boot functionality



Audit trail with tamper-evident logging



Industrial durability: The REF615E_E features:



Conformal coated PCBs for corrosive environments



5g vibration resistance (IEC 60255-21-1)



4kV surge immunity (IEC 61000-4-5)



DNV GL certification for marine applications

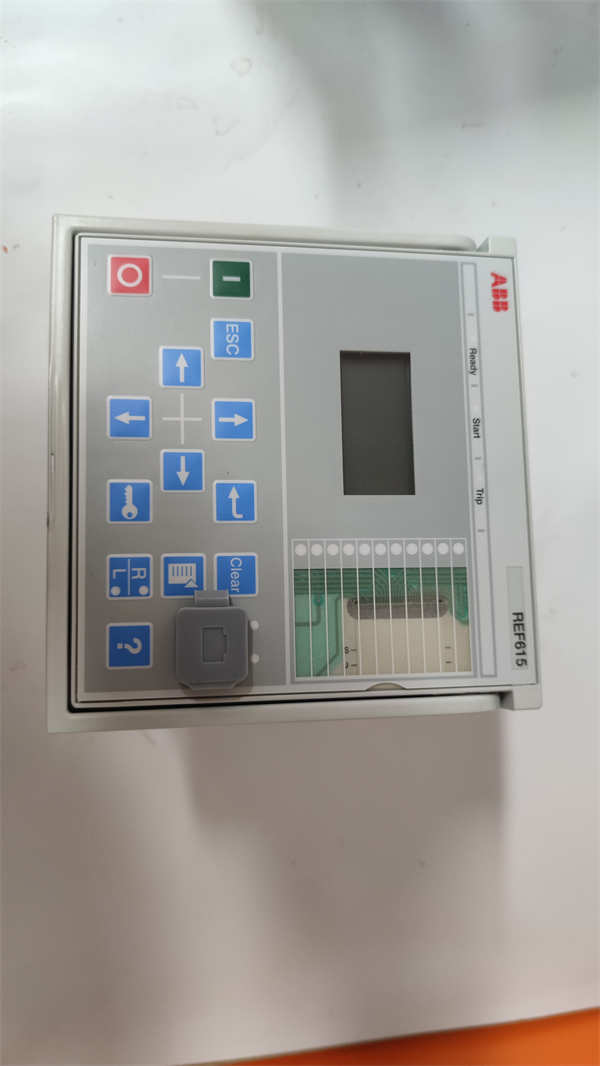

User-centric interface: The relay offers:



High-visibility sunlight-readable display



Intuitive single-line diagram interface



Local pushbutton control with password protection



USB port for local configuration

REF615E_E HBFEAEAGABCCANC11E

REF615E_E HBFEAEAGABCCANC11E

Typical Application Scenarios

The ABB REF615E_E HBFEAEAGABCCANC11E excels in demanding industrial power distribution:

Oil & Gas: Protects offshore platform feeders with DNV GL-certified hardware resistant to salt spray and constant vibration. The relay’s sensitive earth fault detection ensures safety in floating production storage and offloading (FPSO) units.

Mining Operations: Withstands extreme temperature variations in open-pit mining electrical distribution. The robust design handles high vibration from nearby heavy equipment while providing selective coordination for radial feeders.

Port Facilities: Marine-certified protection for quayside container crane power systems. The extended temperature range ensures reliability in coastal environments with salt-laden air.

Renewable Energy: Manages bidirectional power flow in solar/wind farm collector systems. Adaptive protection settings accommodate generation fluctuations while maintaining grid code compliance.

Related Model Recommendations



REF615E_F: With integrated temperature monitoring



REF615E_D: Basic version without extended temperature range



REM615E: Motor protection variant



RET615E: Transformer protection version



REQ650: Bay controller with automation functions



REF620: Advanced feeder protection with distance elements



REC615: Communication interface unit



Installation, Commissioning and Maintenance Instructions

Installation preparation: Mount the ABB REF615E_E HBFEAEAGABCCANC11E vertically with minimum 50mm clearance for ventilation. Use copper conductors (min. 2.5mm²) for CT connections and ensure proper grounding per IEC 61000. For arc flash detection, install sensors according to IEEE 1584 guidelines.

Commissioning steps:



Verify hardware compatibility with PCM600 V2.11+



Upload latest firmware package



Configure protection settings using template libraries



Perform primary injection testing



Validate communication mapping



Maintenance protocol:



Quarterly inspection of cooling vents



Annual verification of protection settings



3-year calibration check



5-year capacitor replacement



Continuous monitoring via ABB Ability™



Service and Guarantee Commitment

ABB provides:



84-month extended warranty option



24/7 global technical support (4hr response critical sites)



Lifetime firmware updates



Cybersecurity patch notifications



On-site commissioning assistance



Training programs (IEC 61850, cybersecurity)



Retrofit kits for legacy ABB relays



The REF615E_E HBFEAEAGABCCANC11E is backed by ABB’s Condition-Based Maintenance program, offering predictive analytics through integrated monitoring of relay health parameters including operating temperature, capacitor aging, and contact wear.
