Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | REF615A_E HAFAABAAABE1BCA1XE |
| Manufacturer | ABB |
| Product Category | Feeder Protection Relay (IED) |
| Protection Functions | Overcurrent, Earth Fault, Arc Flash, Thermal Overload |
| Input Voltage | 48-300V DC / 100-240V AC |
| Current Inputs | 5A or 1A (configurable) |
| Communication Protocols | IEC 61850 Ed.2, Modbus, DNP3.0 |
| Operating Temperature | -25°C to +55°C |
| Protection Degree | IP40 (front), IP20 (terminals) |
| Dimensions | 177 × 190 × 155 mm |
| Weight | 2.3 kg |
| Compliance Standards | IEC 60255, IEEE C37.90, UL 508 |

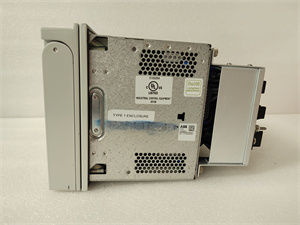

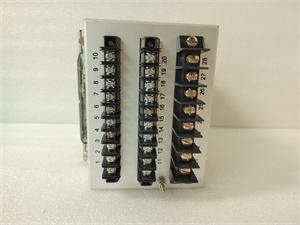

ABB REF615A_E HAFAABAAABE1BCA1XE
Product Introduction
The ABB REF615A_E HAFAABAAABE1BCA1XE is an advanced feeder protection relay from ABB’s Relion® 615 series, designed for medium-voltage applications in industrial and utility power systems. This specific variant (HAFAABAAABE1BCA1XE) represents a fully-featured configuration with arc flash protection and enhanced communication capabilities.
As part of ABB’s digital substation solutions, the REF615A_E provides comprehensive protection for overhead lines, underground cables, and busbars up to 40.5kV. The relay combines traditional overcurrent and earth fault protection with innovative arc flash detection technology, offering both equipment protection and personnel safety. Its modular design allows flexible adaptation to various network configurations and protection requirements.
Core Advantages and Technical Highlights
Advanced protection scheme: The ABB REF615A_E HAFAABAAABE1BCA1XE features directional/non-directional overcurrent protection (50/51, 50N/51N) with multiple characteristic curves. The integrated arc flash protection uses light detection to trigger ultra-fast tripping (<7ms), significantly reducing incident energy in fault conditions.
Communication capabilities: This variant supports IEC 61850 Edition 2 communication standard including GOOSE messaging for fast peer-to-peer communication. Additional protocols (Modbus RTU/TCP, DNP3.0) ensure compatibility with various SCADA and control systems. The rear communication interface includes 2x Ethernet ports and 1x RS485 port.

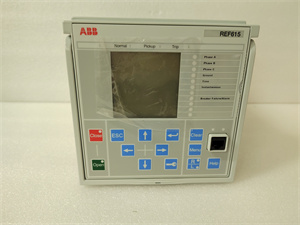

User-friendly operation: The relay features a high-resolution graphical LCD with intuitive menu navigation. The front panel includes 10 programmable LEDs, 5 pushbuttons, and a navigation wheel for local control. The REF615A_E supports ABB’s PCM600 and Asset Vision tools for advanced configuration and condition monitoring.
Robust construction: Designed for demanding environments, the relay withstands severe electromagnetic interference (4kV surge immunity) and mechanical vibrations. The compact design allows space-efficient panel mounting while maintaining excellent heat dissipation.
Typical Application Scenarios
The ABB REF615A_E HAFAABAAABE1BCA1XE is particularly valuable in industrial plants requiring enhanced safety and protection. In oil refineries and chemical plants, its arc flash protection significantly reduces risks associated with electrical faults in hazardous areas. The relay’s sensitive earth fault detection (50N/51N) ensures reliable operation in resistance-grounded networks common in industrial facilities.
For utility applications, this protection relay is deployed in distribution substations protecting feeders in complex network configurations. Its directional overcurrent capability makes it suitable for ring main systems with bidirectional power flow. Renewable energy installations benefit from its adaptive protection settings that accommodate generation fluctuations in solar parks and wind farms.

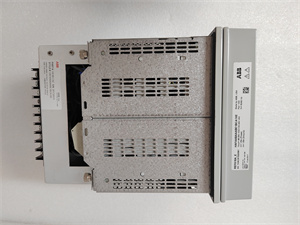

ABB REF615A_E HAFAABAAABE1BCA1XE
Related Model Recommendations
REF615A_F: Similar configuration with additional temperature inputs
REM615: Motor protection relay variant
RET615: Transformer protection version
REG615: Generator protection model
REF620: Advanced feeder protection with distance protection
REQ650: Bay controller with automation functions
REF615A_D: Basic version without arc flash protection
Installation, Commissioning and Maintenance Instructions
Installation preparation: The ABB REF615A_E HAFAABAAABE1BCA1XE should be mounted vertically on a panel or DIN rail using the provided hardware. Maintain minimum 50mm clearance above and below the unit for proper ventilation. All CT connections must be properly rated and secured according to IEC 61869 standards. For arc flash sensors, follow the manufacturer’s recommended mounting positions and angles.
Maintenance suggestions: Regular maintenance should include verification of protection settings, testing of LED indicators, and inspection of communication links. The relay’s comprehensive event recorder (1000+ events) and disturbance recorder facilitate periodic testing and troubleshooting. Firmware updates should be performed using ABB’s PCM600 software, with proper backup of configuration files.
Service and Guarantee Commitment
ABB offers a 60-month warranty for the REF615A_E HAFAABAAABE1BCA1XE, covering materials and workmanship defects. The relay undergoes rigorous type testing according to international standards. ABB’s global service network provides 24/7 technical support, with field engineers available for commissioning assistance and advanced diagnostics. Customers receive access to online resources including application guides, technical manuals, and firmware updates through the myABB portal. Extended service contracts are available covering preventive maintenance and software support.
