Description

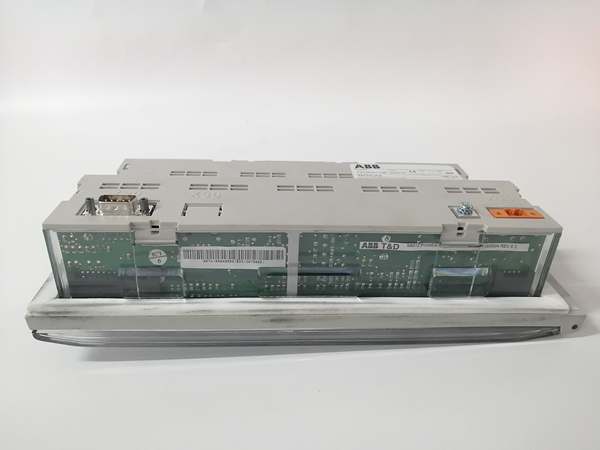

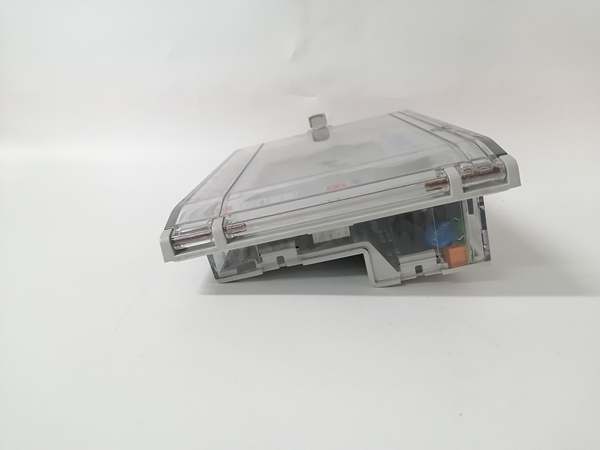

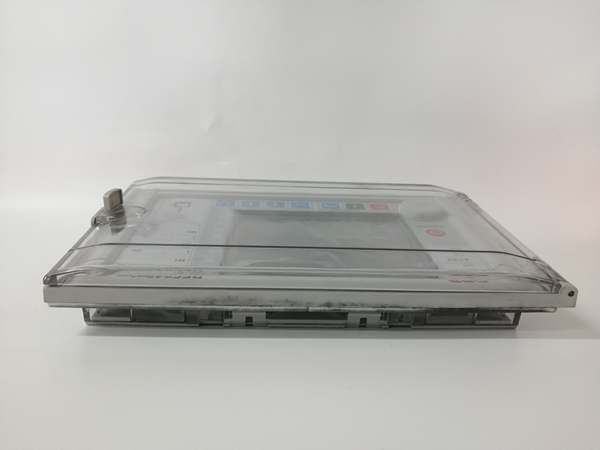

Product Core Brief
- Model: REF542PLUS, base OEM code 1VCF752000
- Brand: ABB
- Series: REF542plus Medium Voltage Bay Protection & Control Terminal
- Core Function: Scalable digital relay integrating MV feeder/transformer/motor protection, breaker bay control, power metering, fault recording and FUPLA logic for air/gas insulated switchgearABB Group.
- Product Type: Expandable Multi-Functional Bay Protection Terminal
- Key Specs: Up to 8 analog CT/VT channels | Configurable DI/DO expansion | SPA/LON/IEC 60870-5-103/IEC 61850 native protocols
- Note: End-of-production since 2020; limited factory residual sealed stock and fully bench-tested surplus stocked for legacy substation maintenanceABB Group.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Base Part Identifier | , 1VCF752000 |
| Auxiliary Supply Range | 80–265 V AC/DC universal input; max 32 W power draw |
| Analog Input Capacity | Max 8 galvanically isolated CT/VT channels (1A/5A CT, 100V VT selectable)eero |
| Binary I/O Configuration | Modular expansion; base variant 16DI / 12 power trip outputs; up to 32DI / 24DO full expanded |
| Protection License Tiers | Basic Low, Basic, Multi Low, Multi, Differential, Distance (enables ANSI 21/87 functions)eero |
| Core Protection ANSI Functions | 50/51 overcurrent, 67 directional OC, 51N/67N earth fault, 27/59 voltage, 49 thermal, 21 distance, 87 differential, 68 inrush blockingManualsLib |
| Onboard Communication Interfaces | SPA fiber/RS485, LON fiber, IEC 60870-5-103 fiber, RJ45 Ethernet (Modbus TCP/IEC 61850), IRIG-B GPS time sync input |
| Logic Programming | FUPLA functional block logic (IEC 61131-3 compliant) for bay interlocks and auto-reclosing |
| Event & Fault Storage | 250 non-volatile timestamped fault records; breaker operation counter retention through power losseero |
| Front Panel Rating | IP54 flush cabinet mount; rear terminal section IP20 |
| Operating Ambient Temp | -10 °C to +60 °C rack-mounted; derate above 55 °C |
| Storage Temperature Range | -40 °C to +70 °C |
| Mechanical Form Factor | 6U half-width 19-inch panel mount |
| Physical Dimensions | 224 mm W × 266 mm H × 238 mm D |
| Unit Weight | ~8.2 kg fully assembled |
| Compliance Standards | IEC 60255, IEC 61131-3, IEC 61850, UL508, SIL2 capable with certified license |
Product Introduction
This terminal supersedes the original REF542 with expanded analog channels and fiber-native communication hardware, built to cover all common 3–36 kV medium voltage assets including feeders, distribution transformers and large asynchronous motorsABB Group. Its modular I/O architecture allows site-specific channel sizing without unused hardware waste.
The direct trip channel delivers sub-1ms deterministic fault response for high-speed short-circuit isolation, while the integrated web server on Ethernet ports enables remote parameter viewing without dedicated configuration software. All metering, fault waveform and breaker cycle data persists in flash memory through full auxiliary power outagesManualsLib.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference full model and license code against OEM spare registry to reject counterfeit hardware; inspect LCD mimic panel, fiber transceiver ports and rear terminal blocks for scratches or moisture residue; log serial numbers and production batch codes for full traceability.
- Live Testing: Mount unit to standard 19-inch test rack, supply regulated 220 VAC/DC auxiliary power, inject multi-stage CT/VT analog fault signals, run continuous 24-hour protection element cycling and SPA/IEC 61850 Ethernet communication stress testing with event log validation.
- Electrical Testing: Use Fluke 115 multimeter and insulation tester to verify chassis ground resistance below 0.5Ω and isolation resistance above 10MΩ between auxiliary power, analog measurement and binary circuit groups.
- Firmware/Config Backup: Record exact embedded firmware revision via REF542conf configuration tool, photograph front panel communication DIP switch addresses, export complete protection setting groups and FUPLA logic to encrypted offline storage.
- Final QC & Packaging: Clean LCD surface with anti-static microfiber cloth, cap fiber ports with dust protection plugs, cover screw terminals with insulating caps, seal unit inside ESD shielding bag, attach printed QC test tag with technician ID and full test runtime timestamp before foam-lined transit carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Version Mismatch: Firmware builds newer than site REF542conf software block full FUPLA logic upload and disable distance/differential protection element calculation; cross-check OEM software compatibility matrix before downloading parameter sets.❗ CT Open-Circuit Safety Risk: Disconnecting current transformer wiring while the relay remains energized generates lethal high secondary voltage; short all CT terminals before disassembly per substation lockout protocols.❗ SPA/LON/Ethernet Bus Address Conflicts: Duplicate bay node addressing floods substation communication bus with broadcast traffic; capture high-resolution photos of original front-panel DIP switch layout prior to removal.❗ Auxiliary Supply Underrating: The unit draws peak 32 W during simultaneous trip output actuation; shared cabinet DC power supplies with multiple protection relays trigger voltage sag and incomplete relay boot sequences.❗ ESD Dangers: Unwristed technician contact with rear exposed PCB traces corrupts flash-based protection settings and IRIG-B clock backup circuits; field service logs show ungrounded handling destroyed this terminal with over $5,100 in hardware and substation outage labor costs.
4-step replacement guide:
- Pre-install: Lock out and tag out substation auxiliary supply, short all CT secondary wiring, fit certified anti-static wrist strap, photograph analog CT/VT wiring, binary DI/DO terminal routing and fiber/Ethernet communication DIP switch positions.
- Removal: Unfasten rear terminal screw blocks, disconnect SPA/LON fiber jumpers and RJ45 Ethernet cables, release front panel mounting latches, slide the unit forward out of the 6U rack cutout.
- Install: Seat new unit flush to panel frame, lock mounting latches, replicate original DIP communication address settings, reterminate all CT/VT, DI/DO and bus wiring, remove CT shorting jumpers post-termination.
- Power-on Test: Restore auxiliary supply power, upload matching firmware and protection setting groups, inject simulated short-circuit and earth fault signals to validate trip element operation, confirm event logging and stable SCADA communication via Ethernet SPA bus.
FAQ (Frequently Asked Questions)
Q: Can directly replace REF541KM118AAAA without full rework?A: Mechanical rack form factor matches, but the unit supports extra analog channels and distance/differential protection unavailable on REF541. Drop-in swap requires reconfiguring all bay interlock FUPLA logic and remapping SCADA point lists to match expanded I/O addressing.Q: Does the bay terminal support hot-swapping while the substation auxiliary bus remains energized?A: Hot-swapping is fully unsupported. Removing the unit mid-operation opens CT circuits and drops breaker control interlocks, creating arc flash hazards and uncontrolled breaker state transitions; full auxiliary power lockout/tagout is mandatory for replacement.Q: What warranty coverage applies to stocked hardware?A: Remaining factory-new OEM legacy spares carry a 12-month manufacturer warranty covering all measurement, protection and communication circuits. Bench-tested surplus inventory ships with a 6-month functional warranty; physical damage from CT open-circuit transients, miswiring or ESD voids all coverage terms.Q: Has ABB issued formal EOL documentation for this model?A: End-of-production status active since 2020; OEM no longer manufactures new batches, only limited residual surplus stock exists for legacy distribution substation fleets. OEM recommends REF615/REF620 series relays as modern drop-in upgrade alternativesABB Group.Q: Will protection setting groups and FUPLA bay automation logic persist after swapping the terminal?A: All trip curves, fault thresholds and custom interlock logic reside in internal flash memory. Back up the full project database from the old unit before removal and re-download to the new terminal post-install; firmware mismatches corrupt setting upload sequences.Q: What fiber communication hardware is compatible with the SPA/LON optical ports?A: Valid fiber jumpers include multi-mode ST glass fiber for LON bus and plastic snap-in fiber for SPA bus; maximum communication distance reaches 2000 m with glass fiber media. Cross-reference the REF542plus hardware manual for baud rate and bus node limits.Q: Can this unit be deployed for high-voltage transmission line main protection?A: Native distance protection functionality meets distribution feeder requirements only; transmission line protection demands higher resolution fault locator algorithms available on ABB REF630 series relays, not this terminal.
