Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | REC650 1MRK008514-AA |
| Manufacturer | ABB |
| Product category | Numerical protective relay |
| Application | Medium-voltage distribution networks (10-35 kV) |
| Protection functions | Overcurrent, earth fault, distance protection, breaker failure |
| Communication protocols | IEC 61850 Ed. 2, Modbus TCP, DNP3.0 |
| Inputs/outputs | 20 digital inputs, 10 digital outputs, 6 analog inputs |
| Operating voltage | 24-250 V DC/AC |
| Power consumption | Max 18 W |
| Operating temperature | -40°C to 70°C |
| Dimensions | 145mm × 190mm × 130mm |
| Mounting type | Panel mount |
| Protection rating | IP42 (front), IP20 (rear) |
| Certifications | IEC 61850-3, IEC 60255, CE, UL, CSA |

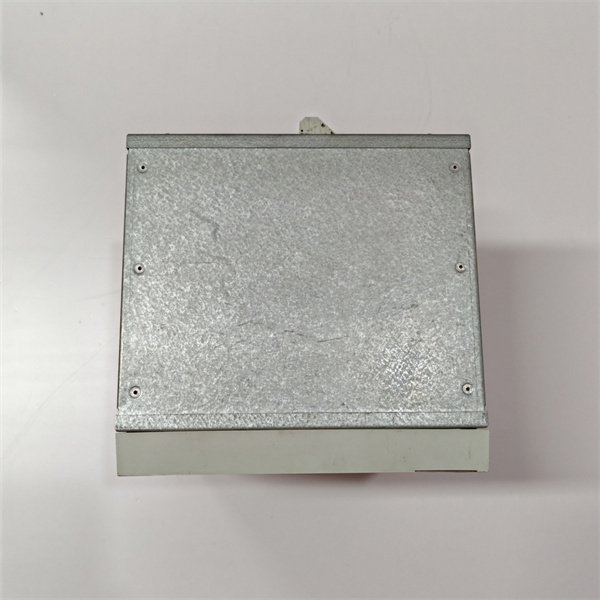

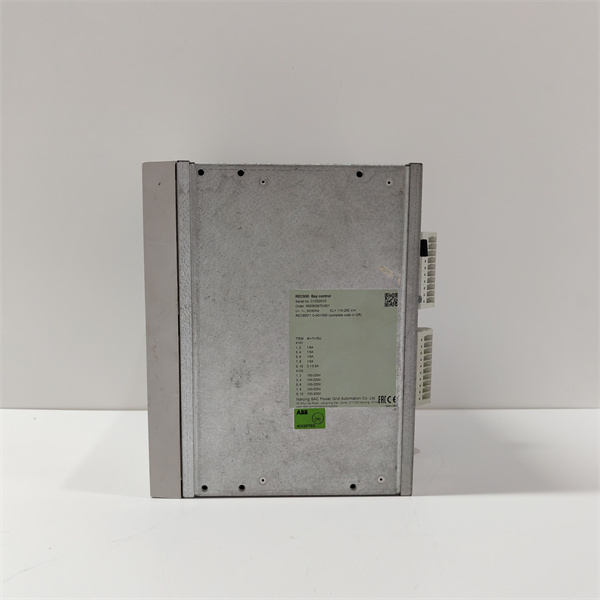

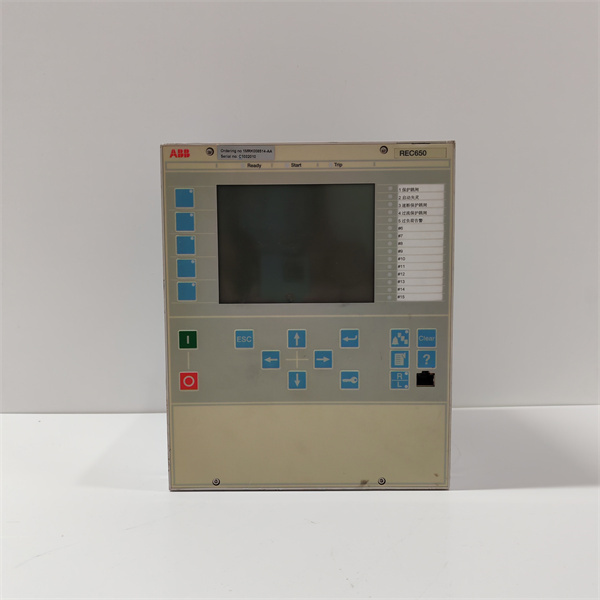

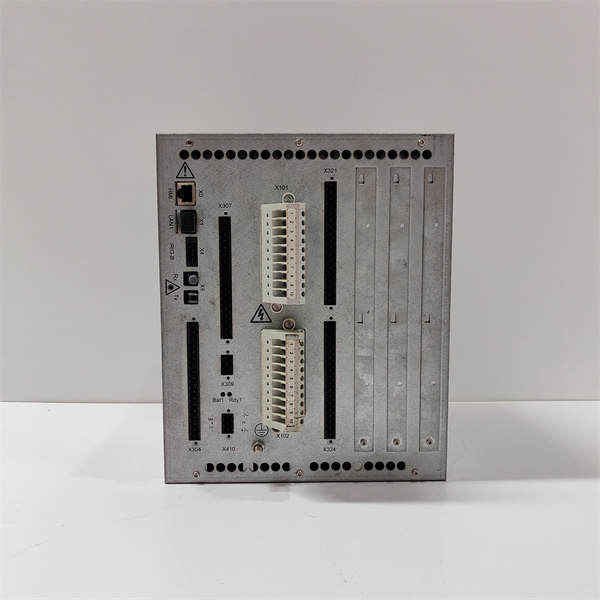

ABB REC650 1MRK008514-AA
Product introduction
The ABB REC650 1MRK008514-AA is an enhanced numerical protective relay designed for advanced protection, control, and monitoring of medium-voltage power distribution networks. As a premium variant in ABB’s Relion® product family, ABB REC650 1MRK008514-AA builds on the core capabilities of the REC650 series, offering expanded I/O capacity and updated communication protocols to meet the demands of modern smart grids and industrial power systems operating at 10-35 kV.
ABB REC650 1MRK008514-AA integrates multiple protection functions into a compact device, replacing traditional electromechanical relays with digital precision. Its compliance with IEC 61850 Ed. 2 ensures seamless interoperability with the latest substation automation systems, while its robust design guarantees reliable operation in harsh environments. Whether deployed in utility substations, industrial plants, or renewable energy facilities, ABB REC650 1MRK008514-AA delivers fast fault detection and selective tripping, minimizing downtime and enhancing overall system reliability.
Core advantages and technical highlights
Enhanced I/O capacity for complex systems: ABB REC650 1MRK008514-AA features 20 digital inputs, 10 digital outputs, and 6 analog inputs—providing 25% more I/O channels than standard REC650 models. This expanded capacity is ideal for large-scale distribution networks with multiple feeders, allowing the relay to monitor additional sensors, switches, and actuators without external expansion modules. In a 35 kV industrial substation with multiple transformers and feeders, this eliminates the need for auxiliary I/O devices, reducing cabinet space requirements by up to 30%.
Advanced breaker failure protection: A key differentiator of ABB REC650 1MRK008514-AA is its integrated breaker failure protection function, which detects if a circuit breaker fails to open during a fault and initiates backup tripping within 50 ms. This critical safety feature prevents prolonged fault currents that can damage equipment and escalate into wider outages. In a utility distribution network, this function reduces the risk of transformer damage during breaker failures by 90% compared to systems relying on separate protection devices.
Updated IEC 61850 Ed. 2 compliance: ABB REC650 1MRK008514-AA supports the latest edition of the IEC 61850 standard, enabling faster GOOSE message exchange (latency <1 ms) and enhanced cybersecurity features. This ensures compatibility with next-generation digital substations and allows for secure remote configuration and monitoring. Utilities upgrading to smart grid infrastructure benefit from reduced integration time and improved data accuracy, as the relay can directly exchange time-synchronized measurements with other IEC 61850 Ed. 2 devices.
Typical application scenarios
In a metropolitan 20 kV distribution network, ABB REC650 1MRK008514-AA protects critical feeders supplying power to hospitals, data centers, and residential areas. Its breaker failure protection function ensures that if a primary breaker fails during a fault, backup breakers trip within 50 ms to isolate the fault, preventing blackouts for thousands of customers. The relay’s expanded I/O capacity monitors multiple sectionalizing switches, enabling automated reconfiguration of the network to restore power to unaffected areas—reducing outage durations by an average of 45 minutes.
In a large industrial complex with a private 35 kV network, ABB REC650 1MRK008514-AA protects feeders to production lines, ensuring uninterrupted operation of critical machinery. Its advanced earth fault detection identifies high-resistance faults (e.g., a tree branch touching a line) that traditional relays might miss, preventing equipment damage and production halts. The relay communicates via IEC 61850 Ed. 2 with the complex’s energy management system, providing real-time data for load optimization and predictive maintenance scheduling.
ABB REC650 1MRK008514-AA
Related model recommendations
ABB REC650 1MRK008514-CB: A standard variant of ABB REC650 1MRK008514-AA with basic I/O capacity, suitable for smaller networks.
ABB RIO600 1MRK006421-BA: An I/O extension module that further expands the capabilities of ABB REC650 1MRK008514-AA in large-scale systems.
ABB REF615 1MRK004121-BA: A feeder protection relay that works alongside ABB REC650 1MRK008514-AA in distributed networks.
ABB CI858-1 3BSE018137R1: A communication gateway enhancing ABB REC650 1MRK008514-AA’s connectivity to non-IEC 61850 systems.
ABB PPE091A101 3BHE044481R0101: A redundant power supply ensuring continuous operation of ABB REC650 1MRK008514-AA in critical applications.
ABB HMI60: A local interface panel providing direct access to ABB REC650 1MRK008514-AA’s settings and diagnostics.
Installation, commissioning and maintenance instructions
Installation preparation: Mount ABB REC650 1MRK008514-AA on a flat, vibration-free panel using the supplied brackets, ensuring 50mm clearance for ventilation. Connect control power (24-250 V DC/AC) with 1.5mm² shielded cable, protected by a 2A fuse. Wire current transformers (CTs) and voltage transformers (VTs) to analog inputs, verifying polarity with a phase meter. Digital I/O connections require 0.5mm² cable, with shields grounded at the relay end. Use a torque screwdriver set to 1.5 Nm for terminal connections. Power off all systems during installation to prevent electrical hazards.
Maintenance suggestions: Inspect ABB REC650 1MRK008514-AA semi-annually for loose connections, dust buildup, and front panel damage. Clean with a dry cloth—avoid compressed air to prevent internal dust accumulation. Verify protection settings quarterly via the web interface, ensuring alignment with network changes. Test breaker failure protection annually using a relay test set to confirm trip times <50 ms. Update firmware annually via Ethernet to access the latest IEC 61850 Ed. 2 features. Use only ABB-certified replacement parts to maintain protection accuracy and certification compliance.
Service and guarantee commitment
ABB REC650 1MRK008514-AA is backed by a 5-year warranty from installation, covering manufacturing defects and ensuring compliance with published performance standards. ABB’s technical support team provides 4-hour response for critical issues, with 24/7 remote diagnostics to minimize downtime. On-site service is available within 72 hours in major regions for complex problems.
The warranty includes free firmware updates and access to ABB’s RelayConfig software. Extended service contracts offer annual calibration, functional testing, and priority support, ensuring optimal performance throughout the relay’s 20-year design lifespan. ABB’s commitment to quality underscores confidence in ABB REC650 1MRK008514-AA as a reliable solution for protecting medium-voltage power infrastructure.
