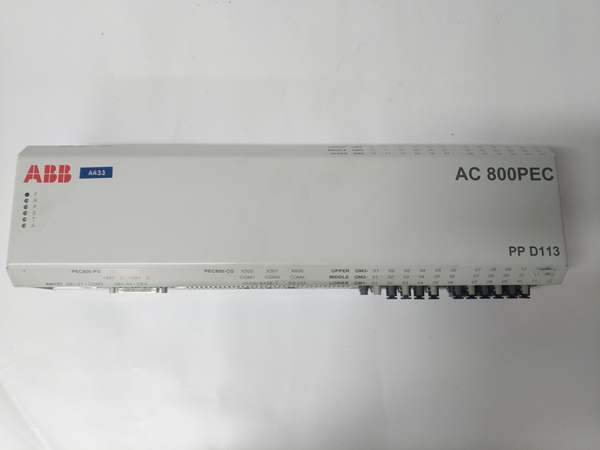

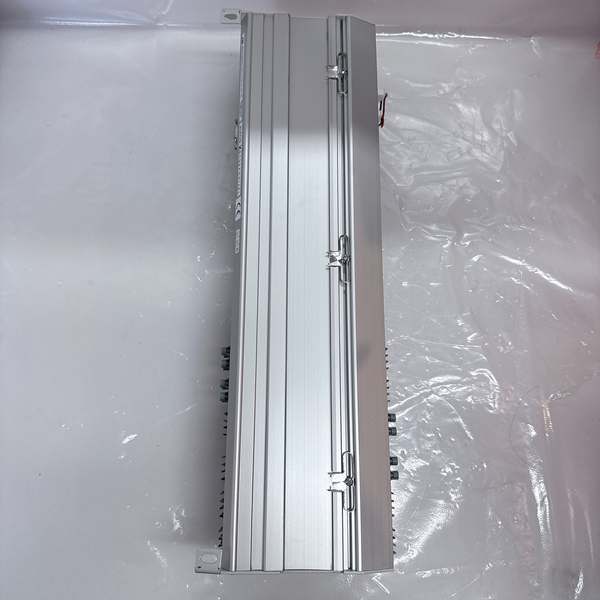

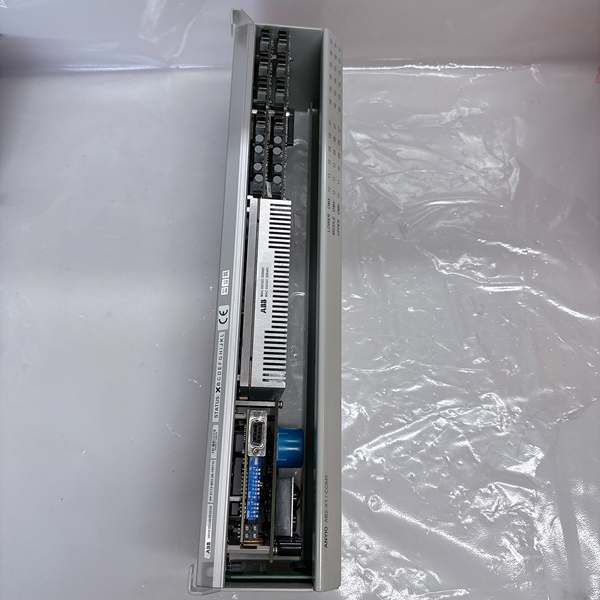

ABB PPD113 | S800 I/O Rack Power Distribution Module & AC800M DCS

  • Model: PPD113 B03-25-100110 3BHE023584R2534 (PPD113 = base model; 3BHE023584R2534 = assembly P/N)
  • Alt. P/N: N/A (factory-original S800 I/O power distribution unit)
  • Series: ABB S800 I/O Series (for AC800M Distributed Control System)
  • Type: Fused power distribution module (backplane-integrated)
  • Key Feature: 24VDC input, 16 fused output channels, 2A per-channel fuses, LED fault indicators, 1kV AC isolation, -25°C to +65°C operation
  • Primary Use: Distributing regulated 24VDC power from redundant supplies (e.g., PCD230A) to S800 I/O modules in industrial DCS racks
Get a Quote
In Stock
Manufacturer:
Part number: ABB PPD113
Our extensive catalogue, including : ABB PPD113 , is available now for dispatch to the worldwide. Brand:

Description

Key Technical Specifications

  • Model Number: PPD113 B03-25-100110 3BHE023584R2534
  • Manufacturer: ABB Industrial Automation Division
  • Input Power: 24VDC ±0.5% (from S800 redundant power supplies like PCD230A)
  • Output Configuration: 16 independent fused channels (1 per S800 I/O module slot)
  • Fuse Rating: 2A slow-blow (ABB part: 1SFL500006R0001; field-replaceable)
  • Isolation Rating: 1kV AC (input bus to output channels); 500V AC (channel-to-channel)
  • Operating Temperature: -25°C to +65°C (-13°F to +149°F)
  • Mounting Type: Rack-mount (S800 I/O rack, 1U height), backplane-integrated with mechanical latch
  • Physical Dimensions: 483mm (W) × 44mm (H) × 300mm (D) (19″ rack-compatible)
  • Weight: 1.2kg (2.6lbs)
  • Certifications: CE, UL 508, IEC 61131-2, RoHS 2.0, ATEX Zone 2
  • Compatibility: ABB S800 I/O racks (IM801/IM810), PCD230A redundant power supplies, S800 I/O modules (DSAI146, DSDI110A, DSAI146)
  • Diagnostic Capability: Per-channel LED indicators (green = fuse OK, red = fuse blown), common fault dry-contact output
  • Protection Features: Overcurrent (fuse-limited), short-circuit protection, reverse-polarity protection
    ABB PPD113 B03-25-100110 3BHE023584R2534

    ABB PPD113 B03-25-100110 3BHE023584R2534

Field Application & Problem Solved

In industrial DCS environments—refineries, chemical plants, power plant control rooms—S800 I/O racks require reliable, protected power distribution to individual modules. Generic power distribution blocks lack integration with ABB’s rack architecture, lack per-module fuse protection, and offer no diagnostic visibility into blown fuses. A Texas refinery lost $120k in a 3-hour outage when a short circuit in one I/O module took down an entire rack (powered by a generic distribution block), damaging 8 additional modules. A Pennsylvania chemical plant spent $18k annually troubleshooting “no power” faults, as generic blocks provided no way to quickly identify blown fuses.
This module solves these issues by acting as a dedicated power distribution hub for S800 racks. You’ll find it in: refinery distillation unit I/O racks, coal plant boiler control panels, pharmaceutical batch reactor I/O cabinets, and offshore platform DCS systems. Its core value is ABB-native integration + per-module fused protection + diagnostic visibility. Unlike generics, it’s engineered to mate with S800 backplanes, ensuring consistent power delivery and eliminating wiring errors. For an Alaskan natural gas plant, the PPD113’s LED indicators reduced fuse-related troubleshooting time from 2 hours to 5 minutes per fault, cutting annual downtime by 75%.

Installation & Maintenance Pitfalls (Expert Tips)

  • Fuse Rating Matching: Never Use Higher-Amperage Fuses: Rookies replace 2A fuses with 5A to “prevent blowing,” which bypasses protection and risks module damage. An Ohio steel mill’s DSDI110A module fried during a short circuit because a technician installed a 5A fuse. Always use ABB-approved 2A slow-blow fuses (part 1SFL500006R0001)—higher ratings void module warranties and create fire hazards.
  • Wiring Torque: 2.0Nm for Power Bus Connections: Loose input/output lugs cause voltage drops and overheating. A Louisiana refinery’s PPD113 overheated after 6 months due to under-torqued DC bus connections. Use a precision torque screwdriver to apply 2.0Nm to all power terminals—use anti-oxidant paste on copper lugs to prevent corrosion in humid environments.
  • Fuse Replacement: Power Down the Rack First: Rookies hot-swap fuses while the rack is powered, risking arc flash or short circuits. A Florida food processing plant’s technician suffered a minor arc burn when replacing a fuse live. Always power down the S800 rack or isolate the PPD113 via the power supply’s bypass switch before changing fuses.
  • Ignoring Diagnostic LEDs: Don’t Overlook Blown Fuse Indicators: Rookies assume “no power” means a failed power supply, wasting hours troubleshooting. A Michigan paper mill’s I/O module was offline for 4 hours until a technician noticed the PPD113’s red LED—only a blown fuse was the issue. Train operators to check LED status first for power-related faults.
  • Compatibility with Power Supplies: Only Use Approved S800 Supplies: Generic 24VDC supplies have unstable voltage ripple, which corrupts analog signals. A North Carolina power plant’s DSAI146 module gave erratic readings until they replaced a generic supply with the ABB PCD230A. The PPD113 is calibrated for ABB’s regulated supplies—mixing brands causes performance issues.
    ABB PPD113 B03-25-100110 3BHE023584R2534

    ABB PPD113 B03-25-100110 3BHE023584R2534

Technical Deep Dive & Overview

The ABB PPD113 B03-25-100110 3BHE023584R2534 is a purpose-built power distribution module engineered to deliver protected, monitored power to ABB’s S800 I/O racks. At its core, it acts as an interface between redundant power supplies (e.g., PCD230A) and individual I/O modules, distributing 24VDC across 16 fused channels—one for each module slot in the S800 rack.
Unlike generic distribution blocks, the PPD113 features ABB’s proprietary backplane connectors, ensuring seamless integration with S800 racks without custom wiring. Each channel is protected by a 2A slow-blow fuse, which limits current during short circuits or module faults, preventing damage to adjacent modules and the rack backplane. The module’s 1kV AC isolation blocks electrical interference from industrial equipment, a critical feature in refineries and power plants with high electromagnetic noise.
What sets it apart is its diagnostic design: per-channel LEDs provide instant visual feedback on fuse status, and a common fault dry-contact output can be tied to the AC800M DCS for remote alerts. This eliminates the need to physically inspect fuses during troubleshooting, saving valuable time in 24/7 operations. The module’s rugged construction includes a conformal-coated PCB to resist dust and humidity, and its compact 1U form factor fits seamlessly into S800 rack enclosures.
For facilities relying on S800 I/O racks, the PPD113 isn’t just a power distribution component—it’s a critical layer of protection and visibility that ensures DCS reliability. By isolating module faults, enabling quick troubleshooting, and integrating seamlessly with ABB’s control ecosystem, it minimizes downtime and reduces maintenance costs in harsh industrial environments.
