ABB PPD113 3BHE023784R2630 | AC 800PEC Power Electronics CPU

Description

Product Introduction

The ABB 3BHE023784R2630 is the core CPU module of the AC 800PEC​ system, engineered specifically for applications where microsecond-level precision is mandatory. Unlike general-purpose PLCs (like AC 800M), this unit is optimized for power electronics control, such as generator excitation (UNITROL 6000), high-power rectifiers, and large variable-speed drives.

This specific unit (R2630) typically comes pre-configured with UFD128 optical modules​ in slots U7-U9 for high-speed fiber-optic communication with thyristor/IGCT gates. It runs on a 750 MHz RISC processor with a 64-bit FPU, enabling control cycles as fast as 100 µs. It is programmed using Control Builder M / AC 800PEC​ with IEC 61131-3 languages .

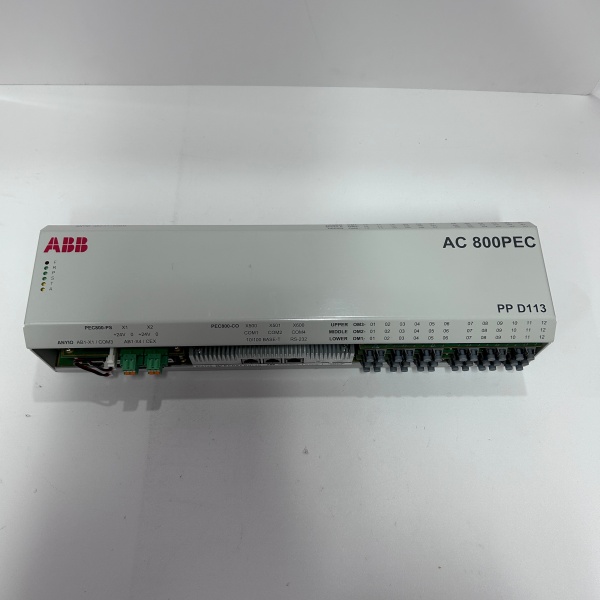

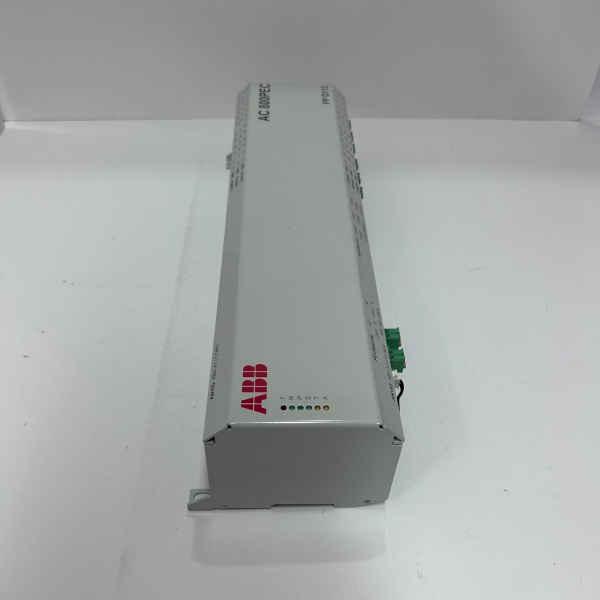

ABB PPD113 3BHE023784R2630

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification:​ Verify the 3BHE023784R2630label and laser-etched B01-26-111000on the module face. Check the gold-finger edge connector for tarnishing or slot insertion wear/scratches.
2. Live Boot Test:​ Seat in a live AC 800PEC rack with 24 Vdc. Monitor “STATUS” and “RUN” LEDs. It must pass POST and reach “Run” mode without “Watchdog” or “Hardware Fault” errors within 30s.
3. Bus & Slot Scan:​ Connect via Control Builder. Verify the backplane detects the CPU and any inserted modules (UFD128/Anybus). Perform a loopback test on optical ports to ensure TX/RX integrity.
4. Performance Check:​ Download a test project with a 100µs task. Monitor CPU load; it should remain stable <30% on idle. Check 24V rail stability under processing load with a Fluke.
5. Final QC & Packaging:​ Check battery status (if equipped for NVRAM). Clean edge connectors with isopropanol. Wrap in conductive ESD foam with desiccant. Label “QC Passed – Boot/Comms OK”.

Replacement Pitfall Guide

❗ PEC vs M Series:​ This is AC 800PEC, NOT AC 800M (PM8xx). You cannot run standard AC 800M programs on this. It requires Control Builder PEC​ licensing and specific power-electronic I/O (e.g., UAD/UFD modules).

❗ Variant Suffix (B01-26…):​ The suffix defines hardware capability (I/O count, fiber type). Swapping an R2630into a system expecting R2530or R0123may cause I/O mismatch faults​ if the physical slot population (U4-U12) differs. Always mirror the old unit’s sub-module configuration.

❗ Fiber Handling:​ The UFD128 slots use fiber optics. Never​ look directly into the Tx port. Ensure dust caps are removed only during insertion, and use approved fiber cleaning tools—dust causes “Link Down” faults in noisy drive environments.

❗ Control Cycle Tuning:​ Because this runs 100µs cycles, task scheduling​ is critical. Porting old code without adjusting execution classes can overload the 750MHz CPU, causing cycle overruns and process instability.

❗ Firmware Match:​ The firmware on the must align with the Control Builder PEC​ version on your engineering station. A mismatch (e.g., v6.0 HW on v5.1 SW) triggers a “Version Mismatch” and blocks downloads.

Keep these in mind and you’ll cut 90% of rework time.

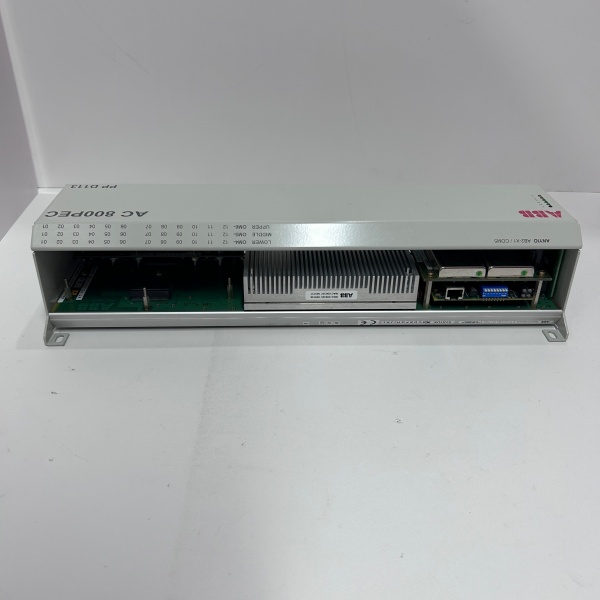

ABB PPD113 3BHE023784R2630

Compatibility Matrix & Benchmarks

• ​ Direct/Upgrade​ — Usually compatible if slot config matches; R2630 is often a later revision/service replacement.
• ​ Incompatible​ — Different OS, different backplane (CEX vs PEC Bus), different I/O family.
• ​ Core Component​ — Acts as the Main Processor for excitation control logic.
• Control Cycle:​ 100 µs (Minimum deterministic task)
• Processor Perf:​ 750 MHz RISC (Handles complex PWM/Firing algorithms)
• Optical Links:​ 50/125 µm Multimode Fiber (Typical for UFD modules)
