Description
Product Core Brief
- Model: PPC907BE 3BHE024577R0101
- Brand: ABB
- Series: AC 800PEC Power Electronic Control Platform
- Core Function: Executes microsecond-level power converter closed-loop regulation, fiber-based redundant synchronization and grid fault detection for excitation, SVC, wind turbine and ACS2000 medium voltage drive racks.
- Product Type: High-Speed Power Electronic Main Processor Module
- Key Specs: 800MHz PowerPC e750 | 512MB RAM / 2GB Flash | Dual Ethernet + Fiber Redundancy Link
- Note: End-of-production OEM hardware; limited residual factory sealed stock and fully bench-tested surplus stocked for power asset maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Identifier | , 3BHE024577R0101 |
| Processing Core | PowerPC e750 RISC, 800 MHz clock speed |
| Runtime Memory | 512 MB DRAM for converter control algorithms and real-time tag buffers |
| Non-Volatile Storage | 2 GB onboard flash for firmware, tuning curves and fault waveform archives |
| Operating Supply Voltage | 24 VDC, 18–32 VDC tolerance, max 14 W power dissipation |
| Rack Backplane Interface | AC 800PEC proprietary high-speed power bus for gate drive I/O expansion |
| Onboard Communication Interfaces | 2× 10/100 Mbps RJ45 Ethernet; 1× fiber optic peer-to-peer redundancy sync port; 1× RS232 service debug port |
| Supported Industrial Protocols | Modbus TCP, IEC 61850, Profibus DP, proprietary PEC internal fieldbus |
| Deterministic Control Loop Speed | Minimum 0.08 ms converter regulation scan for grid power loops |
| Redundancy Capability | 1oo2 hot standby pairing with matched units, <15 ms bumpless switchover via fiber link |
| Operating Ambient Temperature | -20 °C to +60 °C ventilated power cabinet rack mounting |
| Storage Temperature Range | -40 °C to +85 °C |
| Enclosure Protection Rating | IP20 rear PCB, conformal coated for corrosive gas power plant environments |
| Physical Dimensions | 225 mm L × 118 mm W × 42 mm D |
| Net Unit Weight | 0.9 kg |
| Compliance Standards | CE, UL508, RoHS, ATEX Zone 2, IEC 61131-3, IEC 62477 |
| Mount Format | Standard 19-inch DIN subrack slide-in module design |
Product Introduction

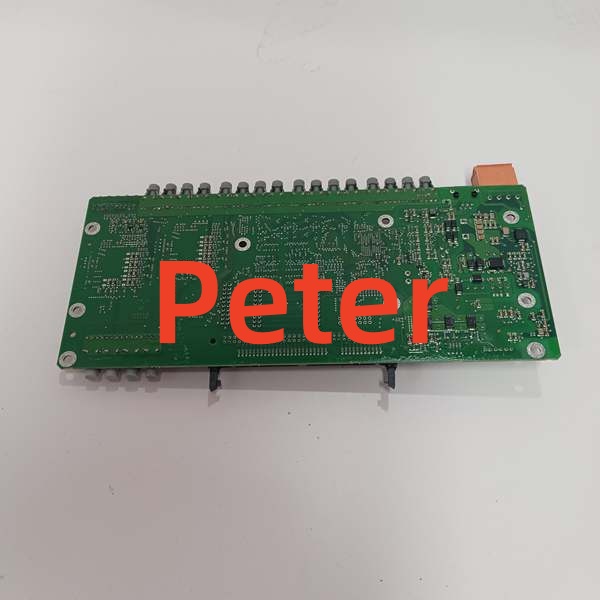

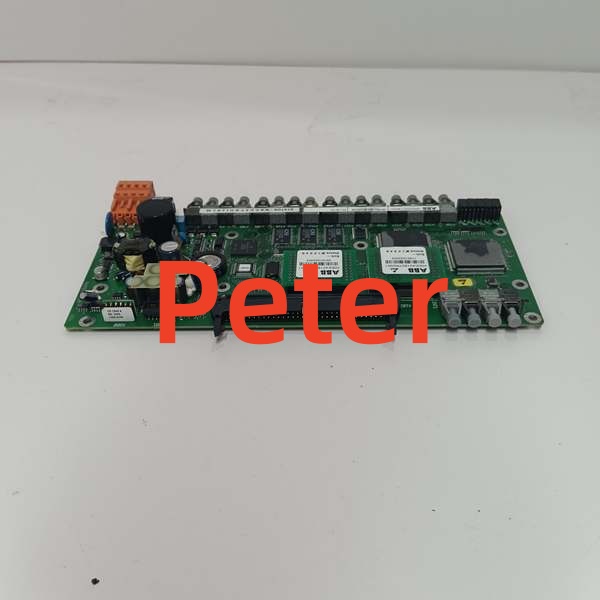

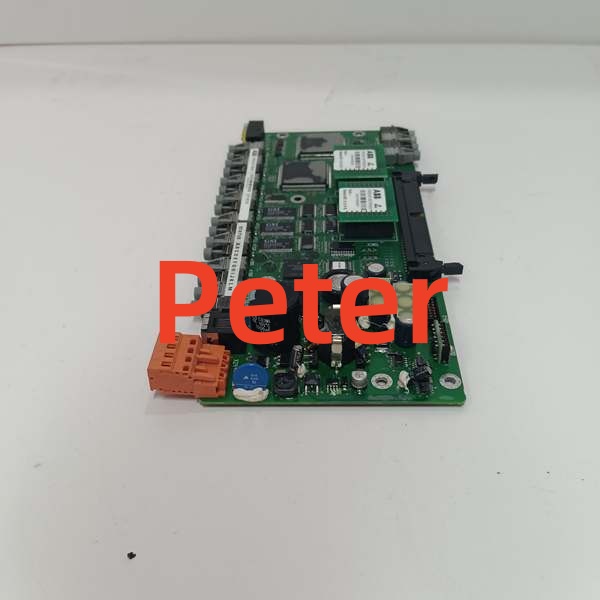

This board is the flagship real-time processing core for ABB AC 800PEC power conversion racks, built with elevated clock speed and expanded memory to run complex grid code compliance algorithms for medium voltage drives, generator excitation units and renewable energy converters. Fiber optic redundancy cabling eliminates electrical noise interference present on copper RS485 sync links used in earlier PPC905AE101 variants.
Dual isolated Ethernet ports separate supervisory SCADA traffic from internal converter fieldbus communication, stabilizing control loop response during heavy plant data polling. The large flash bank stores full fault transient waveforms through complete rack power outages for post-event root cause analysis.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference module serial numbers against OEM spare registry to reject counterfeit hardware; inspect gold edge backplane connectors, fiber transceiver ports and conformal PCB coating for scratches or oxidation; log batch codes and serial IDs for full traceability records.
- Live Testing: Seat the unit into matching AC 800PEC backplane, supply stabilized 24VDC bench power, load reference converter control logic, run continuous 24-hour cyclic grid simulation and Ethernet/fiber redundancy handshake stress testing with automated failover cycling.
- Electrical Testing: Use Fluke 115 multimeter and insulation resistance tester to validate chassis ground resistance below 0.5Ω and PCB power-signal insulation resistance above 10MΩ.
- Firmware/Config Backup: Record exact factory firmware revision via ABB Control IT engineering software, photograph onboard DIP switch rack addressing settings, export full converter tuning parameter datasets to encrypted offline storage.
- Final QC & Packaging: Clean exposed PCB surfaces with anti-static solvent, cap fiber transceiver ports with protective dust covers, seal the module inside static shielding bag, attach printed QC test tag with technician ID and test timestamp before foam-lined anti-shock carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Firmware builds newer than site Control IT software block high-speed converter bus scanning and disable grid synchronization loops; cross-check OEM software compatibility matrix before flashing the unit.❗ Fiber Cable Polarity & Contamination: Scratched or reversed fiber jumpers break redundancy sync and trigger continuous grid oscillation alarms; inspect fiber end faces with a microscope before installation and label cable ends during disassembly.❗ DIP Switch Address Conflicts: Duplicate rack node addressing floods the plant Ethernet bus with broadcast errors; capture high-resolution photos of original switch layout prior to removal.❗ Power Supply Underrating: The unit draws peak 14W during cold startup; shared rack 24VDC supplies with multiple processing boards trigger voltage sag and incomplete converter boot sequences.❗ ESD Dangers: Unwristed technician contact with exposed PCB traces corrupts flash tuning parameter storage; field service logs show ungrounded handling destroyed this board with over $4,100 in hardware and power asset outage labor costs.
4-step replacement guide:
- Pre-install: De-energize full AC 800PEC rack 24VDC supply, fit certified anti-static wrist strap, photograph power wiring, Ethernet/fiber cabling and DIP switch positions.
- Removal: Release rack slide latches, disconnect 24VDC power terminals, fiber sync jumper and all serial/Ethernet communication wiring, slide the unit fully out of the 19-inch subrack slot.
- Install: Align the new board’s edge connector with the backplane power bus, lock mounting latches, replicate original DIP switch node addressing, clean fiber cable end faces and reterminate all communication and power wiring.
- Power-on Test: Restore 24VDC rack power, upload matching firmware and converter tuning parameter set, execute full backplane I/O scan and run 30-minute steady-state grid regulation test with manual redundancy failover verification.
FAQ (Frequently Asked Questions)
Q: Can this board directly replace PPC905AE101 without full parameter rework?A: Mechanical rack compatibility exists, but the uses upgraded fiber redundancy hardware and expanded memory architecture. Drop-in swap requires reloading full plant tuning parameters to resolve communication latency and sync timeout faults.Q: Does the board support hot-swapping while power converters remain grid-connected?A: Hot-swapping is fully unsupported. Removing the unit mid-operation cuts all gate drive control signals, triggering immediate converter trip and potential grid voltage instability; full rack 24VDC power shutdown is mandatory for replacement.Q: What warranty coverage applies to stocked hardware?A: Remaining factory-new OEM spares carry a 12-month manufacturer warranty covering all onboard processing, fiber transceiver and power circuits. Bench-tested surplus inventory ships with a 6-month functional warranty; physical damage from miswiring, ESD or overvoltage voids all coverage terms.Q: Has ABB issued an official EOL notice for this hardware?A: Formal end-of-production status applies; OEM no longer manufactures new batches, only limited residual surplus stock is available for existing excitation, SVC, medium voltage drive and renewable converter sites. Verify with OEM datasheet for modern PEC upgrade controller alternatives.Q: Will converter tuning curves and grid protection parameters persist after swapping the board?A: Loop gain setpoints, voltage ride-through curves and fault thresholds do not store natively on the hardware. Back up the full parameter database from the old board before removal and re-download to the new unit post-install; firmware mismatches corrupt parameter upload sequences.Q: What I/O and communication accessories pair with this processor?A: Compatible AC 800PEC rack accessories include high-speed gate drive interface cards, analog grid measurement modules and Ethernet to IEC 61850 protocol converters. Cross-reference the AC 800PEC system hardware manual for maximum rack expansion limits.Q: Can this unit operate for general discrete manufacturing automation outside power conversion assets?A: Native firmware is hard-coded exclusively for power electronic switching, grid synchronization and excitation control algorithms. Repurposing for standard factory PLC logic requires custom firmware rework which ABB does not authorize or provide technical support for.
