Description
Product Core Brief

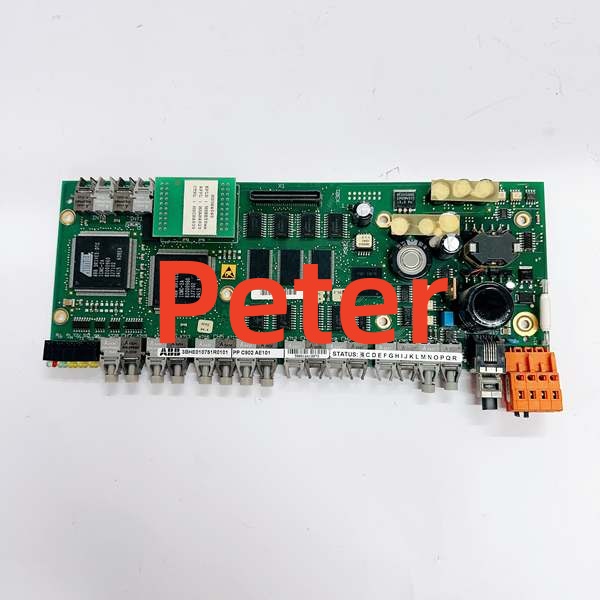

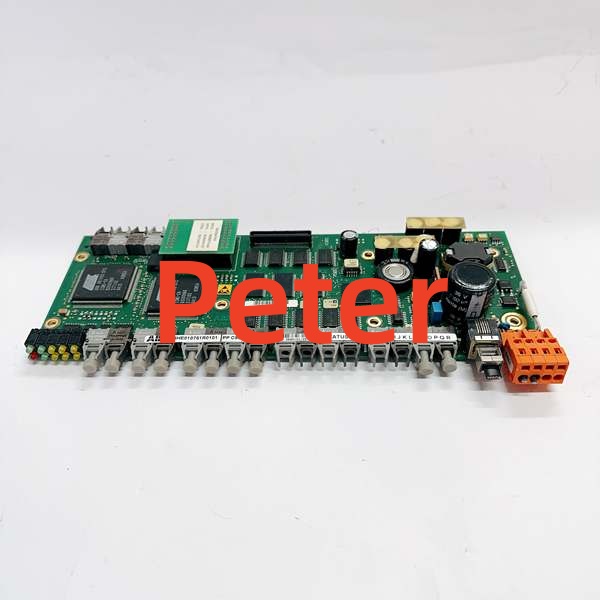

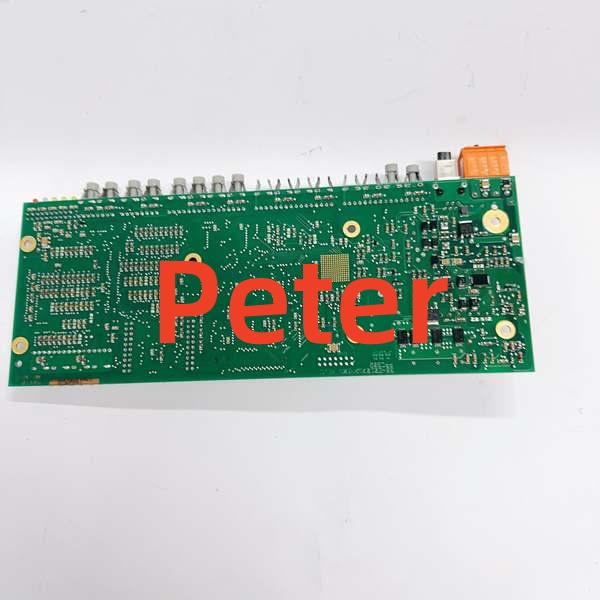

- Model: PPC902AE101 3BHE010751R0101
- Brand: ABB
- Series: Symphony Harmony DCS / APPLIC Drive Control Platform
- Core Function: Runs real-time turbine, generator and drive regulation logic, manages rack I/O bus and bidirectional SCADA communication for power and heavy industry racks.
- Product Type: Slide-In DCS Main Processor Control Board
- Key Specs: 24 VDC input | Onboard Ethernet + RS485 | APPLIC embedded motor control algorithms
- Note: Limited OEM residual spare production; factory new and fully bench-tested surplus stock available for legacy plant maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Code | PPC902AE101, 3BHE010751R0101 |
| Architecture | 32-bit embedded real-time processor |
| Runtime Memory | 64 MB DRAM for control logic & process tags |
| Non-Volatile Storage | 16 MB flash for firmware, parameters and fault logs |
| Operating Power Supply | 24 VDC, 18–32 VDC tolerance, max 8 W power draw |
| Rack Interface | Symphony Harmony proprietary backplane bus for analog/digital I/O expansion |
| Onboard Communication Ports | 1× 10/100Mbps RJ45 Ethernet; 1× isolated RS485 fieldbus; 1× RS232 service debug port |
| Supported Protocols | Modbus TCP, Modbus RTU, proprietary Symphony plant bus |
| Native Control Libraries | APPLIC drive regulation, generator voltage/frequency closed-loop control |
| Minimum Control Scan Cycle | 1 ms for high-speed power loop regulation |
| Operating Ambient Temp | -20 °C to +60 °C ventilated rack mounting |
| Storage Temperature Range | -40 °C to +70 °C |
| Enclosure Rating | IP20 rear PCB, Pollution Degree 2 |
| Physical Dimensions | 250 mm L × 160 mm W × 25 mm D |
| Net Unit Weight | 0.5 kg |
| Compliance Standards | CE, UL508, RoHS, IEC 61131-3 |
| Mount Format | Standard 19-inch DIN subrack slide-in module |
Product Introduction
This board acts as the primary processing core for legacy Symphony Harmony power control racks, preloaded with APPLIC drive and generator regulation algorithms to handle synchronous machine excitation, speed control and grid interlock logic without external auxiliary controllers. It continuously archives sequence-of-event fault timestamps to onboard flash through full power outages.
Dual isolated communication channels separate plant supervisory Ethernet traffic from field RS485 I/O bus, eliminating cross-talk and reducing intermittent tag read timeouts common in single-port processor variants.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference serial numbers against OEM spare registry to reject counterfeit hardware; inspect edge connector gold pins, power terminal blocks and PCB solder joints for corrosion or transport bending; log batch codes and serial IDs for full traceability records.
- Live Testing: Seat the unit into matching Symphony backplane, supply stabilized 24VDC bench power, load reference generator/drive control logic, run continuous 24-hour cyclic closed-loop simulation and Ethernet/RS485 handshake stress testing.
- Electrical Testing: Use Fluke 115 multimeter and insulation tester to validate chassis ground resistance below 0.5Ω and PCB power-signal insulation resistance above 10MΩ.
- Firmware/Config Backup: Record exact factory firmware revision via ABB Symphony engineering software, photograph onboard DIP switch rack addressing settings, export full plant parameter datasets to encrypted offline storage.
- Final QC & Packaging: Clean exposed PCB surfaces with anti-static solvent, seal the module inside static shielding bag, attach printed QC test tag with technician ID and test timestamp before foam-lined anti-shock carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Firmware builds newer than site Symphony engineering software block backplane I/O scanning and disable closed-loop regulation; cross-check OEM software compatibility matrix before flashing the unit.❗ Backplane Pin Contamination: Oxidized gold edge connectors create intermittent control loop dropouts; wipe rack bus contacts with isopropyl alcohol before installing the replacement unit.❗ DIP Switch Address Conflicts: Duplicate rack node addressing floods the plant Ethernet bus with broadcast errors; capture high-resolution photos of original switch layout prior to removal.❗ Power Supply Underrating: The unit draws peak 8W during cold startup; shared rack 24VDC supplies with multiple processing boards trigger voltage sag and boot failures.❗ ESD Dangers: Unwristed technician contact with exposed PCB traces corrupts flash parameter storage; field service logs show ungrounded handling destroyed this board with over $2,900 in hardware and plant outage labor costs.
4-step replacement guide:
- Pre-install: De-energize full Symphony rack 24VDC supply, fit certified anti-static wrist strap, photograph power wiring, Ethernet/RS485 cabling and DIP switch positions.
- Removal: Release rack slide latches, disconnect 24VDC power terminals and all serial/Ethernet communication wiring, slide the unit fully out of the 19-inch subrack slot.
- Install: Align the new board’s edge connector with the backplane bus, lock mounting latches, replicate original DIP switch node addressing and reterminate all communication and power wiring.
- Power-on Test: Restore 24VDC rack power, upload matching firmware and generator/drive parameter set, execute full backplane I/O scan and run 30-minute steady-state regulation test to confirm no control loop drift.
FAQ (Frequently Asked Questions)
Q: Can this board swap directly with PPC902AE base variants without parameter rework?A: Mechanical rack compatibility exists, but the AE101 revision includes upgraded RS485 transceivers and expanded flash storage; direct drop-in swap requires reloading full plant tuning parameters to resolve communication timeout faults.
Q: Does the board support hot-swapping while turbine/generator loads remain online?A: Hot-swapping is fully unsupported. Removing the board mid-operation cuts all drive and generator control loops, triggering immediate unit trip and grid instability; full rack 24VDC power shutdown is mandatory for replacement.
Q: What warranty coverage applies to stocked hardware?A: Factory-new OEM spares carry a 12-month manufacturer warranty covering all onboard processing and power circuits. Bench-tested surplus inventory ships with a 6-month functional warranty; physical damage from miswiring, ESD or overvoltage voids all coverage terms.
Q: Has ABB issued an official EOL notice for this hardware?A: Formal end-of-production status applies; OEM no longer manufactures new batches, only limited residual surplus stock is available for existing Symphony Harmony power plant sites. Verify with OEM datasheet for compatible modern controller upgrade alternatives.
Q: Will generator and drive tuning parameters persist after swapping the board?A: Loop setpoints, excitation curves and fault thresholds do not store natively on the hardware. Back up the full parameter database from the old board before removal and re-download to the new unit post-install; firmware mismatches corrupt parameter upload sequences.
Q: What I/O and communication accessories pair with this processor?A: Compatible Symphony rack accessories include analog excitation input cards, digital trip output modules and Ethernet to Modbus RTU converters. Cross-reference the Symphony Harmony system hardware manual for maximum rack expansion limits.
Q: Can this unit operate for generic factory automation outside power generation assets?A: Native firmware is optimized exclusively for synchronous generator and large variable speed drive regulation logic; repurposing for general discrete manufacturing control requires custom firmware rework which ABB does not authorize or support.
