Description
Key Technical Specifications
- Model Number: PP846A
- Manufacturer: ABB
- Communication Protocol: Profibus DP V1/V2 (compliant with IEC 61158)
- Port Configuration: 2 x independent Profibus DP ports (isolated from each other)
- Data Rate: 9.6 kbps to 12 Mbps (auto-negotiation supported)
- Operating Temperature: -25°C to +60°C (-13°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Isolation: 500V AC (port-to-port, port-to-backplane)
- Power Supply: Derived from AC 800M controller backplane (no external power required)
- Connection Type: 9-pin D-Sub (male) per Profibus port
- Dimensions (W x H x D): 40mm x 140mm x 110mm (fits AC 800M rack)
- Weight: Approx. 220g
- Protection Features: ESD protection (±15kV contact), surge protection on Profibus lines
- Compliance: IEC 61000-4 (EMC), UL 508, CE
- Mounting: AC 800M standard rack mount (hot-swappable)
- Status Indicators: Power (PWR), Port 1/2 activity (ACT), Port 1/2 fault (FLT)
- Maximum Nodes: 126 slaves per Profibus port
- Diagnostic Capabilities: Port-level fault detection, bus error logging, slave status monitoring

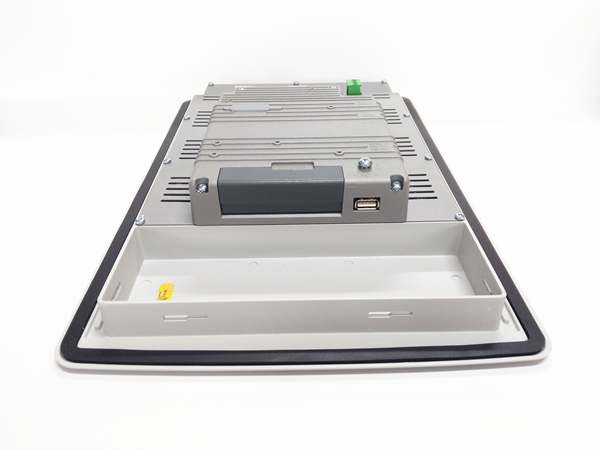

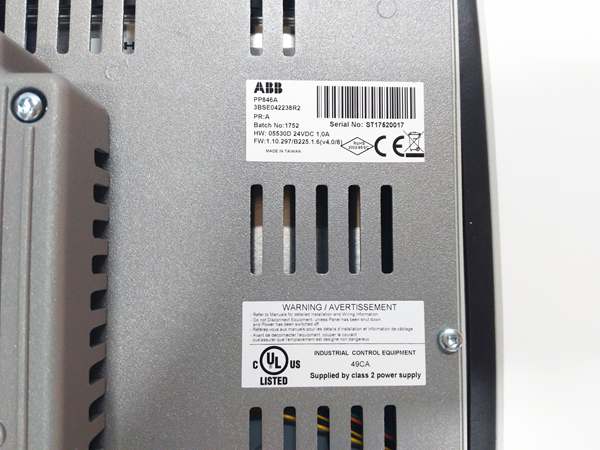

ABB PP846A
Field Application & Problem Solved
In process control environments—refineries, chemical plants, and pulp mills—the biggest networking challenge is connecting distributed I/O modules, smart sensors, and actuators to a central DCS without sacrificing speed or reliability. Legacy communication modules often have single ports (creating bottlenecks) or lack hot-swappability (forcing full system shutdowns for maintenance). This Profibus DP module solves that by offering dual independent ports and hot-swap functionality, bridging the gap between centralized control and distributed field devices.
You’ll typically find this module installed in AC 800M DCS racks, serving as the communication backbone for critical process loops. In refineries, it links pressure transmitters, flow meters, and valve positioners in distillation columns to the central controller. In chemical plants, it connects batch reactor I/O modules and temperature sensors, enabling precise recipe control. It’s also a staple in pulp mills, where it networks dryer section actuators and moisture sensors—environments where vibration and temperature fluctuations demand rugged, reliable communication.
Its core value is flexibility and uptime. The dual Profibus ports allow for redundant networks or split-load configurations (e.g., one port for process I/O, one for auxiliary devices), eliminating single points of failure. The hot-swappable design lets technicians replace the module without shutting down the controller, critical in continuous-process industries where downtime costs $10k+ per hour. For plant operators, this translates to more resilient networks, faster maintenance, and consistent process data flow—essential for optimizing production and complying with safety regulations.
Installation & Maintenance Pitfalls (Expert Tips)
Profibus Termination: Don’t Skip the Resistors
A common rookie mistake is forgetting 120-ohm termination resistors at the first and last nodes of each Profibus line. Without them, signal reflections cause data corruption, leading to intermittent communication drops or slave disconnects. This module doesn’t have built-in termination—install external resistors (or use slave modules with switchable termination) at the ends of each bus. Verify termination with a Profibus tester during commissioning; missing resistors are the #1 cause of DP network faults with this module.
Hot-Swap Procedure: Follow the Sequence
The module is hot-swappable, but rushing the process damages the backplane or module. Always press the release latch and wait 5 seconds after the status LEDs go dark before pulling the module. Insert the new module firmly until the latch clicks, then wait 10 seconds for the controller to recognize it. Skipping the wait time causes backplane communication errors, requiring a controller reboot—undoing the benefit of hot-swapping.
Bus Cable Shield Grounding: Single-Ended Only
Grounding the Profibus cable shield at both ends creates ground loops, which introduce noise and trigger false fault alerts. The module’s 500V isolation helps, but poor shielding practices still degrade performance. Ground the shield only at the controller end (near the PP846A) and keep the shield intact as close to the module as possible. Avoid running Profibus cables parallel to power cables—maintain at least 15cm (6 inches) of separation to minimize EMI.
Forgetting to Configure Port Modes
By default, the module’s ports are set to “slave” mode—rookies often install it without reconfiguring to “master” (the most common use case for DCS integration). This results in the controller failing to communicate with field devices. Use ABB’s Control Builder M software to set each port to master or slave, match the baud rate to the network, and enable Profibus V1 (for acyclic data like diagnostics). Save the configuration to the controller before commissioning—unconfigured ports won’t pass traffic.

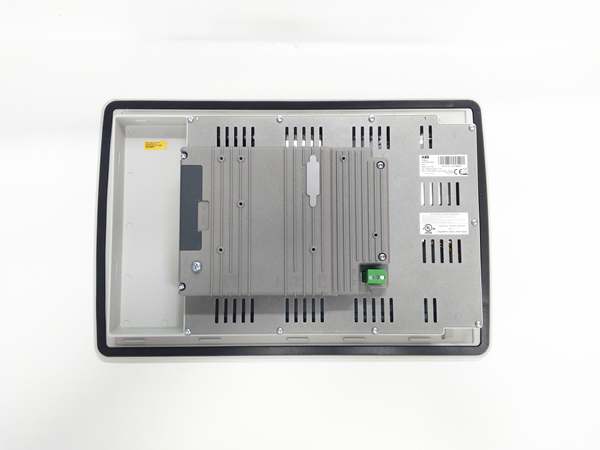

ABB PP846A
Technical Deep Dive & Overview
The ABB PP846A is a dual-port Profibus DP interface module designed exclusively for ABB’s AC 800M distributed control system. It acts as the bridge between the AC 800M controller and Profibus DP field devices, translating DCS commands into Profibus signals and vice versa. Its dual-port design is a key differentiator, allowing two independent DP networks to connect to a single controller—eliminating the need for additional communication modules.
At its core, the module uses a dedicated communication processor that handles Profibus DP protocol processing, offloading work from the controller’s main CPU. This ensures fast data transfer (up to 12Mbps) and consistent scan times, even with 126 slaves per port. The ports are electrically isolated from each other and the backplane, preventing cross-talk and protecting the controller from electrical transients in the field.
The module integrates seamlessly with the AC 800M backplane, drawing power directly from the rack—no external wiring required. It supports both Profibus DP V1 (for cyclic process data and acyclic diagnostics) and V2 (for advanced features like slave-to-slave communication), making it compatible with legacy and modern Profibus devices. The status LEDs (PWR, ACT, FLT) provide at-a-glance visibility: flashing ACT LEDs confirm data flow, while solid FLT LEDs indicate port-level faults (e.g., bus short, no termination).
Ruggedness is built for industrial use: the -25°C to +60°C operating range withstands harsh plant environments, and ESD/surge protection guards against electrical hazards. The hot-swappable design is engineered for continuous-process industries, allowing maintenance without disrupting operations. Overall, the PP846A is a reliable, high-performance communication module—optimized for AC 800M DCS, it delivers flexible, fault-tolerant Profibus networking that meets the demands of process control.
