Description
Product Introduction
The ABB 3BSE042238R1 is a 10.4-inch operator panel from the Panel 800 series, built to handle visualization and control in process industries. It runs on a dedicated RTOS (often Windows Embedded) and interfaces directly with AC 800M or Freelance systems via Ethernet.
This specific ABB 3BSE042238R1 unit typically houses an Intel Atom or ARM-based processor (verify with OEM datasheet for specific hardware revision) and 256 MB RAM. The resistive touchscreen works with gloves, crucial for field techs. Boot time usually hits under 30 seconds from a cold 24 Vdc power-up.

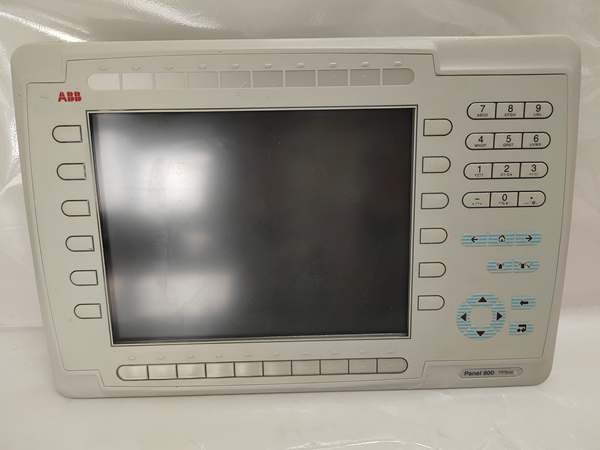

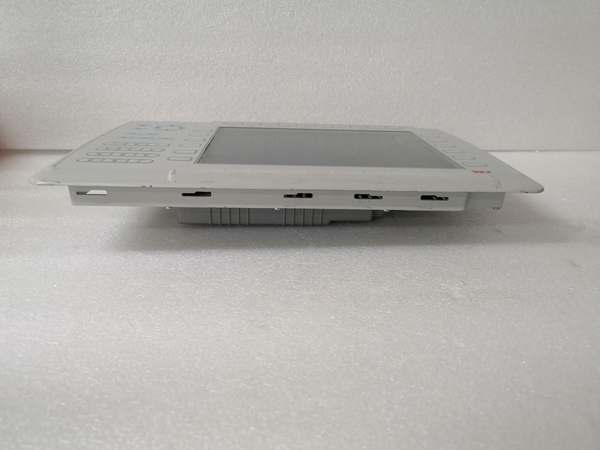

ABB PP846 3BSE042238R1
Key Technical Specifications
- Display Size: 10.4 in (264 mm diagonal)
- Resolution: 800 x 600 pixels (SVGA)
- Touch Type: Resistive (Analog, glove-compatible)
- Supply Voltage: 24 Vdc (Range 18–32 Vdc)
- Processor: Intel Atom / ARM (Revision dependent)
- Memory: 256 MB RAM / 256 MB Flash (Typical)
- Ethernet Ports: 2 x 10/100 Base-T (RJ45)
- Serial Ports: 1-2 x RS-232/422/485 (Isolated)
- USB Ports: 2 x USB 2.0 (Type A)
- Front Protection: IP65 / NEMA 4X
- Rear Protection: IP20
- Operating Temp: -20 to 60 °C
- Software: ABB Panel Builder 800
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify the 3BSE042238R1 sticker matches the ABB serial number on the rear housing. Check the gasket seal for compression set or nicks that break the IP65 front rating.
- Live Functional Test: Power up at 24 Vdc. Let it POST. Navigate the demo project screens; check for stuck pixels on the TFT and ensure the resistive touch registers clicks within 10 ms accuracy.
- Electrical Parameter Test: Measure input inrush current with a Fluke 435. Check 24 Vdc rail stability under load—voltage dip below 18 Vdc causes random reboots during screen redraws.
- Firmware Verification: Connect via Panel Builder 800. Read the OS version and bootloader date. Photograph DIP settings if present; most config is software-locked now.
- Final QC & Packaging: Wipe the screen with isopropyl alcohol (no ammonia). Bag the unit in ESD-safe foam with desiccant. Label “QC Passed – 4hr Runtime” with the date.

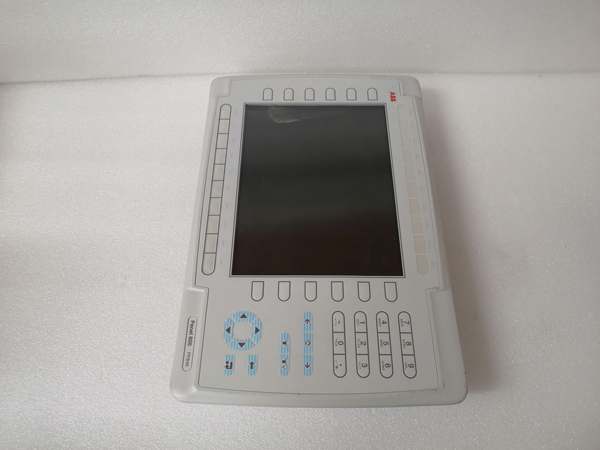

ABB PP846 3BSE042238R1
Replacement Pitfall Guide
❗ Project Version Mismatch: Loading a Panel Builder project compiled for v5.1 onto a v6.0 OS (or vice versa) results in a boot loop. Check the firmware major version beforetransferring the .dplfile.
❗ IP Address Conflict: The ABB 3BSE042238R1 defaults to DHCP or a static 192.168.x.x. Plugging it into a live plant network with an overlapping subnet kills comms to the AC 800M controller immediately.
❗ Serial Wiring (Null Modem): The DB9 serial ports often require a null-modem (crossover) cable for Modbus RTU. Using a straight-through cable yields RX/TX errors—check the pinout in the manual first.
❗ Power Budget: Inrush can spike to 1.5 A for 50 ms. Size the 24 Vdc PSU with 30% headroom; weak supplies cause the unit to reset during high-backlight brightness transitions.
❗ ESD to USB: The rear USB ports are exposed. In low-humidity environments (common in northern China winters), discharge to the cabinet frame before plugging in a flash drive to download logs.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- ABB 3BSE042238R1 → ABB PP845 : Direct — Upgrade path, verify screen cutout dimensions
- ABB 3BSE042238R1 → ABB CP800 : Needs Adaptation — CP series uses different firmware/Panel Builder profiles
- ABB 3BSE042238R1 → Siemens TP1200 : Incompatible — Project conversion required, different scripting engines
- Boot Time: ~25 s (Cold start to HMI ready, typical project)
- Touch Response: < 15 ms latency (Stylus input)
- Backlight Life: 50,000 hours (Verify with OEM datasheet, typ. @ 25 °C)
