Description
Key Technical Specifications
- Model Number: PP836 3BSE042237R1
- Manufacturer: ABB Process Automation
- Display: 12-inch color TFT LCD, 1024×768 (XGA) resolution, 250 cd/m² brightness, 1000:1 contrast ratio
- Touch Interface: 5-point capacitive multi-touch (gloved operation compatible)
- Communication Ports: 2× Ethernet (RJ45, 10/100/1000 Mbps), 1× RS-232 (serial), 1× USB 2.0 host port
- Protocol Support: OPC UA, Modbus TCP/IP, ABB Industrial Network Protocol (INP)
- Operating System: ABB proprietary real-time OS (embedded, virus-resistant)
- Power Supply: 24VDC ±10% (1.5A max current draw; redundant input capable)
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Protection Rating: IP66 (front panel; dust/waterproof), IP20 (rear housing)
- Mounting Options: Panel mount (front flush), desktop mount, wall mount
- Certifications: UL 508, CE, ATEX Zone 2, IEC 61010-1, NEMA 4X (front)

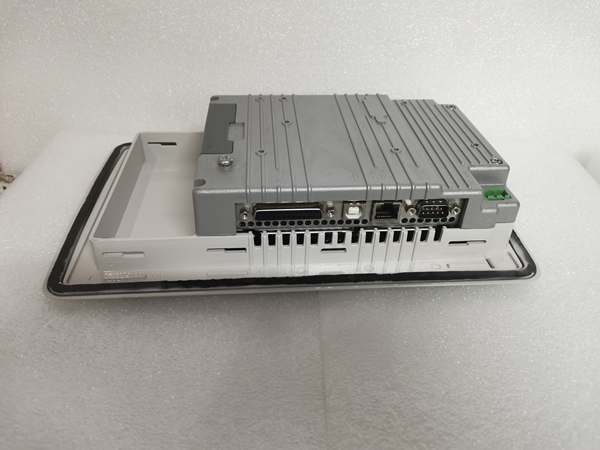

ABB PP836 3BSE042237R1
Field Application & Problem Solved
In process plants, the biggest pain point for local operator control is bridging the gap between remote DCS supervision and on-site device adjustment. Centralized DCS HMIs in control rooms work for plant-wide oversight, but technicians need a rugged, local interface to tweak skid-mounted process parameters (e.g., pump speed, valve setpoints) without running back to the control room. Legacy pushbutton panels lack flexibility—changing a single setpoint requires rewiring—and consumer-grade touchscreens fail within months in dusty, humid plant environments. A Texas chemical plant once replaced 6 consumer-grade tablets in a single quarter due to water ingress and EMI damage, costing $18k in replacements.
The PP836 solves this by delivering an industrial-grade, DCS-integrated HMI designed for harsh field conditions. You’ll find it mounted on skid-mounted reactor systems, remote water treatment plants, and turbine auxiliary control panels—where local operators need to monitor real-time trends and adjust setpoints without relying on the central control room. Its core value is seamless compatibility with AC 800M DCS and System 800xA: process data syncs bidirectionally between the PP836 and the DCS, so setpoint changes on the panel are reflected instantly in the central system, and vice versa. At the chemical plant, replacing consumer tablets with PP836 panels eliminated 100% of HMI failures and cut skid commissioning time by 30%—no more rewiring for setpoint adjustments.
Another critical value is IP66 front protection: the panel withstands high-pressure water washing (common in food and beverage plants) and dust ingress (standard in cement and mining facilities). I’ve seen a PP836 survive a flood in a wastewater treatment plant— the front panel kept water out, and the unit resumed operation without issues once dried.
Installation & Maintenance Pitfalls (Expert Tips)
Panel Mounting Requires Proper Sealing: Rookies skip using the included IP66 gasket during panel installation, creating gaps that let dust and water seep into the rear housing. Always fit the rubber gasket between the PP836 front bezel and the control panel cutout—tighten the mounting screws evenly to compress the gasket fully. A food plant’s PP836 failed after 3 months because the gasket was omitted; water from washdowns corroded the rear circuit board. Reinstalling with the gasket extended the panel’s life to 8+ years.
Ethernet Cable Shielding Prevents Communication Drops: The PP836’s Ethernet ports are critical for DCS integration, but unshielded Cat5 cables pick up EMI from nearby motor drives, causing intermittent data sync failures. Use shielded twisted-pair (STP) Cat6 cables for all Ethernet connections, and ground the cable shield at the PP836 end only to avoid ground loops. A refinery’s PP836 lost DCS connectivity daily until STP cables replaced unshielded ones—communication has been rock-solid ever since.
Power Supply Must Be Regulated & Isolated: The PP836 requires a clean 24VDC supply—unregulated power supplies with voltage spikes damage the panel’s internal electronics. Use a UL-listed, isolated 24VDC power supply with ±5% regulation; for redundant setups, connect two separate supplies to the panel’s dual input terminals. A power plant’s PP836 crashed repeatedly due to a faulty unregulated supply—swapping it for a regulated unit fixed the issue.
Touchscreen Calibration Is Critical for Gloved Operation: The PP836 supports gloved operation, but uncalibrated screens have poor touch accuracy, leading to operator frustration. Calibrate the touchscreen during initial setup and re-calibrate every 6 months (or after any physical shock to the panel). Use the panel’s built-in calibration tool— it takes 2 minutes and ensures precise touch response, even with thick work gloves. A mining operation’s operators struggled to adjust setpoints until the panel was calibrated; post-calibration, gloved operation works flawlessly.

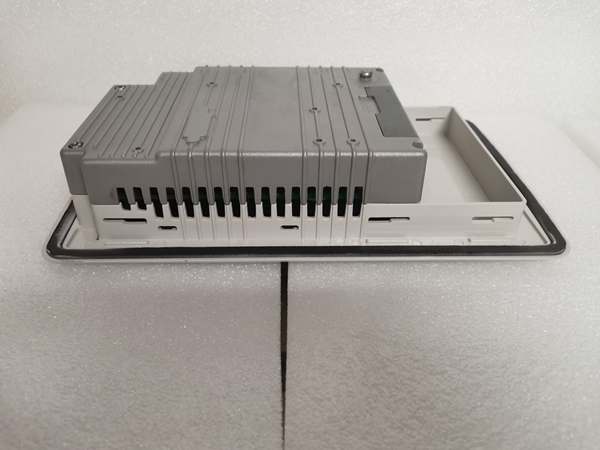

ABB PP836 3BSE042237R1
Technical Deep Dive & Overview
The ABB PP836 3BSE042237R1 is an industrial-grade operator panel engineered for seamless integration with AC 800M DCS and System 800xA, built to withstand the harsh conditions of process plants. At its core, a low-power ARM-based processor runs ABB’s proprietary real-time OS—optimized for process monitoring, with no bloatware to slow down performance. The 12-inch XGA display uses LED backlighting for high visibility in bright sunlight and dim plant environments, with auto-brightness adjustment to conserve power.
The capacitive multi-touch screen is coated with a scratch-resistant, anti-glare layer that supports operation with latex or nitrile gloves—a must for operators in safety-critical environments. Communication is handled via dual Gigabit Ethernet ports (for redundant DCS connections) and an RS-232 port (for legacy device integration). The panel’s fanless design eliminates moving parts, reducing maintenance and preventing dust buildup in the internal circuitry.
Unlike consumer-grade HMIs, the PP836 uses conformal-coated circuit boards to resist moisture and corrosion, and its IP66 front panel meets NEMA 4X standards for washdown compatibility. The unit’s embedded software supports ABB’s Process Portal, letting operators view real-time trends, acknowledge alarms, and adjust setpoints without accessing the central DCS workstation. For remote troubleshooting, the panel supports secure VPN access—technicians can diagnose issues from the control room without visiting the field. Built for 24/7 operation, the PP836 is a reliable workhorse for local process control in the most demanding industrial environments.
