Description
Product Core Brief

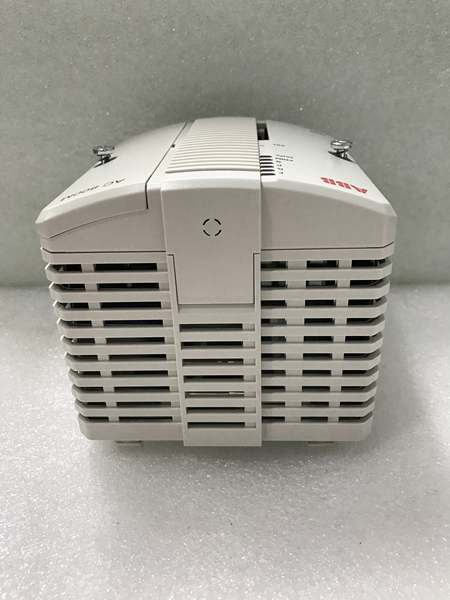

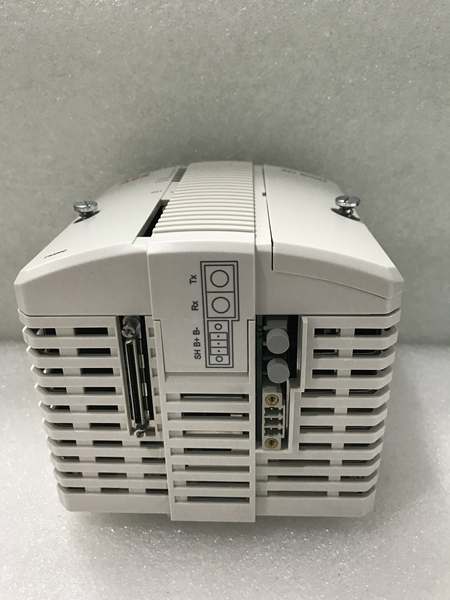

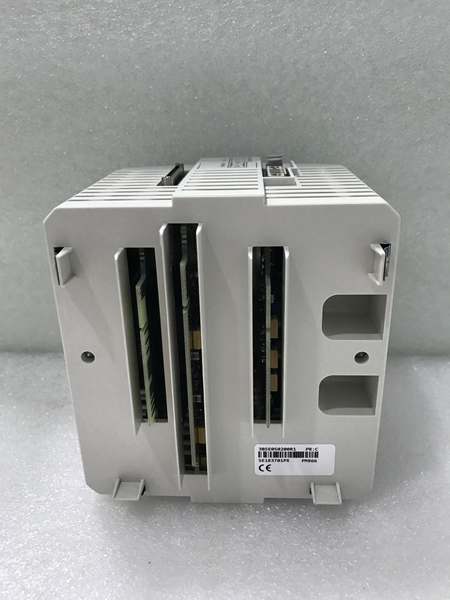

- Model: PM866 3BSE050200R1
- Brand: ABB
- Series: AC800M / System 800xA
- Core Function: Executes heavy-duty IEC 61131-3 control logic, coordinates ModuleBus I/O and dual redundant control network communication for large-scale process plants.
- Product Type: High-performance DCS CPU Controller Module
- Key Specs: 450MHz processor | 64MB RAM | Max 96 S800 I/O modules single rack
- Note: Active OEM production, factory new single CPU units regularly stocked as maintenance spares.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BSE050200R1 |
| Core Processor | 450 MHz MPC862P |
| Application RAM | 64 MB |
| Firmware Flash Storage | 4 MB on-board flash + CompactFlash slot |
| Operating Supply | 24 VDC, 19.2–30 VDC tolerance |
| Typical Power Dissipation | 10 W |
| Max Supported I/O Modules | 96 (single mode); 84 (redundant paired mode) |
| Onboard Interfaces | 2× RJ45 Ethernet Control Network; 2× RS232C serial (COM3/COM4) |
| Supported Protocols | MMS, IAC, Modbus TCP, Profibus DP via CI-series adapters |
| Redundancy Switchover Latency | ≤10 ms bumpless primary/backup transfer |
| Operating Ambient Temp | 0 °C to +55 °C rack-mounted |
| Storage Temperature | -40 °C to +70 °C |
| Environmental Rating | ISA 71.04 G3 corrosion resistant, Pollution Degree 2 |
| Physical Dimensions | 186 mm H × 119 mm W × 47 mm D |
| Unit Weight | 1.2 kg |
| Compliance Standards | IEC 61131-3, UL508, IP20 enclosure rating |
Product Introduction
This processing unit delivers expanded memory and higher clock speed compared to earlier PM865 variants, built to host large complex control logic for petrochemical, power generation and metallurgy AC800M racks. It manages time-critical analog regulation, sequential batch control and SOE event logging with sub-1ms timestamp resolution.
Dual isolated Ethernet ports enable redundant control network topologies without separate external switches, cutting auxiliary hardware count for high-availability rack layouts. The integrated CompactFlash slot supports offline program backups for rapid site restoration after hardware faults.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference serial and part labels against OEM registry to reject counterfeit hardware; inspect Ethernet/serial port pins, PCB traces and casing for transport scuffs or moisture exposure; log full batch codes for full traceability.
- Live Testing: Mount the unit to a TP830 baseplate and AC800M backplane, supply stabilized 24VDC bench power, load full-scale reference project logic, run continuous 24-hour ModuleBus I/O handshake and network communication cycling.
- Electrical Testing: Use Fluke 115 multimeter and insulation tester to validate chassis ground resistance below 0.5Ω and PCB insulation resistance above 10MΩ between power and signal circuits.
- Firmware/Config Backup: Record exact installed firmware revision via Compact Control Builder, photograph DIP switch and baseplate MAC address labels, export project backup files to encrypted offline storage.
- Final QC & Packaging: Clean PCB surfaces with anti-static solvent, seal inside static shielding bag, attach printed QC test tag with technician ID and test timestamp before carton packaging with foam shock padding.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Deploying firmware newer than site Compact Control Builder version blocks ModuleBus scans and triggers permanent rack fault alarms; cross-check software compatibility matrix before flashing the unit.❗ Redundancy Cable Misplacement: TK850 CEX-Bus sync cable must link matching slots on paired units; reversed or loose cabling eliminates bumpless failover and forces full process trip.❗ DIP Switch/Jumper Errors: Mismatched rack node addressing breaks control network traffic; capture high-resolution photos of original board switch positions before dismounting the old unit.❗ Power Draw Miscalculations: The unit draws 10W continuous load; undersized rack power supplies produce undervoltage spikes during simultaneous cold startup of all rack modules.❗ ESD Dangers: Unwristed technician contact with exposed PCB traces causes silent CPU gate damage; multiple field incidents show ungrounded handling destroyed this controller variant with over $2,000 in hardware and labor replacement costs.
4-step replacement guide:
- Pre-install: De-energize full rack, fit anti-static wrist strap, photograph wiring, Ethernet cabling and DIP switch layout.
- Removal: Rotate slide-lock latches to release the unit, disconnect all serial, Ethernet and ModuleBus wiring, slide the unit out of the baseplate slot.
- Install: Align the new unit’s backplane connector, lock mounting latches, replicate original DIP switch settings and reterminate all field communication cabling.
- Power-on Test: Restore rack power, upload matching firmware, execute full ModuleBus I/O scan and force manual failover test if running redundant rack configuration.
FAQ (Frequently Asked Questions)
Q: How does this unit compare to PM865K01 for site upgrades?A: It features double the RAM and higher processor speed, supporting larger program databases and more connected I/O modules. Existing PM865 control logic can be re-used with minor firmware alignment, no full program rewrite required.
Q: Can the device be hot-swapped in a single non-redundant rack?A: Hot-swapping is unsupported for standalone racks. Removing the unit mid-operation drops all ModuleBus I/O and triggers full plant interlock trips; full rack power-down is mandatory for replacement. Single unit hot-swap is only permitted in fully paired redundant rack layouts.
Q: What warranty coverage applies to stocked units?A: Factory-new OEM hardware carries a 12-month manufacturer warranty. Bench-tested surplus inventory ships with a 6-month functional warranty; physical damage from miswiring, ESD or overvoltage voids all coverage terms.
Q: Has ABB issued an official EOL notice for this unit?A: No formal end-of-life documentation exists; OEM maintains full production runs for existing System 800xA plant expansions and emergency breakdown maintenance spares.
Q: Will stored control logic transfer automatically after swapping the controller?A: Logic is not stored locally on the hardware. Back up the full project from the old unit before removal, then re-download the complete program set to the new unit post-install; firmware mismatches corrupt upload sequences.
Q: What communication interface cards are fully validated for pairing?A: Compatible accessories include CI854 Profibus DP, CI867 Modbus TCP, CI871 Ethernet/IP and CI801 RS485 serial adapters. Cross-reference the OEM hardware compatibility datasheet for full firmware pairing rules.
Q: Is SIL3 safety functionality available out of the box?A: Base operation only delivers standard process control. SIL2/SIL3 compliance requires pairing each unit with an SM810/SM811 high integrity safety module; verify safety hardware sizing against plant hazard assessment documents.
