Description
System Architecture & Operational Principle
The is the workhorse for safety-critical applications within the AC 800M ecosystem. Physically, it’s a 6U VME-style module that slides into a TP830 (single) or TU842 (redundant) baseplate. It sits at the heart of the controller rack, communicating upstream with the System 800xA client stations over Ethernet (CN1/CN2) and downstream with field I/O via the ModuleBus.
Unlike a standard PLC, the is engineered for High Integrity (HI) applications. It doesn’t just run ladder logic; it executes certified safety functions (IEC 61508 SIL-2/3) for things like Emergency Shutdown (ESD) or Fire & Gas (F&G). It achieves this through rigorous self-diagnostics and internal consistency checks. The architecture supports 1:1 redundancy with a hardware switchover time of less than 10 ms, ensuring that if the primary CPU fails, the backup takes over before the process ever sees a glitch. It handles mixed-mode control, meaning you can run your standard regulatory loops and your safety interlocks on the same chassis, simplifying the overall system topology.

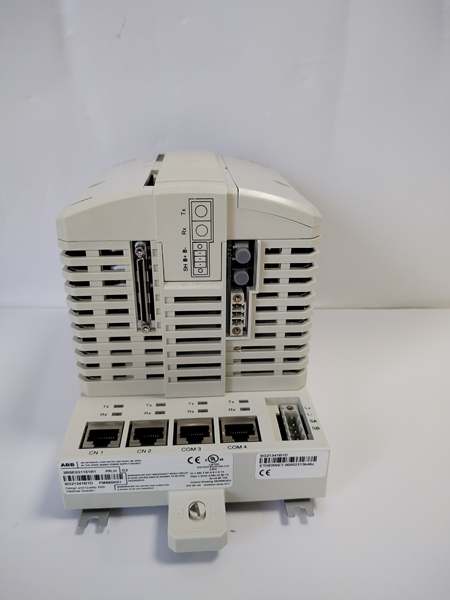

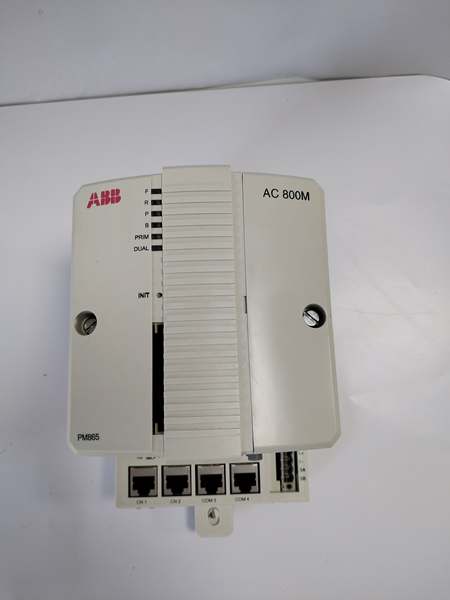

ABB PM865K01
Core Technical Specifications
- Processor: MPC862 (32-bit RISC), 96 MHz
- Memory: 32 MB RAM (User App), 2 MB Flash (Firmware)
- Storage: CompactFlash slot (Application/Backup)
- Network: 2x 10/100 Mbps Ethernet (RJ45)
- Serial Ports: 2x RS-232 (COM3 General, COM4 Isolated)
- Power Supply: 24 V DC (19.2–30 V DC), ~7–12 W consumption
- Redundancy: 1:1 Hot Standby (via CEX-Bus sync)
- Safety Certification: IEC 61508 SIL-3 (Requires HI license & I/O)
- Environmental: 0°C to 55°C (Operational)
- Form Factor: 6U VME (TP830/TU842 Base)
Customer Value & Operational Benefits
Unified Control Architecture
The biggest win here is consolidation. Instead of buying a separate SIS (Safety Instrumented System) and a separate BPCS (Basic Process Control System), you can host both on the . This drastically cuts hardware costs, panel space, and engineering overhead because your operators are looking at a single, consistent HMI for both process data and safety alarms.
Predictable Maintenance & Uptime
With a proven track record in refineries and power plants, the offers massive spare-part interchangeability within the AC 800M family. If you’re already on 800xA, adding a safety layer doesn’t require learning a new software stack. The 1:1 redundancy and <10 ms switchover mean you can swap a failed primary CPU while the process keeps running, killing the downtime window for maintenance.
Field Engineer’s Notes (From the Trenches)
Before you even think about ordering a spare, check the High Integrity (HI) license status. The hardware is physically identical to the PM864, but it won’t run SIL-3 logic without the specific firmware keys and licensing. If you’re upgrading an old PM864 setup, don’t assume the code just “works”—you need to validate the safety logic in Control Builder M. Also, always pop the CompactFlash card from the old unit before recycling it. That card holds the retentive data and backups; losing it means rebuilding the project from scratch. Finally, when hot-swapping, ensure the CEX-Bus cables are tight. A loose sync cable will keep the backup in “Init” forever, leaving you with zero redundancy.
Real-World Applications
- Refinery Emergency Shutdown (ESD): Managing the critical shutdown logic for a distillation column, processing pressure and temperature inputs to safely close valves and stop feeds during a high-pressure event.
- Pipeline Compressor Station: Running the Fire & Gas (F&G) logic to detect leaks or fires and initiate deluge systems, while simultaneously monitoring pipeline flow rates.

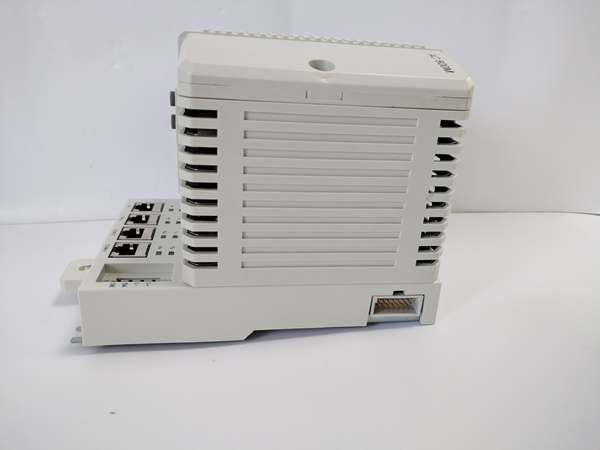

ABB PM865K01
High-Frequency Troubleshooting FAQ
A: Physically, yes. Functionally, no. The PM864 lacks the specific hardware certification and firmware hooks for High Integrity logic. You can use it to get the plant back up in a “safe” degraded mode (running only non-SIL logic), but you must treat the safety system as failed until the is back online.
A: Connect a laptop to the COM4 port and run the system diagnostics in Control Builder or the local service tool. Look for specific error codes related to memory parity or watchdog timers. Often, it’s a sign of a failing internal component or a corrupted application file.
A: Yes, the CN1 and CN2 ports are auto-negotiating 10/100 Mbps. Ensure your network switches are configured to match the duplex settings to avoid packet loss and communication dropouts.
