Description
Product Core Brief
- Model: PM803F
- Order code: 3BDH000530R1
- Brand: ABB
- Series: ABB AC 800F / Freelance control system family
- Core Function: Central processor module for AC 800F controllers, executing continuous and batch control logic, managing Ethernet and fieldbus communication, and coordinating I/O data exchange in distributed process automation systems.
- Product Type: Processor module / CPU controller
- Key Specs: 16 MB main memory with battery-backed retention | 6 module slots plus power slot | 2× Ethernet slots with DMA | 4× fieldbus slots with interrupt-based communication | supports PROFIBUS DP, FOUNDATION Fieldbus, Modbus, CAN bus | supports controller redundancy | suitable for continuous process and batch applications
- Condition: New Original / New Surplus
Key Technical Specifications
- Order code: 3BDH000530R1
- Product designation: PM803F field controller main unit
- System family: ABB AC 800F / Freelance
- Processor: High-performance superscalar RISC CPU
- Main memory: 16 MB SDRAM with battery-backed retention and automatic error checking/correction
- Slot configuration: 6 module slots plus 1 power slot
- Ethernet slots: 2 slots with fast DMA technology for high-speed CPU communication
- Fieldbus slots: 4 slots using interrupt-based communication with priority control
- Data bus bandwidth: 100 MB/s
- Supported fieldbus protocols: PROFIBUS DP-V1, FOUNDATION Fieldbus HSE, Modbus RTU/TCP, IEC 60870-5-101/104, CAN bus
- Redundancy: Supports controller redundancy configurations
- Operating temperature: 0 to 60 °C
- Dimensions: 239 × 202 × 164 mm (W × H × D)
- Weight: Approximately 1.6 kg
- Mounting: DIN-rail mounting
- Typical applications: Process control, power generation, oil and gas, water treatment, chemical processing, cement, metallurgy, and distributed industrial automation systems
- Note: Exact firmware version, communication module configuration, and system compatibility should be confirmed from the ABB product documentation or the unit nameplate
Product Introduction

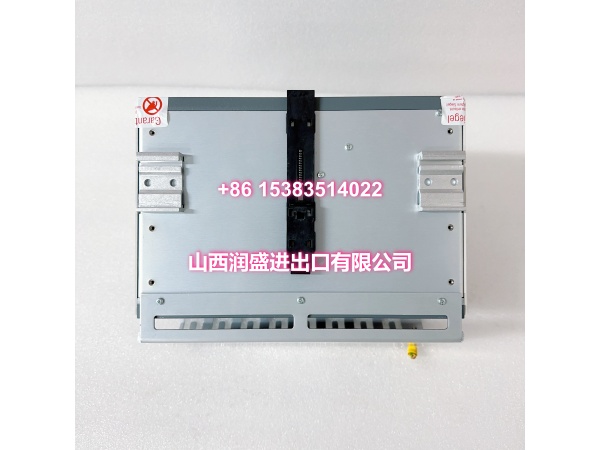

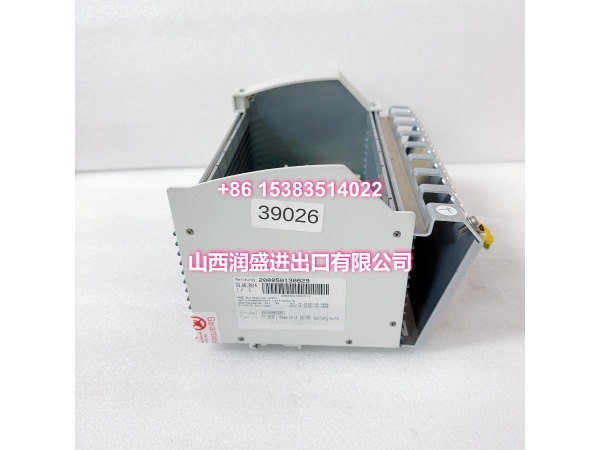

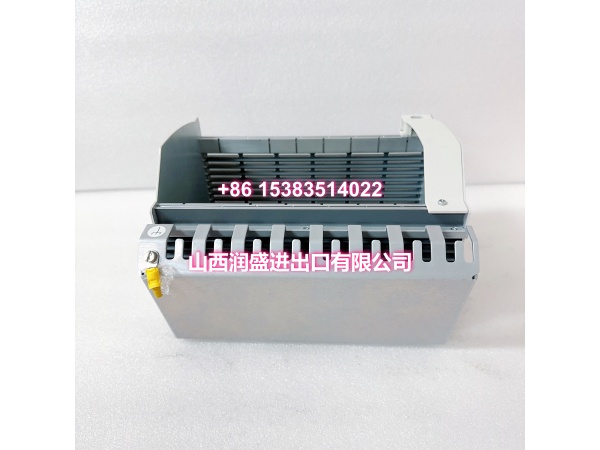

The ABB PM803F 3BDH000530R1 is a high-performance central processing unit designed for the ABB AC 800F / Freelance control system. It serves as the core controller in distributed automation applications, executing continuous and batch control programs, managing fieldbus I/O communication, and coordinating data exchange with operator stations and engineering workstations.
The PM803F features a high-performance superscalar RISC processor with 16 MB of SDRAM main memory, providing ample capacity for large control programs. The memory includes automatic error checking and correction (EDC) capability, which can detect 2-bit errors and correct 1-bit errors in 32-bit data words. Battery-backed retention ensures program and data preservation during power interruptions.
The controller architecture includes 6 module slots plus a dedicated power slot. Two Ethernet slots use fast DMA technology for direct high-speed communication with the CPU, enabling control-layer information transmission over standard TCP/IP Ethernet. The remaining four fieldbus slots use interrupt-based communication with priority control, allowing rapid response to fieldbus events and real-time error reporting.
The PM803F supports a wide range of fieldbus protocols including PROFIBUS DP-V1, FOUNDATION Fieldbus HSE, Modbus RTU/TCP, IEC 60870-5-101/104, and CAN bus through corresponding communication modules. It supports controller redundancy configurations for higher availability in critical process applications. The entire system is engineered using Control Builder F (CBF), ABB’s integrated engineering environment for the Freelance platform.
This module is not a standalone PLC and must be installed as part of a compatible AC 800F / Freelance system. Before replacement, always confirm the existing system configuration, firmware version, communication module arrangement, and connected I/O structure.
QA & Testing SOP
- Order code verification: Confirm PM803F and 3BDH000530R1 on the nameplate.
- Visual inspection: Check the module housing, slot connectors, and mounting hardware for damage or corrosion.
- Power-up test: Install the module into the correct position with a compatible power module, apply power, and verify normal start-up without fault indicators.
- Communication check: Verify Ethernet connectivity and fieldbus communication through installed interface modules.
- System test: Confirm program download/upload capability, I/O communication, redundancy status if applicable, and stable controller operation within the AC 800F / Freelance environment.
Installation Pitfalls & Guide
❗ Confirm system compatibility. PM803F is designed for the ABB AC 800F / Freelance architecture. It cannot be directly substituted into AC 800M, Advant OCS, or other ABB controller families.
❗ Record existing configuration. Before removal, save the controller program, firmware version, communication module configuration, and slot assignment.
❗ Verify slot assignment. The two Ethernet slots use DMA technology and must be populated with compatible Ethernet modules. The four fieldbus slots support various communication modules with flexible placement.
❗ Check battery condition. The 16 MB SDRAM uses battery-backed retention. Verify that the battery module is in good condition to ensure data retention during power loss.
❗ Follow proper grounding practices. Ensure correct grounding and shielding to minimize electromagnetic interference in industrial environments.
Replacement steps:
- Pre-install: Back up the existing controller program, note the firmware version, communication configuration, and slot positions.
- Removal: Follow safe shutdown procedures, disconnect power if required, then remove the processor module.
- Install: Insert the PM803F into the correct position, verify all module connections, and confirm proper seating.
- Commissioning: Power up the system, confirm normal startup, verify Ethernet and fieldbus communication, check I/O status, validate redundancy if applicable, and confirm process control operation before returning to production.
Technical FAQ
Is 3BDH000530R1 the correct order code for PM803F? Yes, 3BDH000530R1 is listed as the order code for the ABB PM803F controller main unit with 16 MB memory.
What system is PM803F used in? It is designed for the ABB AC 800F / Freelance control system and integrates with the Freelance engineering environment (Control Builder F) and DigiVis operator stations.
Is PM803F the same as PM802F? No. Both belong to the AC 800F family, but PM803F has 16 MB SDRAM while PM802F has 8 MB SRAM. PM803F’s performance is approximately 5–10% lower than PM802F due to the larger memory architecture.
Is PM803F the same as PM783F or PM630? No. PM803F belongs to the AC 800F / Freelance family, PM783F is also in the Freelance family but is a different CPU variant, and PM630 belongs to the AC 800M family. They are different controller platforms and are not directly interchangeable.
Does PM803F have onboard I/O? No. PM803F has no onboard discrete or analog I/O by design. Field I/O is handled through S700, S800, or S900 I/O modules connected via communication interface modules.
Can PM803F be configured for redundancy? Yes. PM803F supports controller redundancy configurations for higher availability in critical process applications.
Do you offer price flexibility? Yes. Pricing depends on condition, firmware visibility, quantity, and urgency. New original stock and tested surplus units are quoted separately.
What warranty is included? Typical coverage is 12 months from delivery for functional defects, excluding incorrect installation, firmware mismatch, communication configuration errors, or damage from improper handling. Final terms are confirmed on the quotation.
