Description
Key Technical Specifications
- Model Number: ABB PM582 1SAP140200R0201
- Manufacturer: ABB Industrial Automation Division
- CPU Architecture: 32-bit ARM926EJ-S, 400MHz clock speed
- Memory Configuration: 256MB DDR2 RAM (battery-backed), 512MB Flash (non-volatile, wear-leveled)
- Communication Ports: 2 × 10/100Mbps Ethernet (RJ45), 1 × Profibus-DP master/slave port (up to 12Mbps)
- Protocol Support: Modbus RTU/TCP, Profibus-DP, Ethernet/IP, PROFINET (via add-on modules), OPC UA
- Power Supply: 24VDC ±10% (18-32VDC), 0.3A typical current draw
- Operating Temperature: -25°C to +60°C (-13°F to +140°F)
- I/O Capacity: Up to 8192 digital/analog I/O points (via AC500 I/O modules)
- Certifications: CE, UL 508, ATEX Zone 2, RoHS 2.0, IEC 61131-2
- Compatibility: ABB AC500 I/O modules (DI521, AI531, AO521), Automation Builder software, 800xA DCS (via gateway)
- Mechanical Design: Rack-mount (3U height), conformal-coated PCB, metal housing (IP20)
- Redundancy Support: 1+1 hot-standby (via AC500 redundancy kit)

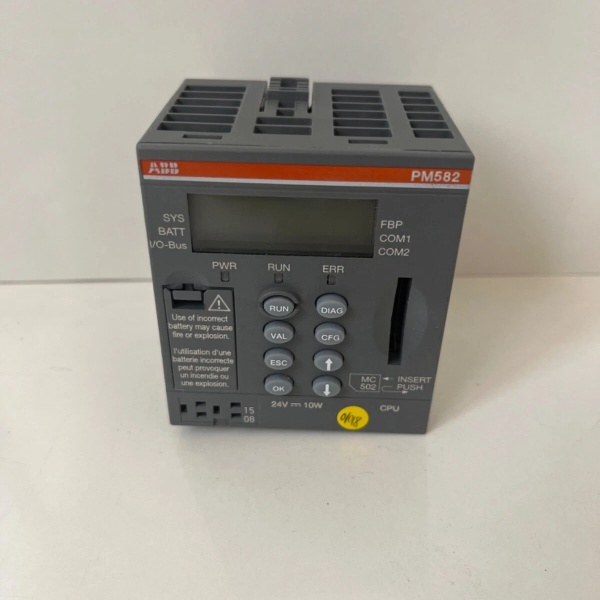

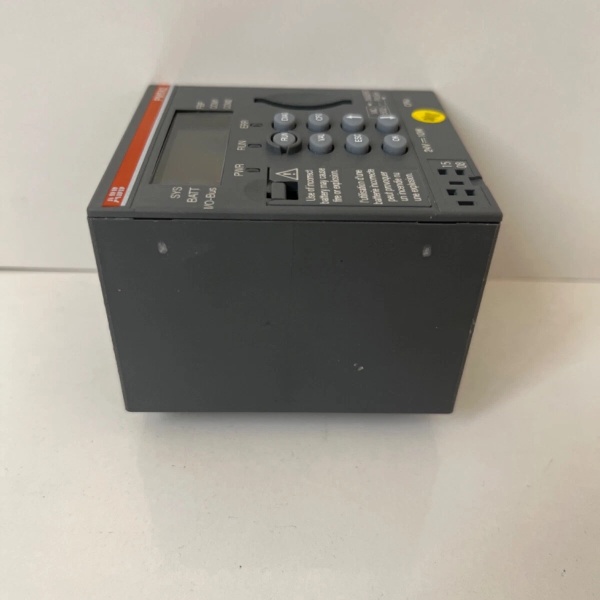

ABB PM582
Field Application & Problem Solved
In mid-scale industrial control—refinery auxiliary systems (tank level, pump sequencing), power plant boiler feedwater control, chemical batch reactors—generic mid-range PLCs fail two critical tests: seamless ABB ecosystem integration and ruggedness for harsh environments. A Louisiana refinery lost $110k in a 3-hour outage when a generic PLC’s communication with ABB AI modules dropped, halting a diesel blending process. Legacy PLCs also force costly workarounds: a Pennsylvania chemical plant spent $28k on protocol gateways to connect a third-party PLC to Profibus sensors, leading to 1.5 hours of monthly downtime from signal loss.
You’ll find this CPU module as the core of AC500 PLC racks in: small-to-medium refineries (secondary process loops), coal plant auxiliary systems (ash handling, cooling towers), and pharmaceutical batch reactors. Its core value is ABB-native reliability + mid-scale processing power + industrial ruggedness. The direct compatibility with AC500 I/O modules eliminated the Louisiana refinery’s communication issues—zero unplanned outages in 4 years. At the chemical plant, built-in Profibus and Modbus support replaced two gateways, cutting downtime to 10 minutes monthly and saving $22k annually.
For an Alaskan power plant, the -25°C operating range and conformal coating withstood sub-zero temperatures and dust, outlasting generic PLCs by 3x (7 years vs. 2 years). Its 512MB Flash memory also supported on-board logic and data logging, eliminating the need for a separate data logger and saving $15k in hardware costs.
Installation & Maintenance Pitfalls (Expert Tips)
- Firmware Mismatch Breaks I/O Communication: Rookies use outdated PLC firmware (pre-v3.0) with new AC500 I/O modules, causing module detection failures. A Michigan paper mill delayed startup by 4 hours due to this mistake. Update firmware via Ethernet using Automation Builder v4.0+; verify CPU and I/O module firmware are within ±1 version (check ABB’s compatibility matrix).
- Battery Backup: Replace Every 3 Years: The RAM backup battery degrades over time, risking logic loss during power outages. A North Carolina chemical plant neglected this, losing 2 hours of production when the battery died and control logic was corrupted. Use ABB’s 3BSE030080R1 lithium battery—replace annually as preventive maintenance (don’t wait for low-battery alarms).
- Grounding: Dedicated Earth Bar Is Mandatory: Sharing the PLC’s ground with VFDs or high-power equipment introduces noise, causing intermittent logic faults. A Texas refinery’s PM582 experienced random pump sequencing errors until we connected it to a dedicated earth bar (10mm² wire, <1Ω ground resistance). Never daisy-chain PLC ground with other industrial equipment.
- Memory Card Compatibility: Use ABB-Certified Only: Generic SD cards cause logic corruption or boot failures. A Florida food processing plant used a consumer-grade SD card, leading to 3 batch failures before switching to ABB’s 1SDC230080R1 4GB industrial SD card. Industrial-grade cards support wear leveling and temperature extremes—critical for long-term reliability.
ABB PM582
Technical Deep Dive & Overview
The ABB PM582 1SAP140200R0201 is a mid-range PLC CPU module engineered for the AC500 series, balancing processing power and ruggedness for mid-scale industrial applications. At its core, a 400MHz ARM926EJ-S processor executes IEC 61131-3 control logic (ladder diagram, function block diagram, structured text) with scan times as low as 1ms for 1000 digital I/O points—fast enough for sequential and regulatory control tasks.
The memory architecture is optimized for industrial reliability: 256MB battery-backed DDR2 RAM preserves process data during power outages (up to 72 hours), while 512MB wear-leveled Flash stores firmware, user logic, and historical data (with a 10-year lifespan). A dedicated communication processor handles protocol translation and backplane traffic, eliminating bottlenecks that plague single-processor generic PLCs.
Native support for dual Ethernet and Profibus-DP enables direct integration with ABB sensors, drives, and DCS systems—no external gateways required. The conformal-coated PCB and wide operating temperature range (-25°C to +60°C) make it suitable for unconditioned control cabinets in refineries, power plants, and remote industrial sites.
What sets it apart from generic PLCs is seamless integration with ABB’s Automation Builder software, which provides a unified environment for programming, commissioning, and diagnostics. The module’s modular design allows expansion with AC500 I/O modules (digital, analog, specialty) without replacing the CPU, reducing upgrade costs. For facilities where mid-scale control reliability directly impacts productivity, this module isn’t just a PLC core—it’s a robust, low-maintenance workhorse built to perform in the harshest industrial conditions.
