Description
Key Technical Specifications
- Model Number: ABB PM511V 3BSE011181R1
- Manufacturer: ABB Industrial Automation Division
- CPU Type: 32-bit ARM Cortex-M3 processor
- Memory: 64KB RAM (volatile, battery-backed), 256KB flash memory (non-volatile)
- Programming Compliance: IEC 61131-3 (supports Ladder Logic, Function Block Diagram, Structured Text, etc.)
- Built-In I/O: 8 digital inputs (24VDC sinking), 6 digital outputs (relay, 2A per channel)
- Communication Ports: 1 × RS485 (Modbus RTU master/slave), 1 × service USB (configuration)
- Power Supply: 24VDC ±10%, 0.15A typical current draw (no load), 0.3A max
- Operating Temperature: -25°C to +60°C (-13°F to +140°F)
- Isolation Rating: 500V AC (I/O to power), 250V AC (communication ports)
- Physical Dimensions: 70mm × 125mm × 100mm (W×H×D), DIN rail mount (35mm)
- Certifications: CE, UL 508, RoHS 2.0, IEC 61131-3, IEC 61010-1

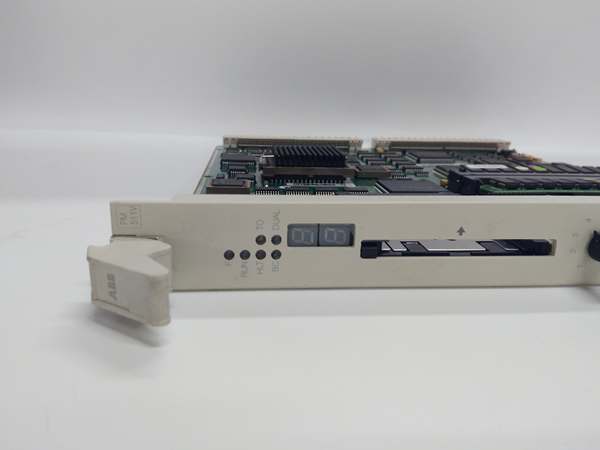

ABB PM511V 3BSE011181R1
Field Application & Problem Solved
Small-scale automation projects—think packaging machines, small water treatment skids, or conveyor lines—often suffer from two critical issues: unreliable budget PLCs and bloated hardware setups. A Wisconsin water treatment plant wasted $8,000/year on downtime due to a cheap, non-branded PLC that crashed weekly, requiring manual resets. Another pain point: entry-level systems often need separate I/O modules for even basic tasks, cluttering cabinets and increasing wiring complexity. A Michigan bakery’s packaging line had 12 jumper wires between a PLC and discrete I/O modules, leading to frequent short circuits and 2-hour troubleshooting sessions.
You’ll find the PM511V in small manufacturing cells, food processing machines, and remote monitoring stations—anywhere space and cost are constraints but reliability can’t be compromised. It acts as the “brain” for small automation loops, executing logic and directly interfacing with sensors (e.g., photoeyes, limit switches) and actuators (e.g., solenoid valves, small motors) via its built-in I/O. Its core value is simplicity plus ruggedness. The integrated I/O eliminates the need for extra modules, cutting wiring time by 40%—the Michigan bakery reduced their jumper wires from 12 to 2. ABB’s industrial-grade design (unlike budget PLCs) handles temperature swings and electrical noise, with the Wisconsin plant seeing zero crashes in 18 months after replacement.
Installation & Maintenance Pitfalls (Expert Tips)
- Reverse Polarity Kills—Double-Check Power Wiring: Rookies mix up positive and negative 24VDC wires, frying the CPU’s power supply. A Ohio small manufacturer did this, costing $400 in replacement and 3 hours of downtime. Use color-coded wires (red for +24VDC, black for 0V) and verify with a multimeter before power-up. The PM511V has no reverse polarity protection—once connected wrong, it’s toast.
- Don’t Overload Built-In Relay Outputs: The 6 relay outputs are rated for 2A max per channel—exceeding this melts contacts. A Pennsylvania packaging plant connected a 3A conveyor motor directly to the output; the relay stuck closed, jamming the line. Use contactors for loads >2A (ABB recommends 1SBL161001R8001 for small motors).
- Firmware Updates Fix Hidden Bugs: Outdated firmware causes Modbus communication drops. A North Carolina water treatment plant struggled with HMI disconnects until we updated the PM511V from v2.1 to v3.0—ABB’s release notes highlighted Modbus timeout fixes. Always update firmware via USB before commissioning; use ABB’s Automation Builder software.
- Grounding Is Critical for Noise Immunity: Poor grounding leads to digital input “chatter” (false signals). A Illinois food processor’s photoeye inputs fluctuated until we grounded the PLC’s chassis to the cabinet ground bar (use 4mm² copper wire). Never daisy-chain grounds—each device needs a dedicated ground path.

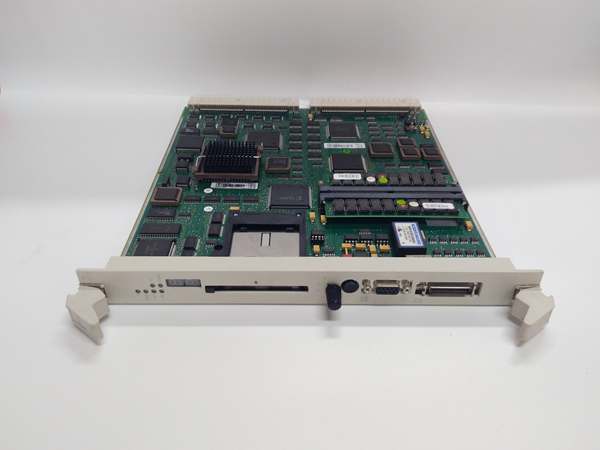

ABB PM511V 3BSE011181R1
Technical Deep Dive & Overview
The PM511V 3BSE011181R1 is an entry-level CPU module for ABB’s AC500-eCo series, engineered for small-scale automation where simplicity and cost-effectiveness matter. At its core, a 32-bit ARM Cortex-M3 processor executes control logic at 1ms per 1000 function blocks—fast enough for most small-machine applications. The built-in memory (64KB RAM, 256KB flash) stores programs and process data, with battery backup (optional ABB part 3BSE030220R1) preserving RAM during power outages.
What sets it apart from budget PLCs is the integrated I/O and industrial-grade design. The 8 digital inputs handle 24VDC sinking signals (common in sensors), while the 6 relay outputs switch low-power actuators directly—eliminating the need for discrete I/O modules. The RS485 port supports Modbus RTU, enabling communication with HMIs, variable frequency drives (VFDs), or upper-level PLCs. The module’s backplane interface (for optional expansion modules) allows scaling to larger systems if needed, making it future-proof for growing applications.
Ruggedization features include a conformal-coated PCB to resist dust and moisture, and a wide operating temperature range (-25°C to +60°C) that works in unconditioned cabinets—critical for food processing plants or outdoor water treatment skids. The compact DIN rail design saves cabinet space, and the USB service port simplifies programming and troubleshooting (no need for specialized cables). It’s not a high-performance CPU for large process lines, but for small automation loops, it’s the perfect balance of functionality, reliability, and cost—proving that entry-level doesn’t have to mean low-quality.
