Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | PCD232A 3BHE022293R0101 |
| Manufacturer | ABB |
| Product category | Process controller module |
| Processing power | 32-bit RISC processor, 100 MHz |
| Memory capacity | 16 MB flash memory; 8 MB RAM |
| I/O handling capacity | Up to 8,000 I/O points (with expansion) |
| Communication interfaces | 2 x RS-485, 1 x Ethernet (10/100 Base-T) |
| Supported protocols | Modbus RTU, Modbus TCP/IP, Profibus DP (via adapter) |
| Operating voltage | 24 V DC ±10% |
| Power consumption | Max 15 W |
| Operating temperature range | -25°C to +70°C (-13°F to +158°F) |
| Dimensions (LxWxH) | 160 mm x 100 mm x 180 mm (6.30 in x 3.94 in x 7.09 in) |
| Protection rating | IP20 |
| Programming standards | IEC 61131-3 (LD, FBD, ST, IL) |
| Installation type | DIN rail mounting (35 mm) |
| Certification | IEC 61131-2, CE, UL, ATEX |

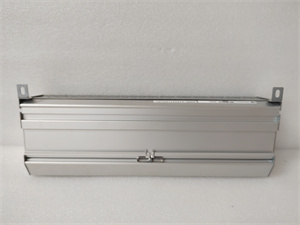

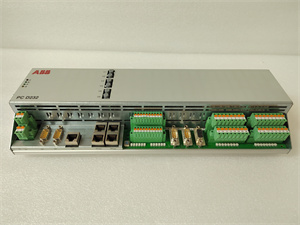

ABB PCD232A 3BHE022293R0101
Product introduction
The ABB PCD232A 3BHE022293R0101 is a compact yet powerful process controller module, part of ABB’s AC 800M series, designed for mid-sized industrial automation applications. This module serves as a localized control unit, executing control logic, processing real-time data, and coordinating with I/O modules and higher-level systems to maintain stable process operations.
ABB PCD232A 3BHE022293R0101 is engineered to balance performance and cost-effectiveness, making it ideal for applications such as small-scale manufacturing lines, water treatment plants, and building automation systems. Its 32-bit processor and expandable I/O capacity enable it to handle complex control tasks, while its rugged design ensures reliability in harsh industrial environments. Whether integrated into a distributed control system (DCS) or used as a standalone controller, ABB PCD232A 3BHE022293R0101 delivers consistent performance, facilitating precise process regulation and efficient system management.
Core advantages and technical highlights
Versatile connectivity: ABB PCD232A 3BHE022293R0101 features dual RS-485 ports and an Ethernet interface, supporting multiple communication protocols (Modbus RTU, Modbus TCP/IP, and Profibus DP via adapter). This flexibility allows seamless integration with sensors, actuators, HMIs, and enterprise systems, simplifying data exchange across the automation hierarchy.
Compact design with expandability: Despite its small footprint (160 mm x 100 mm x 180 mm), ABB PCD232A 3BHE022293R0101 can manage up to 8,000 I/O points through expansion modules, making it suitable for applications that require scalability without sacrificing space. This is particularly valuable in control cabinets with limited room, such as those in building automation or mobile equipment.
Industrial-grade reliability: The controller operates reliably across a wide temperature range (-25°C to +70°C) and resists vibration, electromagnetic interference (EMI), and voltage fluctuations. Its robust construction ensures uninterrupted performance in challenging environments, from dusty factories to outdoor utility installations.
Efficient programming and maintenance: Compliant with IEC 61131-3 standards, ABB PCD232A 3BHE022293R0101 supports multiple programming languages (LD, FBD, ST, IL), allowing engineers to use familiar tools for logic development. Its built-in diagnostics and remote monitoring capabilities simplify troubleshooting and reduce maintenance downtime.
Typical application scenarios
In municipal water treatment facilities, ABB PCD232A 3BHE022293R0101 controls filtration systems, chemical dosing pumps, and water distribution valves. Its Modbus compatibility enables integration with flow meters and pH sensors, while its processing power ensures precise regulation of chemical dosages based on real-time water quality data. The controller’s rugged design withstands the humid, chemically exposed environment of treatment plants.
Within small manufacturing workshops, ABB PCD232A 3BHE022293R0101 manages standalone production cells, such as assembly stations or packaging lines. It coordinates conveyor belts, robotic arms, and quality inspection sensors, using Ethernet to transmit production data to a central MES system. Its expandable I/O capacity allows easy addition of new equipment as the workshop scales.
In building automation systems, ABB PCD232A 3BHE022293R0101 regulates HVAC, lighting, and security systems in commercial buildings. It adjusts heating/cooling based on occupancy sensors, controls lighting schedules, and integrates with access control systems—all while communicating energy usage data to a building management platform via Modbus TCP/IP. Its low power consumption aligns with energy efficiency goals for green buildings.

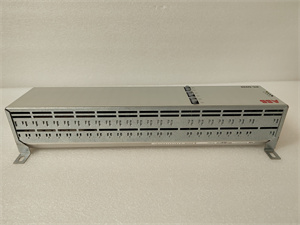

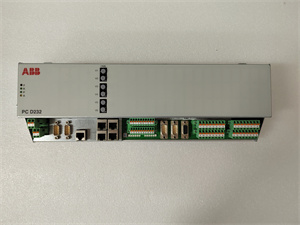

ABB PCD232A 3BHE022293R0101
Related model recommendations
ABB PCD233A 3BHE022294R0101: A higher-performance variant of ABB PCD232A 3BHE022293R0101 with a 150 MHz processor and 32 MB flash memory, suitable for more complex control tasks.
ABB CI854 3BSE022449R1: Profibus DP communication module that extends ABB PCD232A 3BHE022293R0101’s connectivity to Profibus networks, enabling integration with legacy devices.
ABB DI810 3BSE008508R1: Digital input module compatible with ABB PCD232A 3BHE022293R0101, adding 8 channels for connecting limit switches and proximity sensors.
ABB AO810 3BSE008512R1: Analog output module paired with ABB PCD232A 3BHE022293R0101, providing 4 channels for 4-20 mA control signals to valves and variable speed drives.
ABB PM860K01: A larger AC 800M controller that complements ABB PCD232A 3BHE022293R0101 in distributed systems requiring centralized coordination.
ABB HMI600: Operator interface panel designed to work with ABB PCD232A 3BHE022293R0101, offering local control and visualization of process parameters.
ABB 800xA Engineering: Software suite for programming and configuring ABB PCD232A 3BHE022293R0101, including tools for logic development and system simulation.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing ABB PCD232A 3BHE022293R0101, ensure the DIN rail is securely mounted in a clean, dry enclosure with ambient temperature between -25°C and +70°C. Required tools include a torque wrench (set to 0.5 Nm for terminal connections), screwdrivers, and an Ethernet cable tester. Verify that the 24 V DC power supply is protected by a 1A fuse and properly grounded. Use shielded cables for communication interfaces to minimize EMI, and allow 30 mm clearance around the module for ventilation.
Maintenance suggestions: For ABB PCD232A 3BHE022293R0101, perform monthly checks of status LEDs to monitor power, communication, and fault conditions. Back up configuration data quarterly to a secure device using ABB’s engineering software. Clean dust from ventilation slots annually with compressed air (max 5 bar) to prevent overheating. Inspect Ethernet and RS-485 connections quarterly for tightness and corrosion, reterminating if necessary. If communication faults occur, use the controller’s built-in diagnostic tools to check network settings or protocol compatibility. Update firmware annually to ensure compatibility with the latest I/O modules and security patches.
Service and guarantee commitment
ABB PCD232A 3BHE022293R0101 is backed by a 3-year warranty from the date of purchase, covering manufacturing defects and performance issues under normal operating conditions. ABB’s technical support team provides 24/7 assistance, with specialists available to help with programming, integration, and troubleshooting.
We offer on-site commissioning services for ABB PCD232A 3BHE022293R0101, including logic testing, communication setup, and integration with I/O modules. Extended warranty options up to 5 years are available, including annual preventive maintenance visits. In the event of a fault, ABB guarantees a 48-hour repair turnaround at regional service centers, with replacement modules available for next-day delivery to minimize downtime. All repairs use genuine ABB components, ensuring ABB PCD232A 3BHE022293R0101 maintains its original processing performance and protocol compatibility.
