Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | NRAO01 |
| Manufacturer | ABB |
| Product Category | Analog Output Module (Advant Controller Series) |
| Output Channels | 4 isolated channels |
| Signal Ranges | 4–20 mA, 0–20 mA (software-selectable per channel) |
| Resolution | 14-bit |
| Accuracy | ±0.1% of span (±25 μA) at 25°C |
| Load Impedance | 0–850 Ω |
| Update Rate | 50 ms per module |
| Isolation | 1500 V AC (channel-to-bus) |
| Power Supply | 24 V DC ±10% (via controller backplane) |
| Operating Temperature | 0°C to +60°C |
| Housing | Metal casing with IP20 rating |
| Communication | Advant Fieldbus (AF100/200 protocol) |
| Diagnostics | Open-circuit, short-circuit, over-range detection |

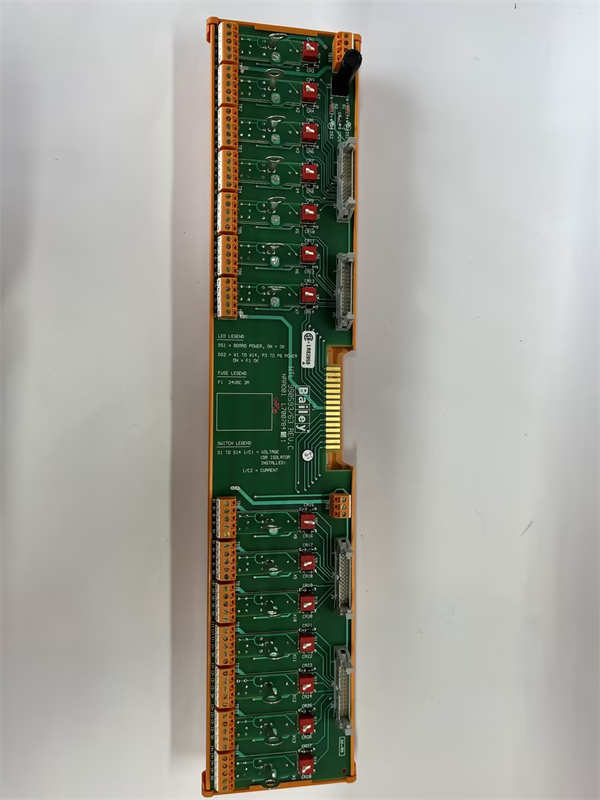

ABB NRAO01
Product Introduction
The ABB NRAO01 is a legacy analog output module designed for ABB’s Advant Controller 410/450 series, forming a critical component in industrial Distributed Control Systems (DCS). This robust module converts digital control signals into precise 4–20 mA or 0–20 mA analog outputs to drive actuators, valves, and variable-speed drives. The ABB NRAO01 integrates with ABB’s MasterPiece/Advant OCS engineering environment, enabling seamless configuration of complex process control loops.
Engineered for reliability in continuous process industries, the ABB NRAO01 features galvanic isolation (1500V AC) between control logic and field devices. Its four independent channels support simultaneous operation with individual fault diagnostics. Though superseded by newer S800/S900 I/O, the ABB NRAO01 remains operational in thousands of installations worldwide due to ABB’s long-term support commitment for critical infrastructure.
Core Advantages and Technical Highlights
ABB NRAO01 delivers exceptional longevity and stability:
Robust Industrial Design: Featuring a milled aluminum housing with conductive cooling, the ABB NRAO01 operates reliably at 60°C ambient temperature without derating. Conformal-coated PCBs resist humidity and corrosive atmospheres in chemical/power plants.
Predictable Performance: Proprietary current-loop control with ±0.1% baseline accuracy maintains signal integrity over 850 Ω loads. Automatic compensation for temperature drift (0.005%/°C) ensures stability across 0–60°C operating range.
Integrated Diagnostics: Each channel continuously monitors load conditions, detecting open circuits (>35kΩ) and short circuits (<50Ω) within 100ms. Faults trigger controller alarms while maintaining other channels’ operation.
Deterministic Communication: Using ABB’s AF100/200 fieldbus protocol, the ABB NRAO01 achieves 50ms deterministic update cycles critical for cascade control loops. Backplane power isolation prevents single-module failures from disrupting the controller.
Legacy System Integration: Native support in MasterPiece 200/Advant OCS engineering stations simplifies configuration. Module replacement preserves calibration data via controller backup.
Typical Application Scenarios
The ABB NRAO01 excels in continuous process control:
In pulp and paper mills, the ABB NRAO01 modulates chemical dosing valves for bleaching control. Its 1500V isolation withstands ground potential differences in large plants, while 4–20mA outputs reliably drive positioners over 500m cable runs.
For hydroelectric plants, this module controls turbine guide vane actuators. The ABB NRAO01‘s deterministic 50ms update rate enables precise wicket gate positioning during load changes. Metal housing dissipates heat in non-ventilated cabinets near generators.
In cement kiln systems, four channels of a single ABB NRAO01 manage fuel flow valves, ID fans, and cooler grates simultaneously. Fault containment design prevents total output loss during single-channel failures – critical for pyroprocess continuity.

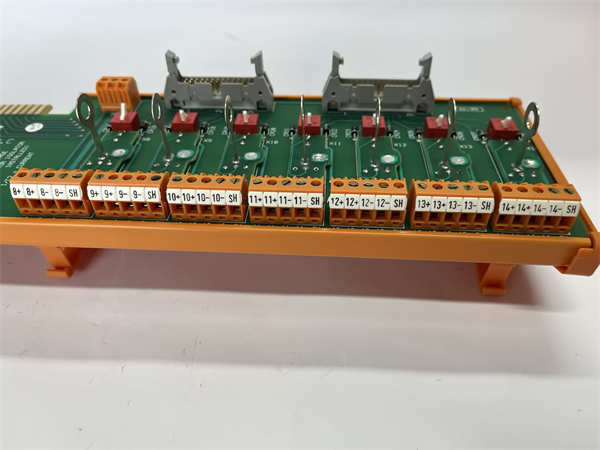

ABB NRAO01
Related Model Recommendations
NRDI01: Digital input companion module for NRAO01 in control cabinets.
NRAI02: Analog input module; completes signal chains with NRAO01.
AC450: Primary controller for NRAO01 modules in DCS architecture.
S800 AO02: Modern successor to NRAO01 with enhanced specifications.
CI520: Communication interface linking NRAO01 to OPC systems.
CP405: Control panel for monitoring NRAO01 outputs in field.
ABB 3BSE000751R1: Redundant power module for Advant racks hosting NRAO01.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
Verify Advant rack slot compatibility (supports modules 1–14). Discharge static electricity before handling. Ensure ambient temperature ≤60°C and humidity <80%. Use ABB-recommended shielded cables (e.g., Belden 8760). Ground cable shields at marshalling cabinet only.
Maintenance Suggestions:
Annual: Verify output current with precision multimeter (±0.05% accuracy). Clean cooling fins with compressed air. Check terminal tightness (0.4–0.6 Nm). Monitor “Load Fault” diagnostics in MasterPiece OCS. Replace ABB NRAO01 if status LED remains dark during operation. Always maintain spare modules for critical loops.
Service and Guarantee Commitment
ABB provides 20-year lifecycle support for NRAO01 including repair services and spare parts. Legacy modules carry 12-month warranty post-repair. Technical support includes access to Advant OCS software archives and migration consulting. ABB’s Obsolescence Management Program guarantees component sourcing through 2030. Calibration services available at certified ABB service centers with ISO 17025 traceability.
