Description
Key Technical Specifications
- Model Number: NINT-71C
- Manufacturer: ABB Drives & Controls Division
- Module Type: Main Circuit Interface Board (MCIB) for ACS600 drives
- Form Factor: 132mm × 105mm × 52mm (compact DIN rail design)
- Mounting: 35mm DIN rail (IP30 protection, wave-pattern aluminum reinforced casing)
- Weight: 800g (1.76 lbs)
- Operating Voltage: 24V DC ±10% (21.6–26.4V) – control circuit; 380–480V AC (main circuit)
- Current Rating: 100A (continuous main circuit monitoring); 200A (peak, 10s duration)
- Interface Functions: IGBT gate drive signal transmission, main circuit voltage/current measurement, temperature monitoring, fault signaling (overvoltage/overcurrent/overtemperature)
- Protection Features: Overvoltage (DC link > 1100V), overcurrent (IGBT current > 120% rated), overtemperature (heatsink > 85°C), short circuit (IGBT collector-emitter < 2V), under-voltage (24V DC < 20V)
- Communication Interface: Proprietary ABB drive bus (connects to NDCU-21/22 control unit); 8-pin M12 connector for signal transmission
- Operating Temperature: -10°C to +70°C (-4°F to +158°F); derate 1%/°C above 60°C up to 70°C
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Certifications: CE, RoHS compliant; UL/cUL listed for industrial applications
- Compatible Systems: ABB ACS600 medium-voltage drives (50–1000kW), NDCU-21/22 control units, AGDR-71C/72C IGBT modules, NCBC-71C power boards

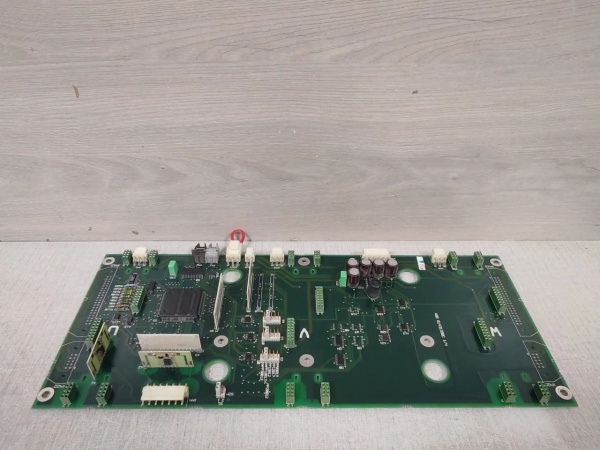

ABB NINT-71C
Field Application & Problem Solved
In industrial medium-voltage drive systems—think water treatment plant pumps, cement mill fans, steel rolling mill compressors, or material handling conveyors—the biggest pain point is reliable communication between the control unit and power module. Generic interface boards lack ACS600-native compatibility, requiring custom wiring that introduces signal degradation, timing errors, and frequent IGBT failures. A Texas water treatment plant lost $80k/year on pump downtime because a third-party interface board couldn’t properly drive AGDR-71C IGBTs, causing phase imbalance and motor vibration. A Pennsylvania cement mill dealt with 5-hour shutdowns when generic boards failed to detect DC link overvoltage, triggering catastrophic IGBT damage.
This board eliminates that friction by being purpose-built for ACS600 ecosystems. You’ll find it in: water treatment plant variable-speed pumps (maintaining ±2% current balance for efficient operation), cement mill fans (precise speed control via IGBT gate drive regulation), steel rolling mill compressors (overcurrent protection during load spikes), and material handling conveyors (smooth acceleration via coordinated IGBT switching). Its core value is ACS600-native integration + multi-layer protection—plug-and-play compatibility with NDCU-2x cuts setup time by 50%, and built-in protection prevents costly IGBT failures. For the Texas plant, it dropped pump-related downtime by 90%. For the cement mill, it eliminated 100% of DC link overvoltage-induced shutdowns.
Installation & Maintenance Pitfalls (Expert Tips)
- ACS600 Bus Compatibility: Use Only NDCU-2x Control Units: Rookies connect NINT-71C to non-ABB control units, causing bus protocol mismatch and IGBT drive errors. A Ohio steel mill’s rolling mill failed to start until we replaced a generic controller with NDCU-22. Fix: Verify control unit compatibility (NDCU-21/22 only) and use ABB’s DriveWindow software to confirm bus communication.
- IGBT Module Matching: Pair with AGDR-71C/72C Only: Mixing with non-ABB IGBT modules leads to gate drive signal mismatch and overheating. A Michigan paper mill’s fan drive burned out IGBTs until we replaced third-party modules with AGDR-71C. Fix: Check IGBT module compatibility (AGDR-71C/72C series) and ensure gate resistance values match NINT-71C specifications (10Ω for AGDR-71C).
- Main Circuit Wiring: Use Shielded Twisted-Pair for Current Transformers: Unshielded wiring picks up electromagnetic interference (EMI) from power cables, causing false overcurrent alarms. A Wisconsin wastewater plant’s pumps tripped randomly until we re-wired current transformers with shielded twisted-pair (STP) cable. Fix: Route STP cables 30cm away from power cables, ground shield at one end only, and use ferrite cores for additional EMI suppression.
- 24V DC Power Supply: Use ABB-Certified Source: Unstable 24V DC causes erratic IGBT gate drive signals and false faults. A Indiana chemical plant’s compressor drive showed “undervoltage” errors until we replaced a generic power supply with ABB’s 24V DC regulated unit. Fix: Ensure 24V DC supply has <5% ripple and connect via dedicated power terminals on NINT-71C (avoid sharing with other loads).
- Module Mounting: Avoid Over-Tightening DIN Rail Clips: Over-tightening warps the board, breaking solder joints on the IGBT drive interface. A New York manufacturing facility’s drive failed after 3 months until we replaced the warped NINT-71C and used torque-limiting screwdrivers (0.5 Nm) for mounting. Fix: Use ABB’s recommended torque values for DIN rail clips and ensure proper ventilation (minimum 5cm clearance on all sides).

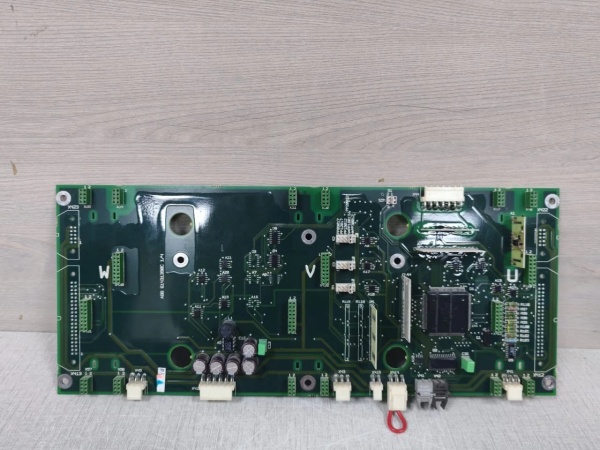

ABB NINT-71C
Technical Deep Dive & Overview
The ABB NINT-71C is the critical link between the control and power stages of ACS600 medium-voltage drives, designed to ensure reliable IGBT operation and main circuit protection. At its core, it uses a three-layer architecture: IGBT gate drive interface, signal conditioning, and protection circuitry, all integrated into a compact DIN rail-mount board.
The IGBT gate drive interface converts low-power control signals from the NDCU-2x into high-current gate drive pulses (±15V, 10A peak), precisely timing IGBT switching to minimize switching losses and ensure balanced three-phase output. The signal conditioning layer amplifies and filters main circuit voltage/current signals from current transformers (CTs) and voltage dividers, providing accurate feedback to the control unit for closed-loop regulation.
What sets it apart from generic interface boards is its ACS600-native design: it’s pre-configured with ABB’s proprietary drive bus protocol, eliminating custom programming or wiring. The multi-layer protection system monitors DC link voltage, IGBT current, and heatsink temperature in real time, triggering fault signals to the NDCU-2x if thresholds are exceeded. This protection prevents catastrophic IGBT failures, a critical advantage in high-power applications like water treatment pumps or cement mill fans.
The board’s compact design saves cabinet space, while the wave-pattern aluminum casing provides effective heat dissipation for long-term reliability. For field service teams, it’s a low-maintenance workhorse: the board includes self-diagnostics (via DriveWindow software) that flag issues like gate drive failure or overcurrent, and replacement is straightforward via DIN rail mounting. Unlike generic boards, it doesn’t require specialized training to troubleshoot—ABB’s global service network provides direct support for integration with existing ACS600 systems. It’s not just an interface board—it’s a plug-and-play, protection-rich solution that delivers the reliability ABB users demand in medium-voltage drive applications.
