Description
Key Technical Specifications
- Model Number: ABB LD MUI-01 3AFE61320946P0001
- Manufacturer: ABB Drives Division
- Communication Protocols: Profinet, EtherNet/IP, Modbus TCP, CANopen
- I/O Configuration: 8 digital I/O (configurable as input/output), 2 analog inputs (0-10V/4-20mA)
- Power Supply: 24VDC ±10%, 0.3A typical current draw
- Operating Temperature: -10°C to +60°C (14°F to +140°F)
- Protection Rating: IP20 (cabinet-mount), IEC 61800-5-1
- Mechanical Design: Hot-swappable, modular snap-on mounting to ACS880 LD drive frame
- Dimensions: 180mm × 150mm × 80mm (W×H×D)
- Communication Ports: 2 × Gigabit Ethernet (RJ45), 1 × CANopen (D-sub 9), 1 × service USB
- Isolation: 2kV AC (signal to power), 1kV AC (I/O channels)
- Compatibility: ABB ACS880 LD series modular drives (5kW-500kW)
- Certifications: CE, UL 61800-5-1, RoHS 2.0, IEC 61010-1

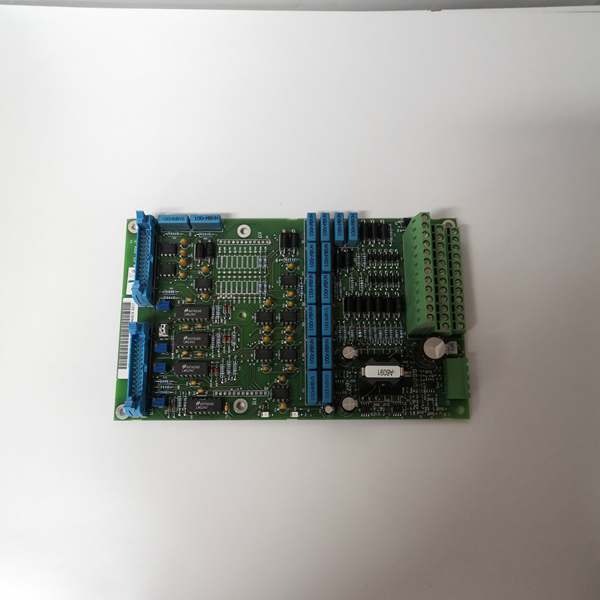

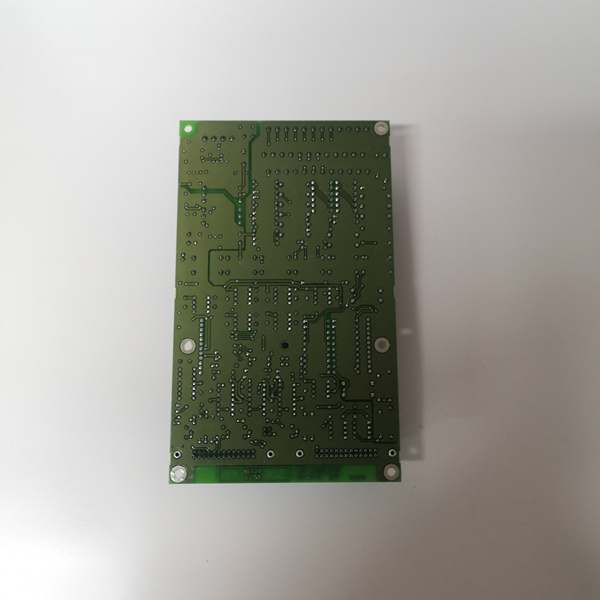

ABB LD MUI-01 3AFE61320946P0001
Field Application & Problem Solved
In industrial drive systems, the biggest headache is integrating 变频器 (inverters) with disparate factory equipment—PLCs from different vendors, HMIs, sensors, and SCADA systems. A Michigan auto plant struggled for months with its ACS880 LD drives: legacy Modbus RTU sensors couldn’t communicate with the plant’s Profinet-based PLC, forcing them to use expensive gateways that added latency and failure points. Another issue: expanding I/O for new safety sensors required shutting down the drive, causing 2-hour production losses per change. Non-modular interfaces also meant wiring chaos—dozens of jumper wires between drives and controllers, leading to frequent short circuits and troubleshooting nightmares.
You’ll find this interface unit snapped onto ACS880 LD drive frames in auto assembly lines, coal mine conveyor systems, and chemical plant pump stations. It acts as the “translation bridge” between the drive and the factory’s control network, and as an expandable I/O hub for local sensors. Its core value is seamless integration without downtime. The multi-protocol support eliminates the need for external gateways—cutting latency by 80% compared to third-party solutions. A Wyoming coal mine used it to integrate 12 drives with their Siemens PLC (Profinet) and legacy pressure sensors (Modbus RTU), reducing communication faults from 5/week to zero. The hot-swappable design let a Ohio chemical plant add 4 safety interlock sensors during a 15-minute break, no drive shutdown required.
Installation & Maintenance Pitfalls (Expert Tips)
- Protocol Configuration Must Match Both Ends: Rookies set the unit to Profinet but forget to configure the PLC’s IP address range—resulting in “device not found” errors. A Pennsylvania food plant wasted 6 hours troubleshooting this; the fix was syncing the unit’s subnet mask with the PLC. Use ABB’s Drive composer software to lock in protocol settings and verify with a network scanner.
- Shield Grounding—Single Point Only: I/O and Ethernet cable shields grounded at both ends create noise loops, causing analog signal drift. A Texas chemical plant’s flow sensor readings fluctuated by 10% until we re-grounded shields only at the drive end. Use 360° shield clamps (ABB part 1SFL500001R0001) for reliable grounding.
- Never Hot-Swap During Drive Operation: While the unit is rated for hot-swap, pulling it during high-speed drive operation (e.g., 50Hz motor speed) can corrupt drive parameters. A North Carolina textile mill learned this the hard way: hot-swapping mid-cycle erased their speed reference settings, leading to a 3-hour reset. Always hot-swap during idle or low-speed operation (<10Hz).
- Firmware Version Compatibility: Outdated firmware causes protocol handshake failures. A Colorado mining operation installed the unit with v2.1 firmware, which didn’t support their PLC’s Profinet IRT mode. Upgrading to v3.5 (via USB) fixed the issue in 30 minutes. Always check ABB’s compatibility matrix—drive firmware and MUI-01 firmware must be within 1 version of each other.

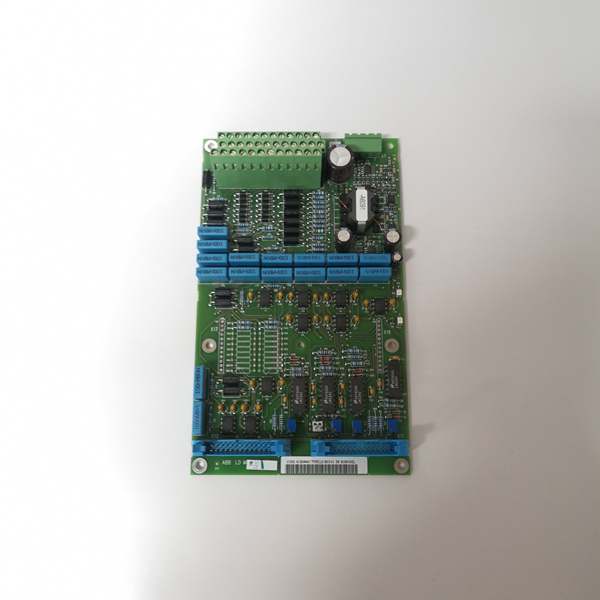

ABB LD MUI-01 3AFE61320946P0001
Technical Deep Dive & Overview
The LD MUI-01 3AFE61320946P0001 is a modular interface unit designed to solve integration pain points for ABB’s ACS880 LD series drives. It functions as two core components in one: a multi-protocol communication gateway and an expandable I/O hub. Internally, a 32-bit ARM processor runs parallel protocol stacks (Profinet, EtherNet/IP, Modbus TCP) that translate between the drive’s native control language and external systems—eliminating the latency of external gateways by processing data directly on the drive frame.
The I/O section uses optically isolated channels to protect both the drive and external sensors from voltage spikes. Digital channels are software-configurable (sinking/sourcing) via Drive Composer, while analog inputs feature 16-bit resolution for precise measurement of pressure, temperature, or flow. The hot-swappable design relies on spring-loaded connectors that maintain power and communication continuity during replacement—critical for 24/7 processes.
It communicates with the ACS880 LD drive’s central controller via a dedicated backplane bus, enabling real-time data exchange (drive speed, current, fault codes) at 1ms intervals. The unit’s modular snap-on design requires no tools for installation, and the compact form factor preserves cabinet space. What makes it field-ready is the ruggedization: conformal-coated PCBs resist dust and oil, and the -10°C to +60°C operating range handles unconditioned cabinets in mining and manufacturing. It’s not just an interface—it’s a way to future-proof drives, letting plants add new sensors or switch protocols without replacing the entire drive system.
