Detailed Parameter Table
| Parameter name | Parameter value |
| Product model | HIEE401782R0001 LTC391AE01 |
| Manufacturer | ABB |
| Product category | Interface Module |
| Interface type | Serial |
| Data transfer rate | Up to 1 Mbps |
| Power supply compatibility | DC 5V ± 5% |
| Connector type | DB 9 |
| Operating temperature range | -40 °C to +85 °C |
| Dimensions | 70 mm x 50 mm x 20 mm |
| Weight | 50 g |
| Environmental rating | IP20 |
| Communication protocol | Ethernet/IP, Profinet |

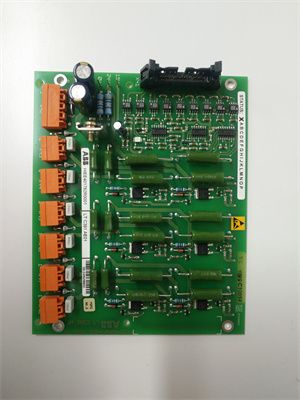

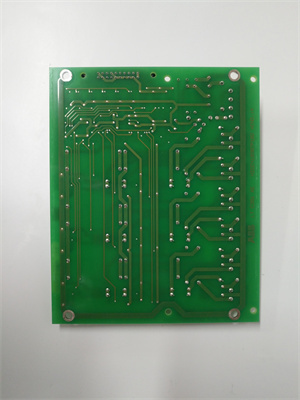

ABB HIEE401782R0001 LTC391AE01
Product Introduction
The ABB HIEE401782R0001 LTC391AE01 is an advanced interface module designed for seamless integration within industrial systems. As part of ABB’s comprehensive range of industrial control products, it plays a pivotal role in enhancing data transfer efficiency and reliability. This module serves as a crucial link between different components in an automation system, enabling smooth communication.
It is engineered to handle high – speed data transfer, which is essential for real – time communication in complex industrial setups. Whether it’s in a large – scale manufacturing plant or a power generation facility, the HIEE401782R0001 LTC391AE01 ensures that data is transmitted accurately and promptly. Its design is optimized for use in industrial environments, with features that make it suitable for a wide variety of applications.
Core Advantages and Technical Highlights
High – Speed Data Transfer
The HIEE401782R0001 LTC391AE01 is engineered to deliver high – speed data transfer capabilities. With a data transfer rate of up to 1 Mbps, it enables real – time communication in complex industrial environments. This is crucial for applications where timely data exchange is necessary, such as in automated production lines where instant control decisions are based on sensor data.
Wide Compatibility
Featuring Ethernet/IP and Profinet compatibility, this module ensures seamless integration with a wide array of existing systems. It can easily interface with different industrial devices, facilitating efficient data exchange between components from various manufacturers. This compatibility reduces the complexity of system integration and allows for greater flexibility in designing industrial automation systems.
Versatile Power Supply
With an operating voltage range of 12 – 48 VDC, the HIEE401782R0001 LTC391AE01 is highly versatile. It can be used in a broad spectrum of industrial applications, from low – voltage sensor networks to more power – hungry industrial equipment. Its ability to operate within this wide voltage range makes it suitable for different power supply setups commonly found in industrial settings.
Compact and Robust Design
Despite its compact dimensions of 70 mm x 50 mm x 20 mm, the module is robustly built. It can withstand the harsh conditions often present in industrial environments, such as vibration and electromagnetic interference. The IP20 environmental rating provides protection against dust and minor water splashes, ensuring reliable operation even in less – than – ideal conditions.
Typical Application Scenarios
In industrial automation systems, the ABB HIEE401782R0001 LTC391AE01 is invaluable. For example, in a manufacturing plant with numerous automated machines, it can connect sensors on the production line to the central control system. It collects data from sensors that monitor factors like temperature, pressure, and the position of mechanical parts. This data is then transmitted in real – time to the control system, allowing for immediate adjustments to the production process.
In a power generation facility, it can be used to interface between different control modules. It enables the transfer of data related to power output, voltage levels, and equipment status. This helps in the efficient monitoring and control of power generation and distribution processes, ensuring stable power supply.
In a logistics warehouse with automated guided vehicles (AGVs), the HIEE401782R0001 LTC391AE01 can connect the AGV control system to sensors that detect obstacles or the presence of goods. It enables seamless communication, allowing the AGVs to operate safely and efficiently within the warehouse environment.
ABB HIEE401782R0001 LTC391AE01
Related Model Recommendations
ABB LTC392AE01: Belongs to the same series as the HIEE401782R0001 LTC391AE01, with potentially enhanced features such as higher data transfer rates or additional interface options. It could be used in more demanding applications where the standard capabilities of the LTC391AE01 are not sufficient.
ABB HIEE401783R0001: Might be an upgrade version of the HIEE401782R0001 LTC391AE01, offering improved performance in terms of reliability or compatibility with newer industrial protocols. It could be considered when system upgrades are planned to keep up with the latest technological advancements.
ABB LTC381AE01: Could be a related model with a different set of features, perhaps optimized for specific industries or applications. It may have a different form factor or interface configuration, making it suitable for applications where the HIEE401782R0001 LTC391AE01‘s standard features need to be adjusted.
ABB HIEE401784R0001: May be designed as a replacement option for the HIEE401782R0001 LTC391AE01 in cases where the original model is no longer available or needs to be updated. It likely maintains compatibility with existing systems while offering some improvements.
ABB LTC390AE01: Part of the same family, it may have more basic functionality compared to the HIEE401782R0001 LTC391AE01, making it suitable for less complex industrial applications where cost – effectiveness is a priority.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB HIEE401782R0001 LTC391AE01, ensure the installation area is clean, dry, and free from excessive dust. Since it has an IP20 rating, it is suitable for indoor use. Use appropriate tools, such as screwdrivers and wire strippers, to connect the module. When connecting to the power supply, make sure to match the correct voltage (12 – 48 VDC) and observe proper polarity. Use high – quality shielded cables to connect to other devices to minimize electromagnetic interference.
Maintenance Suggestions
Regularly check the connection cables for any signs of wear or looseness. Inspect the module for overheating, which can be indicated by abnormal performance or a rise in temperature. In case of communication issues, check the communication settings and ensure compatibility with other connected devices. If a hardware failure occurs, contact ABB’s technical support or use genuine ABB replacement parts for repair. To maintain optimal performance, consider periodic software updates if available.
Service and Guarantee Commitment
ABB stands firmly behind the HIEE401782R0001 LTC391AE01 with a comprehensive service and guarantee commitment. The product comes with a standard warranty, during which ABB will address any manufacturing defects promptly. ABB’s global technical support team is available around the clock to assist customers with installation, commissioning, and troubleshooting. Customers can access a wealth of online resources, including detailed user manuals and technical documentation, on ABB’s official website. In the event of major issues, ABB offers on – site support to minimize system downtime, reflecting its dedication to ensuring seamless operation of industrial systems and customer satisfaction.
