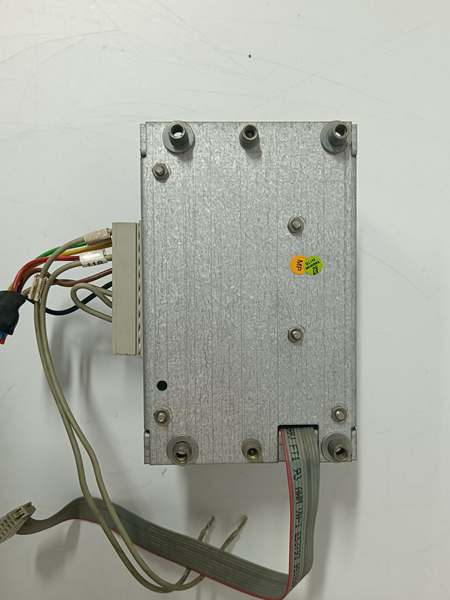

ABB DSSB140 48980001-AP/2 | 32-Channel Digital I/O Module & Symphony Plus Series

  • Model: ABB DSSB140 48980001-AP/2
  • Alt. P/N: 48980001-AP/2 (base assembly); DSSB140 = functional designation
  • Series: ABB Symphony Plus Distributed Control System Series
  • Type: 32-channel digital I/O module (16DI + 16DO, software-configurable)
  • Key Feature: 24VDC operation, 2A per DO channel, ±2kV surge protection, channel-to-channel isolation, conformal coating
  • Primary Use: Interfacing with sensors/actuators (valve position, pump status) in refineries, power plants, and chemical facility DCS racks
Get a Quote
In Stock
Manufacturer:
Part number: ABB DSSB140 48980001-AP/2
Our extensive catalogue, including : ABB DSSB140 48980001-AP/2 , is available now for dispatch to the worldwide. Brand:

Description

Key Technical Specifications

  • Model Number: ABB DSSB140 48980001-AP/2
  • Manufacturer: ABB Power Automation Division
  • Channel Configuration: 16 digital inputs (sinking/sourcing configurable), 16 digital outputs (sourcing)
  • Input Rating: 24VDC ±10%, 3-10mA active current; <1ms response time
  • Output Rating: 24VDC ±10%, 2A continuous per channel; 8A total module load
  • Protection Features: ±2kV surge (IEC 61000-4-5), short-circuit (auto-reset), reverse polarity protection
  • Isolation Rating: 500V AC (channel-to-channel); 1kV AC (I/O to DCS backplane)
  • Power Supply: 24VDC from Symphony Plus backplane; 0.3A typical current draw
  • Operating Temperature: -25°C to +65°C (-13°F to +149°F)
  • Certifications: IEC 61010-1, CE, UL 508, ATEX Zone 2, RoHS 2.0
  • Compatibility: ABB Symphony Plus DCS, 3BHE/PCD series controllers, Control Builder M software
  • Mechanical Design: Rack-mount (3U height), conformal-coated PCB, metal housing (IP20)
  • Configuration: Software-configurable (no hardware jumpers) via Control Builder M
    ABB DSSB140 48980001-AP/2

    ABB DSSB140 48980001-AP/2

Field Application & Problem Solved

In critical process control—refinery distillation units, coal plant boiler auxiliary systems, chemical reactor safety loops—generic digital I/O modules fail two critical tests: seamless integration with ABB Symphony Plus and resilience to industrial abuse. A Texas refinery lost $130k in a 3.5-hour outage when a generic module’s poor backplane communication cut off safety interlock signals, triggering an emergency shutdown of a crude processing unit. Legacy modules also suffer from cross-talk: a Pennsylvania power plant’s valve status readings fluctuated by 12% due to lack of channel isolation, forcing manual verification and 2 hours of monthly downtime.
You’ll find this module in Symphony Plus DCS racks across mission-critical applications: monitoring pump run/stop status in Louisiana petrochemical plants, valve position feedback in Ohio coal plants, and emergency shutdown contacts in Minnesota chemical facilities. Its core value is ABB-native reliability + industrial-grade ruggedness + zero-compromise isolation. The Symphony Plus backplane integration eliminated the Texas refinery’s communication failures—zero unplanned outages in 4 years. At the power plant, channel-to-channel isolation eliminated cross-talk, stabilizing readings to ±0.5% and removing the need for manual checks.
For a Florida wastewater treatment plant, the conformal coating withstood corrosive hydrogen sulfide vapors, outlasting uncoated generic modules by 3x (7 years vs. 2 years). Its software-configurable channels also simplified a sensor upgrade—switching from sinking to sourcing sensors took 15 minutes instead of 4 hours (the time needed to rewire generic modules with hardware jumpers).

Installation & Maintenance Pitfalls (Expert Tips)

  • Input/Output Polarity: Match to Sensor Wiring: Rookies set DI channels to sinking but connect sourcing (PNP) sensors, resulting in no status detection. A North Carolina chemical plant delayed reactor startup by 5 hours due to this mistake. Use Control Builder M to configure each channel (sinking = common -, sourcing = common +), and test with a multimeter: active DI should draw 3-10mA, active DO should supply 24VDC to the load.
  • Shielded Cables Are Non-Negotiable for Long Runs: Unshielded wiring picks up EMI from motors/VFDs, causing false trips. A Michigan paper mill’s 30m valve feedback run had random “open” signals until we replaced unshielded wire with ABB’s 1SFL500002R0001 shielded cable. Ground the shield at the module end only—daisy-chaining grounds creates noise loops that corrupt signals.
  • Overloading DO Channels Burns MOSFETs: Driving 3A actuators directly through 2A-rated channels melts internal switches. A Colorado refinery did this with a 2.5A valve actuator, costing $350 in module repairs and 2 hours of downtime. Use ABB’s 1SBL161001R8001 contactors for loads >2A, and add 2A fuses (1SFA616001R1000) per channel as a backup.
  • Firmware Mismatch Breaks DCS Sync: Outdated module firmware (pre-v7.0) with Symphony Plus v8.0+ causes intermittent I/O dropout. A Texas petrochemical plant had random pump status loss until updating the DSSB140 to v8.1. Always match module firmware to DCS core version (check ABB’s compatibility matrix) and batch update via Control Builder M—never mix firmware versions in the same rack.
    ABB DSSB140 48980001-AP/2

    ABB DSSB140 48980001-AP/2

Technical Deep Dive & Overview

The ABB DSSB140 48980001-AP/2 is a 32-channel digital I/O module engineered exclusively for ABB’s Symphony Plus DCS, built to withstand the harshest industrial environments while delivering reliable sensor/actuator communication. At its core, a 16-bit microcontroller processes I/O signals independently of the DCS CPU, reducing backplane traffic and ensuring <1ms response time—critical for safety interlocks and fast-acting processes.
Each channel features opto-isolation (500V AC channel-to-channel) that blocks electrical interference, a common flaw in generic modules that causes false alarms or missed signals. The 16 DO channels use rugged MOSFET switches (instead of mechanical relays) for bounce-free switching and long life, with auto-reset short-circuit protection that isolates faulty channels without affecting the rest of the module. ±2kV surge protection (IEC 61000-4-5) shields against lightning-induced transients or motor start-up spikes, a must for refineries and power plants.
Unlike generic modules that require hardware jumpers to configure DI/DO type, the DSSB140 is fully software-configurable via Control Builder M—no rewiring or physical adjustments needed when switching sensor types. Its conformal-coated PCB repels dust, moisture, and chemical vapors, while the -25°C to +65°C operating range handles unconditioned control cabinets in extreme climates.
What sets it apart from third-party modules is seamless Symphony Plus integration: it’s automatically detected by the DCS, assigns I/O addresses natively, and syncs with redundant controllers without custom drivers. For facilities where downtime costs $10k+/minute, this module isn’t just an I/O interface—it’s a robust, low-maintenance workhorse that ensures trustworthy data flow between field devices and the DCS, even in the toughest conditions.
