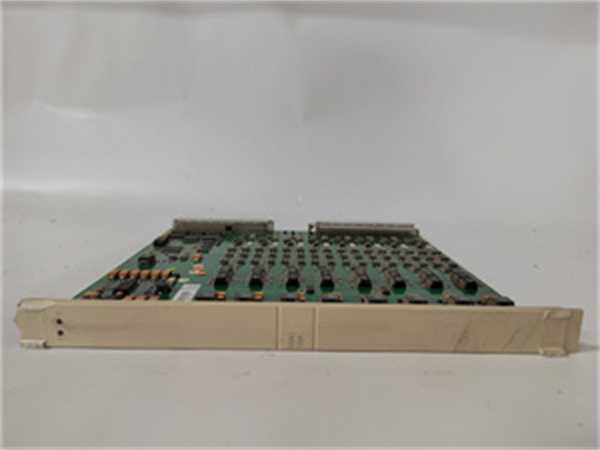

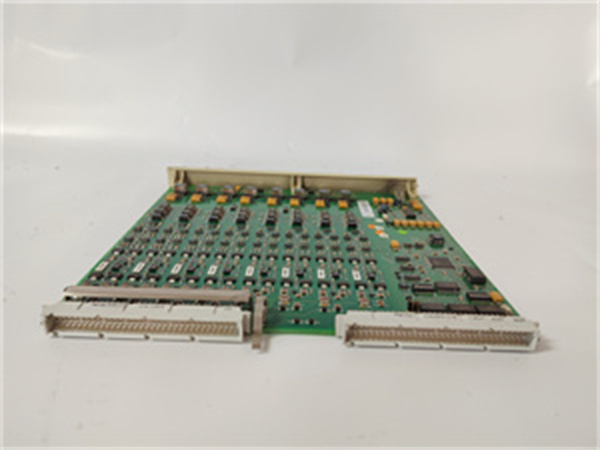

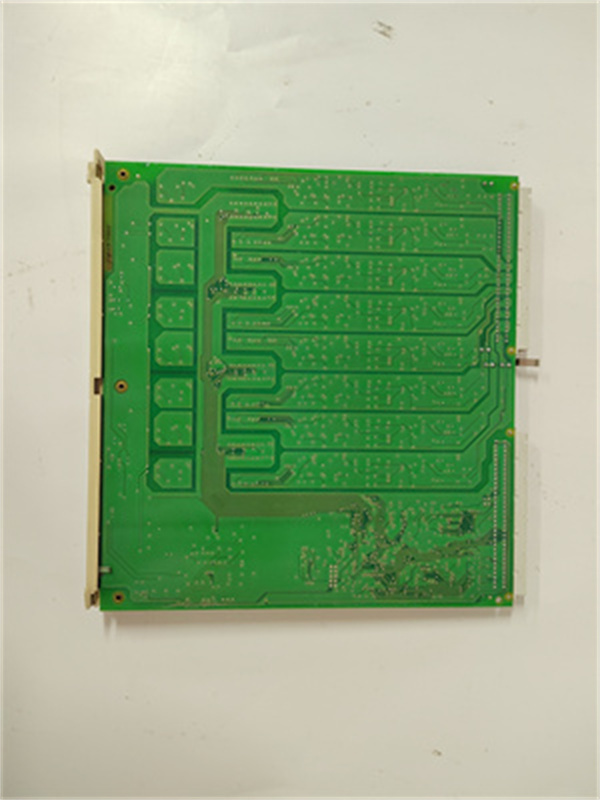

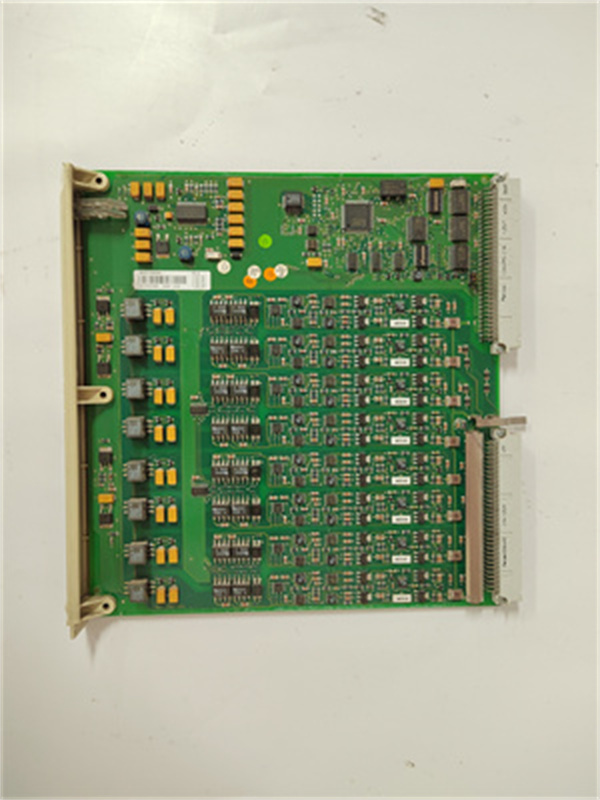

ABB DSAO120 57120001-EY

Product introduction

The ABB DSAO120 57120001-EY is a high-precision analog output module designed to convert digital control signals from automation systems into proportional analog outputs for controlling field devices. As a key component in ABB’s Advant Controller I/O family, ABB DSAO120 57120001-EY enables precise regulation of valves, variable speed drives, and other process control equipment in industrial environments.

ABB DSAO120 57120001-EY features 8 isolated channels, each configurable as either 4-20 mA current or 0-10 V DC voltage output, providing flexibility for diverse application requirements. Its 16-bit resolution and ±0.1% accuracy ensure tight control over process variables, while its robust isolation protects against electrical noise and ground loops. Whether deployed in chemical processing, water treatment, or manufacturing, ABB DSAO120 57120001-EY delivers reliable analog output signals, serving as a critical link between digital controllers and analog actuators.

Core advantages and technical highlights

Channel-level configurability: Each of the 8 channels in ABB DSAO120 57120001-EY can be independently set to current (4-20 mA) or voltage (0-10 V DC) output, eliminating the need for separate modules for mixed signal types. In a food processing plant, this allows the same module to control a 4-20 mA valve positioner and a 0-10 V DC temperature controller, reducing cabinet space and simplifying system design.

High accuracy and stability: With ±0.1% full-scale accuracy and 16-bit resolution, ABB DSAO120 57120001-EY ensures precise control of critical processes. In a pharmaceutical batch reactor, this accuracy translates to maintaining temperature within ±0.1°C of the setpoint by precisely regulating the heating element via a 4-20 mA signal. The module’s low drift (<0.01% per °C) ensures consistent performance across temperature variations, reducing the need for frequent recalibration.

Robust isolation: ABB DSAO120 57120001-EY incorporates 2.5 kV AC isolation between channels and from channels to backplane, preventing interference from high-voltage equipment or ground potential differences. In a steel mill, where electrical noise is prevalent, this isolation ensures that the 4-20 mA signal to a roll position actuator remains stable despite nearby arc furnaces, avoiding process deviations and product defects.

Wide environmental tolerance: Operating reliably from -40°C to 70°C, ABB DSAO120 57120001-EY performs in extreme conditions, from arctic oil pipelines to desert solar plants. Its ability to withstand temperature extremes without performance degradation eliminates the need for climate-controlled enclosures, reducing installation costs. In a remote oil well control panel, this durability ensures consistent operation of choke valves regardless of seasonal temperature swings.

Typical application scenarios

In a chemical plant’s distillation column control system, ABB DSAO120 57120001-EY regulates 8 critical control valves. Four channels are configured as 4-20 mA to control flow control valves (converting 0-100% opening to 4-20 mA), while the remaining four use 0-10 V DC to adjust heating elements and reflux pumps. The module’s high accuracy ensures that flow rates are maintained within ±0.5% of setpoint, critical for achieving precise product purity. Its isolation prevents cross-talk between channels, ensuring that a fault in one valve’s signal does not affect others.

In a water treatment facility’s filtration process, ABB DSAO120 57120001-EY controls variable frequency drives (VFDs) for filter backwash pumps and chemical dosing pumps. The 4-20 mA outputs from the module adjust pump speeds proportionally to water flow rates, optimizing energy use and chemical dosage. The module’s ability to operate in humid environments (up to 95% RH non-condensing) ensures reliable performance in the facility’s damp control room, while its fast update rate (10 ms) allows rapid response to changes in inlet water quality.

ABB DSAO120 57120001-EY

Related model recommendations

ABB DSAI130 57120001-FC: An analog input module that works with ABB DSAO120 57120001-EY to create a complete analog I/O system.

ABB 200900-004: A heavy-duty terminal block used to terminate field wiring for ABB DSAO120 57120001-EY outputs in control panels.

ABB PM633: A PLC that generates digital control signals for ABB DSAO120 57120001-EY in automation systems.

ABB CI854A 3BSE022496R1: A communication module that enables the controller to send output setpoints to ABB DSAO120 57120001-EY.

ABB PPE091A101 3BHE044481R0101: A redundant power supply ensuring stable operation of ABB DSAO120 57120001-EY in critical applications.

ABB TB857: A surge protection terminal block that shields ABB DSAO120 57120001-EY outputs from voltage transients in industrial environments.

Installation, commissioning and maintenance instructions

Installation preparation: Mount ABB DSAO120 57120001-EY into the compatible backplane, ensuring proper alignment with connector pins. Torque the retaining screw to 0.5 Nm. Connect field devices using 0.5-1 mm² shielded twisted-pair cable, with each channel wired to its corresponding terminal. Ground cable shields at the module end. Configure channel types (current/voltage) via software before commissioning. Power the module via the backplane 24 V DC supply, protected by a 1A fuse. Use a torque screwdriver set to 0.5 Nm for terminal connections. Power off the system during installation to prevent electrical hazards.

Maintenance suggestions: Inspect ABB DSAO120 57120001-EY quarterly for loose connections, dust accumulation, and LED status (power: green, fault: red). Clean ventilation slots with compressed air. Verify accuracy annually using a calibrated signal generator, checking that 50% output (12 mA / 5 V) is within ±0.1% of setpoint. Test channel isolation with a megohmmeter (2.5 kV for 1 minute) every 2 years. If a channel fails calibration or exhibits drift beyond specifications, replace the module—use only ABB-certified replacements to maintain system accuracy.

Service and guarantee commitment

ABB DSAO120 57120001-EY is backed by a 5-year warranty from installation, covering manufacturing defects and ensuring accuracy within published specifications. ABB’s technical support team provides response within 4 hours for critical issues, with remote diagnostics available 24/7 to assist with configuration or troubleshooting. On-site service is available within 72 hours in major industrial regions for complex problems.

The warranty includes access to calibration procedures and configuration software. Extended service contracts offer annual calibration verification and priority support, ensuring the module maintains precision throughout its 15-year design lifespan. ABB’s commitment to quality underscores confidence in ABB DSAO120 57120001-EY as a reliable component in industrial control systems.
