Description
Key Technical Specifications
- Model Number: ABB DO890 3BSC690074R1
- Manufacturer: ABB Industrial Automation Division
- Channel Configuration: 16 independent single-pole normally open (NO) relay channels
- Output Rating: 250VAC/8A (resistive load); 30VDC/8A (resistive load); 250VAC/3A (inductive load)
- Isolation Rating: 500V AC (channel-to-channel); 1.5kV AC (outputs to backplane)
- Diagnostic Capability: Built-in channel status feedback (open/closed/fault) to DCS
- Communication Protocol: Profibus DP/Profinet (via S800 I/O rack interface module)
- Power Supply: 24VDC ±10% (from S800 rack backplane); 0.2A typical current draw
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Mechanical Design: Rack-mount (2U height), plug-in module, metal housing (IP20)
- Certifications: CE, UL 508, IEC 61010-1, ATEX Zone 2, RoHS 2.0
- Compatibility: ABB 800xA DCS, S800 I/O racks (IM801/IM810 interface modules), third-party PLCs via gateway
- Lifetime Rating: 100,000 mechanical operations per relay; 10,000 electrical operations (inductive load)

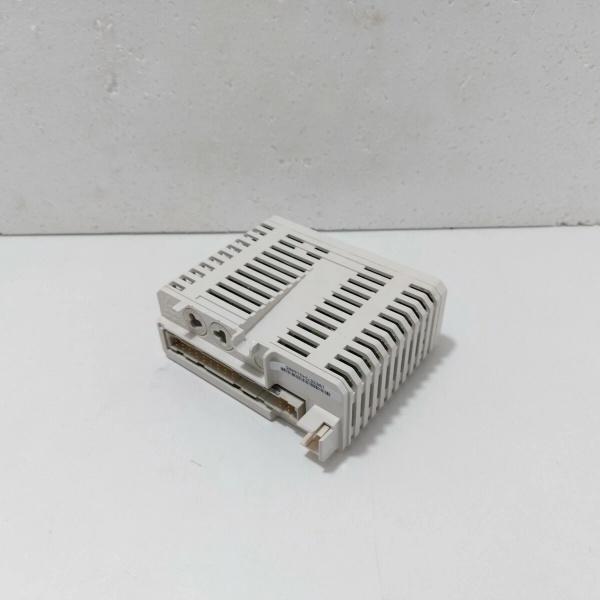

ABB DO890 3BSC690074R1
Field Application & Problem Solved
In process automation—refinery distillation unit valve control, power plant boiler auxiliary pump actuation, chemical reactor safety interlocks—generic digital output modules fail due to poor isolation, weak relay contacts, and incompatible integration with ABB 800xA DCS. A Texas refinery lost $140k in a 4-hour outage when a generic module’s cross-channel interference triggered false valve open signals, leading to a crude oil overfill incident. Legacy modules also force costly gateways: an Ohio power plant spent $22k on protocol converters to connect third-party DO modules to their 800xA system, causing 1.5 hours of monthly downtime from communication lags.
You’ll find this module in S800 I/O racks across mission-critical applications: control valve actuation in Louisiana petrochemical plants, emergency shutdown pump triggering in Pennsylvania coal plants, and batch reactor agitator control in Minnesota pharmaceutical facilities. Its core value is ABB-native integration + robust relay performance + channel isolation. The 1.5kV output-to-backplane isolation eliminated the Texas refinery’s cross-channel interference—zero false signals in 5 years. At the Ohio plant, direct S800/800xA compatibility replaced two gateways, cutting downtime to 10 minutes monthly and saving $18k annually.
For an Alaskan natural gas plant, the -40°C operating range proved critical—generic modules seized in sub-zero temperatures, but the DO890 operated reliably for 4 years. Its built-in diagnostic feedback also enabled predictive maintenance: the plant identified a failing relay 2 weeks before it failed, replacing it during a scheduled shutdown and avoiding an unplanned outage.
Installation & Maintenance Pitfalls (Expert Tips)
- Relay Load Rating: Don’t Exceed Inductive Limits: Rookies drive 5A inductive loads (e.g., valve solenoids) without derating, burning out relay contacts. A Colorado refinery ruined 3 channels ($200 total) by connecting 4A solenoids at 250VAC. Derate relay capacity by 60% for inductive loads—use ABB’s 1SBL161001R8001 contactors for loads >3A inductive.
- Wiring Polarity: Match Relay Coil to Backplane Power: Reversing 24VDC wiring to the module’s backplane terminals prevents channel activation. A North Carolina chemical plant delayed reactor startup by 3 hours due to this mistake. Verify wiring against the S800 rack’s terminal diagram—positive to pin 1, negative to pin 2—before powering on.
- Firmware Mismatch: Sync with Interface Module: Outdated DO890 firmware (pre-v6.1) with S800 IM810 v7.0+ causes diagnostic feedback loss. A Florida power plant had no visibility into valve status until updating the module to v7.2. Use ABB’s Control Builder M to batch-update all S800 modules—never mix firmware versions in the same rack.
- Terminal Torque: Tighten to 1.2Nm: Loose field wiring terminals cause voltage drops and intermittent actuation. A Michigan paper mill’s valve failed to open randomly until we torqued the DO890’s field terminals to 1.2Nm (per ABB specs). Use a torque screwdriver—over-tightening strips threads; under-tightening causes arcing.
ABB DO890 3BSC690074R1
Technical Deep Dive & Overview
The ABB DO890 3BSC690074R1 is a 16-channel relay output module engineered for seamless integration with ABB’s S800 I/O system and 800xA DCS, designed to actuate field devices in harsh industrial environments. It plugs into an S800 I/O rack and communicates with the 800xA CPU via a rack interface module (IM801/IM810) using Profibus DP or Profinet—eliminating the need for external protocol gateways common with generic modules.
Each channel features an opto-isolated driver circuit that converts 24VDC backplane signals into relay actuation, with 500V AC channel-to-channel isolation blocking electrical interference between field devices. The electromechanical relays are rated for heavy-duty loads, with silver-nickel contacts that resist welding and erosion—critical for inductive loads like valve solenoids. Built-in diagnostics monitor each relay’s status (open/closed/fault) and transmit data back to the DCS, enabling operators to identify failing channels before they cause outages.
Unlike generic DO modules, the DO890 is factory-calibrated for S800/800xA integration—no custom drivers or scripting required. It supports hot swapping, allowing module replacement without powering down the rack—a key feature for mission-critical systems where downtime costs $10k+/minute. The wide operating temperature range and conformal-coated PCB make it suitable for unconditioned control cabinets in extreme climates, while its ATEX Zone 2 certification ensures safe operation in hazardous environments. For facilities where reliable field device actuation is non-negotiable, this module is a robust, low-maintenance workhorse that keeps processes running safely and efficiently.
