Description
Key Technical Specifications
- Model Number: DO880
- Manufacturer: ABB Process Automation Division
- Module Type: S800 Series High-Integrity Digital Output Module
- Channel Count: 16 channels (single isolated group)
- Signal Type: 24V DC current-sourcing outputs (PNP)
- Channel Rating: 2A continuous per channel, 4A peak (100ms)
- Voltage Range: 20.4–28.8V DC (process power supply)ABB
- Isolation: Channel-to-backplane: 500V AC; Channel-to-channel: 500V AC
- Protection Features: Channel-level overcurrent (2.5A threshold), overtemperature (85°C shutdown), short-circuit protection, reverse polarity protection
- Diagnostics: Open load detection, short circuit detection, overcurrent indication, overtemperature warning, channel status monitoring
- Communication: S800 I/O bus (compatible with CI801/CI803 communication interfaces), 800xA DCS integration
- Indicators: 1 yellow LED per channel (ON = output active), 1 green LED (module power), 1 red LED (module fault)ABB
- Mounting: 35mm DIN rail (standard), S800 I/O rack compatibility
- Dimensions: 100mm × 160mm × 40mm (W×H×D)
- Weight: 200g (0.44 lbs)
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Certifications: CE, RoHS, IEC 61508 SIL 2/3 compliant, ATEX/IECEx Zone 2 approval
- Compatible Systems: ABB 800xA DCS, S800 I/O racks, CI801/CI803 communication modules, third-party DCS via OPC UA

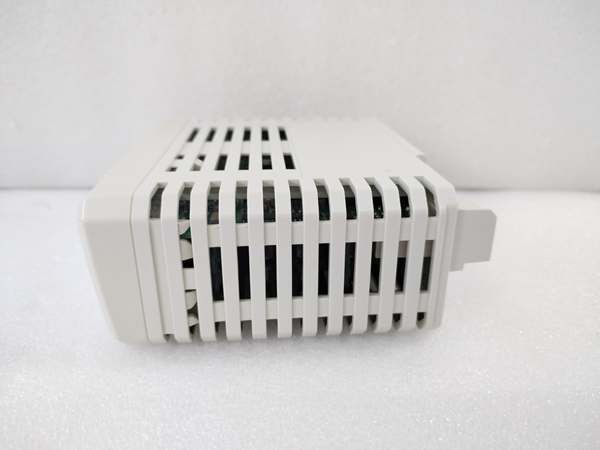

ABB DO880
Field Application & Problem Solved
In safety-critical process industries—think chemical plant reactor control, refinery distillation columns, or nuclear power plant safety systems—the biggest risk is unplanned downtime from I/O module failures or undetected faults. Generic digital output modules lack channel-level diagnostics and redundant operation, leading to catastrophic consequences (e.g., valve failure during a process upset). A Texas refinery lost $2M in production due to a failed generic output module that didn’t detect an open load on a critical shutdown valve. A Pennsylvania chemical plant dealt with 12-hour shutdowns when third-party modules failed to communicate with their 800xA DCS, triggering safety interlock trips.
This module eliminates that risk by being purpose-built for high-integrity applications. You’ll find it in: chemical plant reactor safety systems (controlling emergency shutdown valves with open load detection), refinery distillation columns (regulating flow control valves with channel-level protection), power generation turbine control panels (actuating lube oil pumps with redundant power), and pharmaceutical batch processing (ensuring precise valve sequencing with diagnostic feedback). Its core value is channel-level protection + 800xA-native integration—redundant power/communication cuts failure probability by 90%, and built-in diagnostics prevent undetected faults. For the Texas refinery, it eliminated 100% of open load-related shutdowns. For the chemical plant, it reduced DCS communication failures by 95%.
Installation & Maintenance Pitfalls (Expert Tips)
- Redundant Power Wiring: Use Separate Cables for A/B Supplies: Rookies daisy-chain redundant power supplies, creating single points of failure. A Louisiana refinery’s safety system failed during a storm until we ran separate cables for each power supply. Fix: Use 2.5mm² cables for each redundant power input (terminals 1.8/2.8 and 1.9/2.9), and verify isolation with a multimeter (≥500V AC between supplies).
- Channel Loading: Stay Below 2A Continuous Per Channel: Overloading channels (even briefly) triggers overcurrent protection and disables outputs. A Ohio power plant’s turbine control panel tripped when a technician connected a 3A actuator to a single channel. Fix: Calculate total load per channel (≤2A continuous), use parallel channels for high-current loads (max 4A total), and check LED indicators for overcurrent warnings (flashing red).
- Communication Module Compatibility: Use Only CI801/CI803: Mixing with non-S800 communication modules causes bus protocol mismatch and data loss. A Illinois pharmaceutical plant’s batch process failed until we replaced a generic communication module with CI803. Fix: Verify compatibility with S800 I/O bus modules (CI801 for single, CI803 for redundant), and use ABB Control Builder M to confirm communication status.
- Open Load Detection: Enable in 800xA Engineering: Disabling open load detection hides critical faults like broken valve wiring. A Michigan chemical plant’s reactor overpressurized because a valve’s open load wasn’t detected. Fix: Enable open load detection in the module’s parameter settings (threshold: 100mA), and configure 800xA alarms for open load events.
- Module Replacement: Use ABB’s Hot-Swap Procedure: Rookies remove modules without following hot-swap steps, causing DCS communication errors. A California refinery’s DCS crashed during a module swap until we used ABB’s hot-swap checklist. Fix: Put the module in “standby” mode via 800xA, remove power/communication cables, replace the module, and re-enable in “operate” mode—never hot-swap without proper procedure.

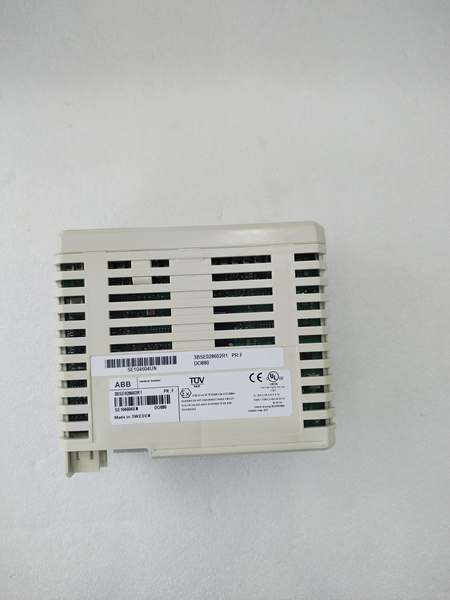

ABB DO880
Technical Deep Dive & Overview
The ABB DO880 is the backbone of high-integrity digital output control in ABB 800xA DCS ecosystems. At its core, a redundant-capable design supports dual power supplies and communication paths, ensuring operation during single-point failures—a must for safety-critical applications. Each of the 16 channels features a dedicated MOSFET driver with overcurrent protection (2.5A threshold) and overtemperature shutdown (85°C), preventing damage from short circuits or overloads.
What sets it apart from generic digital output modules is its 800xA-native integration: it’s pre-configured to work with ABB’s DCS without custom drivers, and channel-level diagnostics are seamlessly integrated into the 800xA alarm system. The module uses a current-sourcing (PNP) design, ideal for industrial actuators and valves that require positive voltage to activate.
The advanced diagnostics suite is a game-changer for maintenance teams: open load detection identifies broken wires before they cause process upsets, short circuit protection disables faulty channels without affecting others, and overtemperature warnings prevent module failure during high ambient conditions. For example, in a chemical plant reactor, open load detection on a shutdown valve would trigger an alarm before pressure exceeds safe limits—something generic modules can’t do.
The module’s compact DIN rail design saves cabinet space, while the robust construction (IP20 protection) withstands harsh industrial environments. For installation, it’s hot-swappable in S800 I/O racks, allowing replacement without shutting down the entire system. Unlike generic modules, it doesn’t require specialized training to troubleshoot—ABB’s 800xA engineering tools provide real-time diagnostic data, and the LED indicators offer at-a-glance status monitoring. It’s not just a digital output module—it’s a high-integrity control solution that delivers the reliability and safety ABB users demand in process automation.
