Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB DI524 1SAP240000R0001 |
| Manufacturer | ABB |
| Product Category | Digital Input Module |
| Series | Advant Controller AC 410 |
| Input Channels | 16 (24V DC) |
| Input Type | Sink/Source |
| Input Voltage | 19.2-30V DC |
| Input Current | 3-7mA |
| Response Time | 1ms (typical) |
| Isolation | 500V AC between field and logic |
| Power Consumption | 2W (typical) |
| Operating Temp | 0°C to +60°C |
| Dimensions | 120 × 80 × 40 mm |
| Weight | 300g |
| Certifications | CE, UL, cUL, IEC 61131-2 |
ABB DI524 1SAP240000R0001
Product Introduction
The ABB DI524 1SAP240000R0001 is a high-performance digital input module designed for ABB’s Advant Controller AC 410 series. This industrial-grade module provides 16 channels of 24V DC digital input with excellent noise immunity and fast response times, making it ideal for critical automation applications.
Engineered for reliability in harsh industrial environments, the DI524 features 500V AC isolation between field and logic circuits, ensuring signal integrity in electrically noisy installations. Its compact design and plug-and-play functionality simplify integration into existing control systems while maintaining ABB’s high standards for quality and performance.
As part of ABB’s comprehensive I/O portfolio, the ABB DI524 1SAP240000R0001 delivers robust signal acquisition for monitoring discrete field devices such as limit switches, pushbuttons, and relay contacts in process industries, power generation, and manufacturing applications.
Core Advantages and Technical Highlights
High-Density Design:
The ABB DI524 packs 16 digital input channels into a compact form factor, optimizing control cabinet space utilization. Each channel features individual LED status indication for quick visual diagnostics.
Flexible Configuration:
Supporting both sink and source input modes, the module accommodates various wiring schemes found in industrial environments. The wide input voltage range (19.2-30V DC) ensures stable operation despite power fluctuations.
Fast and Reliable Operation:
With a typical response time of 1ms, the DI524 provides timely detection of state changes for critical control applications. Advanced filtering prevents false triggering from electrical noise.
Robust Construction:
Designed for industrial durability, the module operates reliably within a 0°C to +60°C temperature range. The sturdy housing provides protection against vibration and mechanical stress.
Advanced Diagnostics:
Built-in channel monitoring detects wiring faults and field device issues. The module integrates with ABB’s control system diagnostics for comprehensive monitoring.
Easy Integration:
The ABB DI524 1SAP240000R0001 connects seamlessly to Advant Controller AC 410 systems, with automatic recognition and configuration in ABB’s engineering tools.

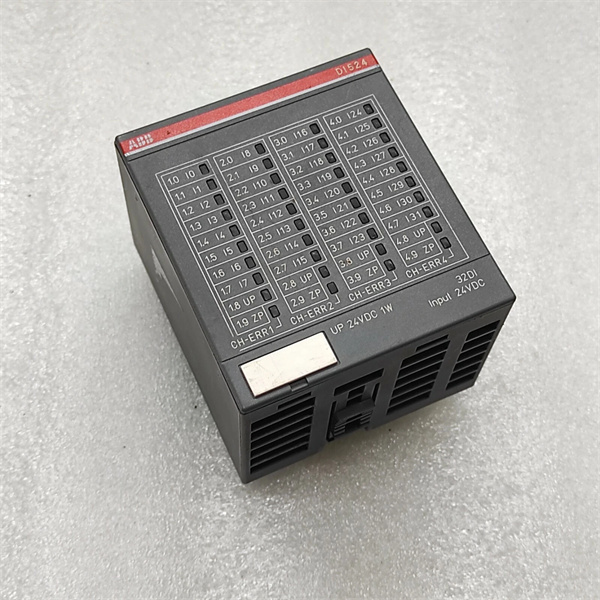

ABB DI524 1SAP240000R0001
Typical Application Scenarios
Process Industries:
In chemical plants, the ABB DI524 monitors valve positions, pump status, and safety interlocks, providing reliable input signals for process control systems.
Power Generation:
Power plants utilize the module for status monitoring of breaker positions, alarm contacts, and auxiliary equipment in turbine control applications.
Manufacturing:
Automotive production lines employ the DI524 to interface with limit switches, photoelectric sensors, and emergency stop circuits in robotic workcells.
Water Treatment:
Municipal facilities use the module to monitor pump status and level switches in filtration systems, benefiting from its robust design in humid environments.
Material Handling:
Conveyor systems and automated warehouses rely on the module for reliable signal acquisition from proximity sensors and position switches.
Related Model Recommendations
ABB DO524: 16-channel digital output counterpart
ABB AI524: 8-channel analog input module
ABB AO524: 8-channel analog output module
ABB CI524: Communication interface module
ABB PM524: Power supply module
ABB DI534: High-speed digital input module
ABB DI514: 32-channel digital input module
Installation & Commissioning
Installation Guidelines:
Mount the ABB DI524 in an available slot of the Advant Controller AC 410 rack. Use shielded cables for field wiring and maintain proper separation from high-voltage conductors. Verify the installation environment meets specified temperature requirements.
Commissioning:
Configure the module using ABB’s engineering tools. Verify each channel’s response to field device state changes. Set appropriate filtering parameters based on application noise levels.
Maintenance:
Regularly inspect for dust accumulation and clean using compressed air. Check terminal tightness during routine maintenance. Monitor LED indicators for abnormal status patterns.
Service & Warranty
ABB provides a 24-month warranty for the DI524 1SAP240000R0001, covering manufacturing defects. Technical support is available through ABB’s global network. The product is supported by ABB’s lifecycle management program, with spare parts availability guaranteed for 10 years after product discontinuation.
Conclusion
The ABB DI524 1SAP240000R0001 digital input module delivers reliable, high-density signal acquisition for industrial automation systems. Its robust construction and flexible configuration make it an ideal choice for demanding applications across various industries. For specific application requirements, consult ABB’s automation experts.
