Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB DI01 |
| Manufacturer | ABB |
| Product Category | Digital Input Module (S800 I/O Series) |
| Compatible System | ABB Ability™ 800xA, Advant OCS, S+ Operations |
| Input Channels | 16 channels (single-ended) |
| Input Type | Dry contact / 24 V DC sourcing |
| Input Voltage Range | 19-30 V DC |
| On-State Voltage | 11-30 V DC |
| Off-State Voltage | 0-5 V DC |
| Isolation | Channel-to-channel: 500 V AC |
| Channel-to-backplane: 1500 V AC | |
| Response Time | ≤ 1 ms (on/off) |
| Power Consumption | 1.5 W (typical) |
| Operating Temperature | -25°C to +70°C |
| Connection Method | Spring-clamp terminal block |
| Diagnostics | Per-channel LED indicators |
| Safety Certification | SIL 2 (IEC 61508) |
| Dimensions (W x H x D) | 60 mm x 128 mm x 116 mm |

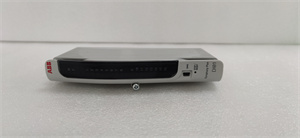

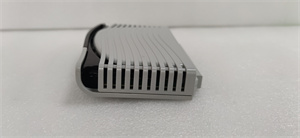

ABB DI01
Product Introduction
The ABB DI01 is a high-density digital input module engineered for ABB’s S800 I/O family, serving as a critical interface between field devices and control systems in the Ability™ 800xA and Advant OCS platforms. Designed for industrial environments, this 16-channel module converts discrete field signals (e.g., switch contacts, sensor outputs) into digital data for processing by controllers. The DI01 operates with both dry contacts and 24V DC sourcing devices, providing flexibility across diverse applications.
As part of ABB’s modular I/O architecture, the DI01 enables precise monitoring of binary states for safety interlocks, equipment status, and process alarms. Its technical design prioritizes signal integrity with 500V AC channel-to-channel isolation, preventing cross-talk in multi-voltage systems. Within automation architectures, the ABB DI01 delivers exceptional value by reducing wiring complexity through compact channel density while maintaining SIL 2 compatibility for safety-related applications.
Core Advantages and Technical Highlights
The ABB DI01 excels in reliability and performance through innovative engineering:
Signal Integrity Assurance: Advanced noise rejection circuitry (20V surge withstand) maintains accuracy in electrically noisy environments like steel mills. Channel-specific Schmidt triggers eliminate contact bounce interference.
Diagnostic Visibility: Dual-color per-channel LEDs (green=on, red=error) enable instant fault localization without software tools. Open-wire detection for field circuits.
Safety Integration: SIL 2 certification supports deployment in safety instrumented functions (SIFs) when used with certified controllers. Built-in short-circuit protection (0.5A fuse equivalent).
Robust Connectivity: Gold-plated spring-clamp terminals ensure vibration-resistant connections (IEC 60068-2-6 compliant). Tin-plated copper backplane contacts prevent oxidation.
Thermal Management: Patented heat-spreading PCB design maintains full performance at 70°C ambient without derating.
Hot-Swappable Operation: Field-replaceable during system operation when used with redundant power supplies.
Typical Application Scenarios
The ABB DI01 delivers critical signal acquisition in demanding industrial environments:
Power Generation: Monors turbine lube oil pressure switches and breaker status in combined-cycle plants, with SIL 2 compliance for safety shutdown triggers.
Manufacturing Lines: Tracks position sensors on automotive assembly robots, withstanding electromagnetic interference from welding equipment.
Water Treatment Plants: Detects pump run status and valve limit switches across geographically distributed facilities, leveraging long-distance 24V signal capability.
Mining Conveyors: Interfaces with emergency pull-cord switches and belt alignment sensors in high-vibration environments.
Chemical Processing: Monors flame detection system outputs in ATEX Zone 2 areas, with galvanic isolation preventing ground loops.
In each application, the DI01 provides deterministic signal capture with <1ms response for critical state changes.

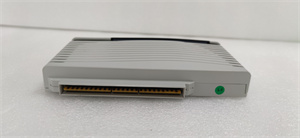

ABB DI01
Related Model Recommendations
ABB SD822 – 32-channel digital input module for high-density applications.
ABB SD823 – Diagnostic DI module with per-channel short-circuit detection.
ABB DO01 – 16-channel digital output module for complementary control.
ABB AI01 – Analog input module for unified signal acquisition.
ABB TB801 – Terminal base unit for simplified DI01 wiring.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure backplane power is de-energized. Verify ambient temperature compliance. Ground DIN rail using 4mm² conductor. Insert DI01 into baseplate until locking lever clicks. Maintain ≥25mm clearance from high-current cables.
Maintenance Suggestions: Clean terminal contacts annually with isopropyl alcohol. Verify LED functionality during routine inspections. Replace after 500,000 insertion cycles or 15 years service. For SIL 2 systems, perform channel validation tests biannually using simulated field signals.
Service and Guarantee Commitment
ABB warrants the DI01 for 36 months against defects. Our global support includes:
24/7 technical assistance via ABB support hubs
Lifetime firmware compatibility assurance
SIL 2 documentation packages (FMEDA, SRS)
Advance replacement program for critical failures
15-year minimum spare parts availability
On-site calibration services
Free configuration templates for Control Builder
Extended service contracts offer predictive failure analytics based on operational telemetry data.
