Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB DCF1061134R0001 YPP110A |
| Manufacturer | ABB |
| Product category | Industrial Control Module |
| Input voltage | 24 V DC (±10%) |
| Output voltage | 480 V AC |
| Output current | 110 A |
| Power | 52.8 kW |
| Frequency range | 0.5 Hz to 150 Hz |
| Cooling method | Natural cooling |
| Protection class | IP20 |
| Installation method | Plug-in |
| Dimensions | 280 mm x 170 mm x 70 mm |
| Weight | 2.5 kg |
| Operating temperature | -20°C to +60°C |
| Humidity | Up to 90% non-condensing |
| Communication protocols | RS-485, Ethernet, Profibus DP v1.0, Modbus RTU, Modbus TCP/IP |
| Certifications | CE, RoHS |

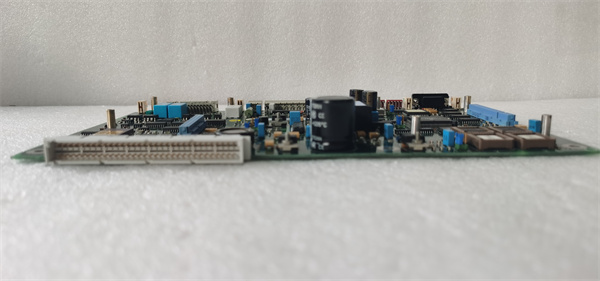

ABB DCF1061134R0001 YPP110A
Product Introduction
The ABB DCF1061134R0001 YPP110A is a high-performance magnetic excitation controller module designed for industrial automation applications. It is part of the ABB YPP series and is specifically designed for precise control of magnetic excitation currents in generators and electric motors. This module ensures stable and reliable operation in power systems by providing high-precision control and real-time monitoring.
Core Advantages and Technical Highlights
High Precision Control: The module features a measurement accuracy of ±0.05%, enabling precise control of magnetic excitation currents even in complex industrial environments.
Multiple Communication Protocols: The DCF1061134R0001 YPP110A supports a wide range of communication protocols, including RS-485, Ethernet, Profibus DP v1.0, Modbus RTU, and Modbus TCP/IP, ensuring seamless integration with existing automation systems.
Fast Response Capability: The module is designed to respond quickly to load changes, providing real-time adjustments to ensure system stability.
High Reliability: Manufactured with high-quality components and stringent production processes, the module ensures stable operation in harsh industrial conditions.

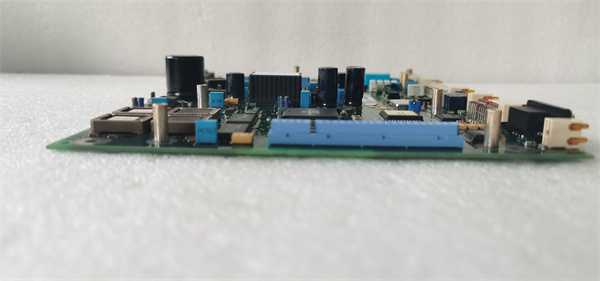

ABB DCF1061134R0001 YPP110A
Typical Application Scenarios
The ABB DCF1061134R0001 YPP110A is widely used in various industrial sectors, including:
-
Power Generation: Precise control of generator excitation systems to ensure stable power output.
-
Manufacturing: Driving and controlling electric motors in applications such as pumps, fans, and compressors.
-
Oil and Gas: Ensuring reliable operation of electric motors in harsh environments.
Related Model Recommendations
-
ABB YPP110A: A digital processor module that can be used in conjunction with the DCF1061134R0001 for enhanced control capabilities.
-
ABB AC500 Series PLCs: Compatible with the DCF1061134R0001 for comprehensive automation solutions.
-
ABB ACS880 Drives: Can be integrated with the DCF1061134R0001 for precise motor speed and torque regulation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB DCF1061134R0001 YPP110A, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB DCF1061134R0001 YPP110A, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features.
