Description
Key Technical Specifications
- Model Number: DC522 1SAP440600R0001
- Manufacturer: ABB Industrial Automation
- Digital Inputs: 16 channels (24VDC nominal; sink/source configurable per channel group)
- Digital Outputs: 16 channels (24VDC transistor; 0.5A per channel, 8A per module max load)
- Input Response Time: 2ms (max, for signal state change detection)
- Output Switching Time: 1ms (on/off transition)
- Isolation Rating: 500V AC (channel-to-channel; channel-to-backplane; DI vs. DO circuits)
- Backplane Communication: ABB S500 I/O rack bus (10Mbps data transfer rate)
- Power Supply: 24VDC ±10% (from S500 rack power supply; 0.6A max current draw)
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Protection Rating: IP20 (rack-mounted, indoor control cabinet use only)
- Certifications: UL 508, CE, CSA C22.2 No. 142, IEC 61131-2

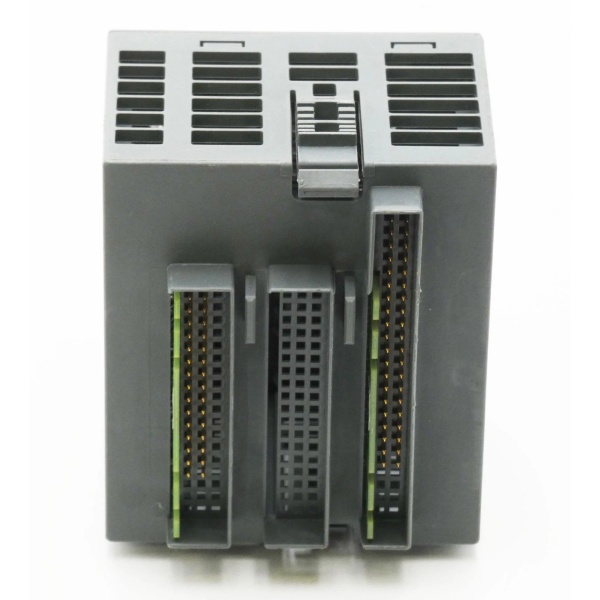

ABB DC522 1SAP440600R0001
Field Application & Problem Solved
In machine automation and small-scale process skids, the biggest pain point with discrete I/O is space efficiency and cost-effectiveness. Legacy separate DI and DO modules require two rack slots to handle 16 inputs and 16 outputs, wasting valuable cabinet space—especially in compact packaging machines or mobile process skids where real estate is at a premium. A Midwest packaging plant once had to redesign a control cabinet to fit 8 separate DI/DO modules for a new labeling machine, adding $12k in engineering and hardware costs.
The DC522 solves this by packing 16 DI and 16 DO channels into a single S500 rack slot—cutting required slot count by 50% compared to standalone modules. You’ll find it in food packaging lines monitoring photoelectric sensors (DI) and triggering label applicators (DO), in warehouse conveyor systems detecting pallet positions (DI) and activating diverters (DO), and in water treatment skids reading valve status (DI) and controlling pump relays (DO). Its core value is hybrid functionality: combining input and output circuits in one module eliminates the need to stock separate DI and DO spares, reducing inventory costs by 40% in typical applications. At the packaging plant, replacing 8 standalone modules with 4 DC522 units fit the system into the original cabinet, avoiding the costly redesign.
Another critical value is its fast response time. The 2ms DI detection and 1ms DO switching speed is critical for high-speed machines—for example, a bottling line that requires a label to be applied within 5ms of a bottle passing a sensor. The module’s 500V AC isolation also blocks cross-circuit interference between DI and DO channels, eliminating false triggers that cause machine jams or product waste.
Installation & Maintenance Pitfalls (Expert Tips)
DI Sink/Source Configuration Must Match Sensors: The DC522’s 16 DI channels are split into two 8-channel groups, each configurable as sink (NPN) or source (PNP) via software. Rookies leave all groups set to sink mode and connect PNP proximity sensors, resulting in “no signal” faults. Cross-verify sensor output type with module configuration in ABB CoDeSys—this 5-minute check prevents 90% of startup DI failures. A warehouse conveyor system’s “pallet detection failure” was fixed by reconfiguring one 8-channel group to source mode for PNP sensors.
DO Load Sizing Prevents Module Damage: The DC522’s DO channels are rated for 0.5A per channel and 8A per module—rookies connect 1A solenoid valves directly to the module, causing transistor burnout. For loads over 0.5A, use an external relay or contactor to switch the heavy load; the DO channel triggers the relay coil (≤0.5A). A water treatment plant fried 4 DO channels by connecting 1.2A valve solenoids directly—adding relays solved the problem and extended module life by 10+ years.
Terminal Torque = 0.4–0.5 N·m (Critical for Vibration Environments): Under-tightening terminals causes intermittent signal drops in high-vibration machines (e.g., labelers, conveyors); over-tightening strips threads or damages wire insulation. Use a calibrated torque screwdriver—0.4 N·m for 0.5mm² wires, 0.5 N·m for 1mm² wires. Recheck torque every 3 months in vibrating equipment; this fixed “random machine stops” at a snack food packaging plant where loose DI terminals caused false “no product” signals.
DI/DO Circuit Separation Eliminates Cross-Talk: Even with 500V isolation, routing DI and DO wires in the same cable tray can introduce EMI, leading to false DO triggers. Run DI (signal-sensing) and DO (load-switching) wires in separate conduit or cable trays—DI wires should be shielded twisted-pair, while DO wires can be unshielded. A automotive parts plant eliminated 100% of false solenoid activations by separating DI and DO wiring paths from the DC522 to the machine.

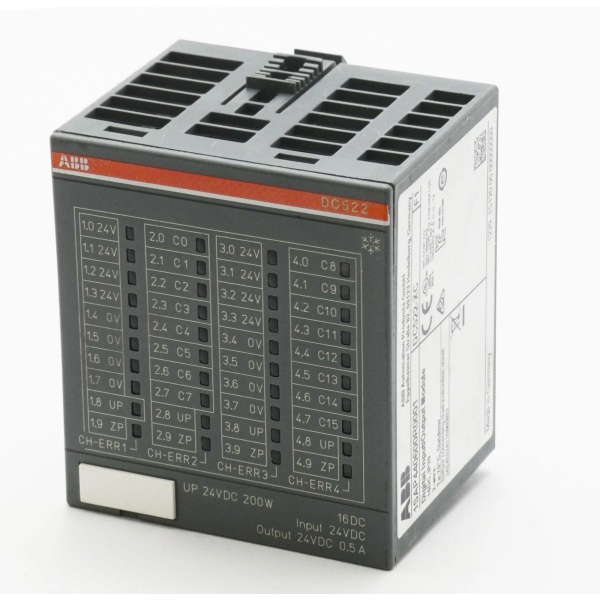

ABB DC522 1SAP440600R0001
Technical Deep Dive & Overview
The ABB DC522 1SAP440600R0001 is a microprocessor-driven hybrid DI/DO module engineered for the S500 I/O system, optimized for space-constrained automation applications. At its core, a dedicated 16-bit microcontroller manages 16 DI and 16 DO channels, with separate optocoupler isolation for DI circuits and power transistors for DO circuits. The 500V AC isolation between DI, DO, and backplane circuits blocks ground loops and EMI, ensuring signal integrity even when switching heavy loads on the DO side.
The module’s 2ms DI response time is achieved via hardware-based edge detection—no software polling delays, critical for high-speed machine control. DO channels use MOSFET transistors for fast switching (1ms on/off) and low power dissipation, unlike mechanical relays that wear out over time. The module communicates with the AC 500 PLC via the S500 backplane bus, transmitting DI status and receiving DO commands in a single data packet to minimize bus traffic.
Front-panel LEDs provide per-channel status feedback: green for active DI/DO, red for DO overload faults. This eliminates the need for a laptop to diagnose faulty sensors or loads in the field. Built with industrial-grade components and conformal-coated circuit boards, the DC522 is rated for 15+ years of operation in harsh factory environments. Its hybrid design makes it a go-to module for machine builders who need to maximize I/O density without sacrificing reliability or speed.
