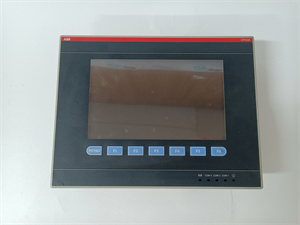

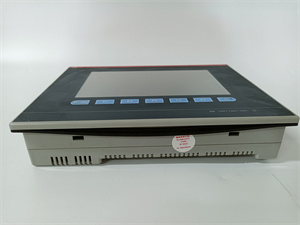

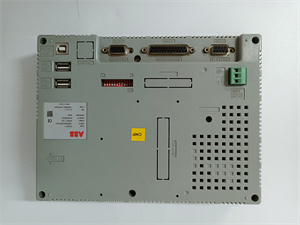

ABB CP435T 1SBP260193R1001

Description

Detailed Parameter Table

Parameter Name	Parameter Value
Product Model	CP435T 1SBP260193R1001
Manufacturer	ABB
Product Category	HMI Panel
Display Size	4.3″ TFT LCD
Resolution	480 × 272 pixels
Touch Technology	Resistive (analog)
Brightness	250 cd/m²
Processor	400 MHz RISC
Memory	128MB Flash, 64MB RAM
Interfaces	1× USB 2.0, 1× RS-232/485
Operating Voltage	24V DC (±20%)
Power Consumption	8W typical
Operating Temperature	0°C to +50°C
Protection Rating	IP65 (front), IP20 (rear)
Dimensions	165 × 117 × 46 mm

Product Introduction

The ABB CP435T 1SBP260193R1001 is a compact and robust HMI panel designed for industrial automation applications requiring reliable operator interfaces. Part of ABB’s CP400 series, this 4.3″ touch panel combines clear visualization with rugged construction, making it ideal for deployment in harsh industrial environments.

The CP435T features a bright TFT LCD display with resistive touch technology, ensuring reliable operation even when operators are wearing gloves. With its 400MHz processor and ample memory, the panel delivers responsive performance for machine-level HMI applications. The 1SBP260193R1001 variant includes comprehensive communication interfaces for seamless integration with ABB PLCs and third-party control systems.

Engineered for 24/7 operation, the CP435T 1SBP260193R1001 meets the demands of manufacturing, process control, and building automation systems where space is limited but functionality cannot be compromised.

Core Advantages and Technical Highlights

Display performance: The ABB CP435T 1SBP260193R1001 features a high-contrast 4.3″ TFT LCD with 250 cd/m² brightness, ensuring excellent visibility in various lighting conditions. The display offers a wide viewing angle (140° horizontal/vertical) and supports 65K colors for clear status indication and alarm visualization.

Rugged construction: Designed for industrial environments, the panel boasts:



IP65-rated front panel protection against dust and water jets



Vibration-resistant mounting (5g @ 10-150Hz)



Wide operating temperature range (0-50°C)



EMI/RFI immunity per EN 61000-6-2



Connectivity options: The CP435T provides flexible communication through:



USB 2.0 host port for data transfer and peripherals



Configurable RS-232/485 serial port



Optional Ethernet via expansion module



Native support for ABB AC500 PLC protocols



User-friendly features: The panel includes:



Resistive touch supporting glove operation



Programmable function keys



SD card slot for project backup



Password-protected access levels



Multilingual display support



Typical Application Scenarios

The ABB CP435T 1SBP260193R1001 is widely used in industrial control applications:

Manufacturing:



Machine operator interfaces for CNC equipment



Production line monitoring stations



Robotic cell control panels



Process Industries:



Small-scale process visualization



Pump and valve control stations



Batch operation interfaces



Building Automation:



HVAC system control panels



Elevator control interfaces



Energy management displays



The panel’s compact size makes it particularly suitable for applications where space is limited, such as control cabinet doors or small machinery control stations. Its IP65 front protection allows installation in areas subject to washdown or dust exposure.

Related Model Recommendations



CP635T: 6.5″ touch panel with higher resolution



CP451: 5.7″ color touch panel with Ethernet



CP600: Advanced series with capacitive touch



PP485: Panel PC with integrated PLC



CP400-TC: Temperature controller variant



CP435T-K: Keypad version without touch



CP435T-E: Ethernet-equipped version



Installation, Commissioning and Maintenance Instructions

Installation preparation: Mount the ABB CP435T 1SBP260193R1001 using the integrated mounting clips or optional VESA bracket. Ensure proper clearance (minimum 50mm) around ventilation openings. Verify the 24V DC power supply is stable and properly grounded before connection. Prepare the communication cables according to the interface requirements.

Maintenance suggestions: Clean the display surface regularly using a soft, damp cloth with mild detergent. Avoid abrasive cleaners that could damage the resistive touch layer. Periodically check the tightness of electrical connections. Backup the HMI application to SD card after any significant changes. Monitor the display brightness and consider replacement if significant fading occurs.

Service and Guarantee Commitment

ABB provides a 36-month warranty for the CP435T 1SBP260193R1001, covering manufacturing defects and component failures. The panel undergoes extensive environmental testing including:



1000-hour temperature cycling



Mechanical vibration testing



IP65 validation testing



EMC immunity testing



ABB’s global support network offers:



Technical documentation and manuals



Software updates for Panel Builder 400



Repair and replacement services



On-site commissioning assistance



Training programs for operators and engineers



The CP435T 1SBP260193R1001 is supported by ABB’s long-term availability commitment, with guaranteed spare parts supply for at least 7 years after product discontinuation.
