Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB CMA136 3DDE300416 |
| Manufacturer | ABB |
| Product Category | Communication Module |
| Interface Type | Redundant Ethernet |
| Communication Protocols | Modbus TCP/IP, OPC UA |
| Data Transfer Rate | 100 Mbps |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 V DC (±10%) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 45 mm x 135 mm x 115 mm |
| Certifications | CE, UL, cUL |

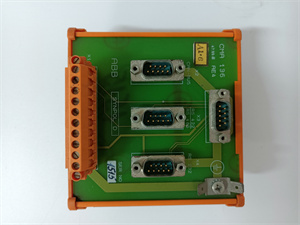

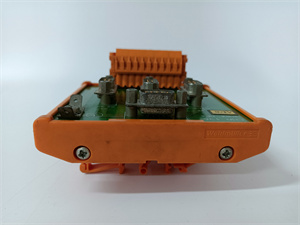

ABB CMA136 3DDE300416
Product Introduction
The ABB CMA136 3DDE300416 is a high-performance communication module designed for industrial automation systems. As part of ABB’s extensive control system portfolio, this module provides reliable data exchange between field devices and control systems. The ABB CMA136 3DDE300416 features redundant Ethernet interfaces to ensure uninterrupted communication in critical applications.
With support for Modbus TCP/IP and OPC UA protocols, the ABB CMA136 3DDE300416 enables seamless integration with various control systems and SCADA platforms. Its compact design and robust construction make it suitable for installation in control cabinets and industrial environments.
Core Advantages and Technical Highlights
Reliable communication: The ABB CMA136 3DDE300416 offers redundant Ethernet ports for fail-safe operation, ensuring continuous data transmission even in case of network failures. The module supports simultaneous communication with multiple protocols.
Robust design: Built to withstand harsh industrial conditions, the ABB CMA136 3DDE300416 operates reliably in temperatures ranging from -20°C to +60°C. Its compact form factor allows for space-efficient installation in control panels.
Easy integration: With native support for Modbus TCP/IP and OPC UA, the ABB CMA136 3DDE300416 simplifies connectivity with various ABB and third-party systems. The module features plug-and-play installation with automatic configuration capabilities.
Advanced diagnostics: The module includes comprehensive self-diagnostic functions that monitor communication status and network health, enabling proactive maintenance and troubleshooting.
Typical Application Scenarios
The ABB CMA136 3DDE300416 is widely used in:
Power generation plants for data acquisition and control system integration
Oil and gas facilities for process monitoring and safety system communication
Water treatment plants for SCADA system connectivity
Manufacturing automation for machine-to-system data exchange
Building management systems for HVAC control and monitoring
In these applications, the ABB CMA136 3DDE300416 ensures reliable data communication between field devices, controllers, and supervisory systems.

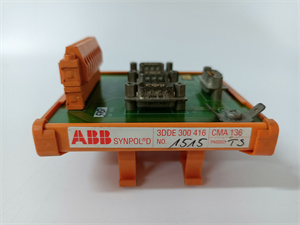

ABB CMA136 3DDE300416
Related Model Recommendations
ABB CMA132: Basic communication module with single Ethernet interface
ABB CMA135: Advanced module with additional protocol support
ABB CI854: Communication interface for PROFIBUS networks
ABB CI867: Ethernet/IP communication interface
ABB CI871: Redundant PROFINET communication module
Installation, Commissioning and Maintenance Instructions
Installation preparation: Mount the ABB CMA136 3DDE300416 on a DIN rail in a properly ventilated control cabinet. Ensure proper grounding and verify that the power supply meets specifications before connection.
Maintenance suggestions: Regularly check the module’s status indicators for proper operation. Keep firmware updated to the latest version for optimal performance and security. Periodically inspect network connections for integrity.
Service and Guarantee Commitment
ABB provides a standard 24-month warranty for the ABB CMA136 3DDE300416, covering manufacturing defects. Technical support is available through ABB’s global service network, with options for extended warranty and maintenance agreements. Firmware updates and configuration assistance are available through ABB’s customer support channels.
