Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB CM579-PNIO 1SAP170901R0001 |
| Manufacturer | ABB |
| Product Category | PROFINET I/O Module |
| Communication Protocol | PROFINET IO (Class B) |
| Data Transfer Rate | 100 Mbps |
| Number of I/O Slots | Up to 16 modules |
| Cycle Time | ≤1 ms |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Power Supply | 24 V DC (±15%) |
| Dimensions (W×H×D) | 45×126×117 mm |
| Certifications | CE, UL, cUL, PROFINET Conformance Class B |

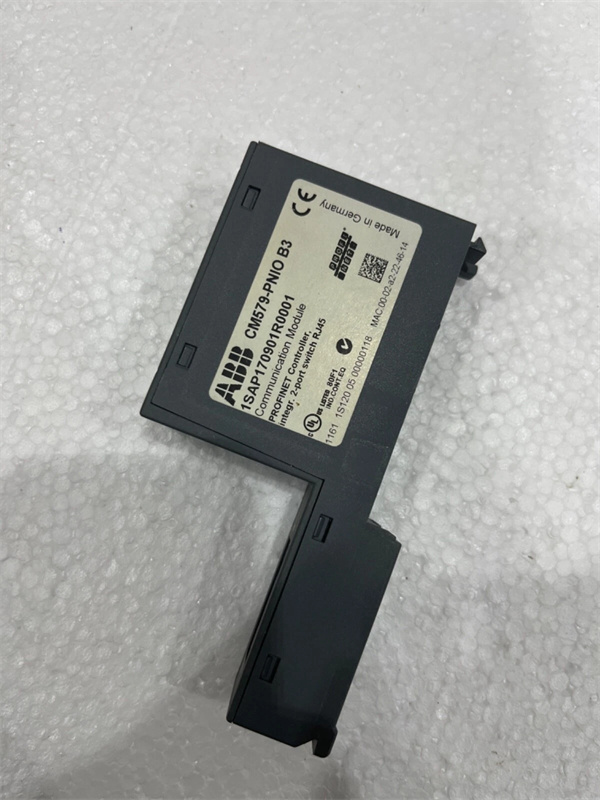

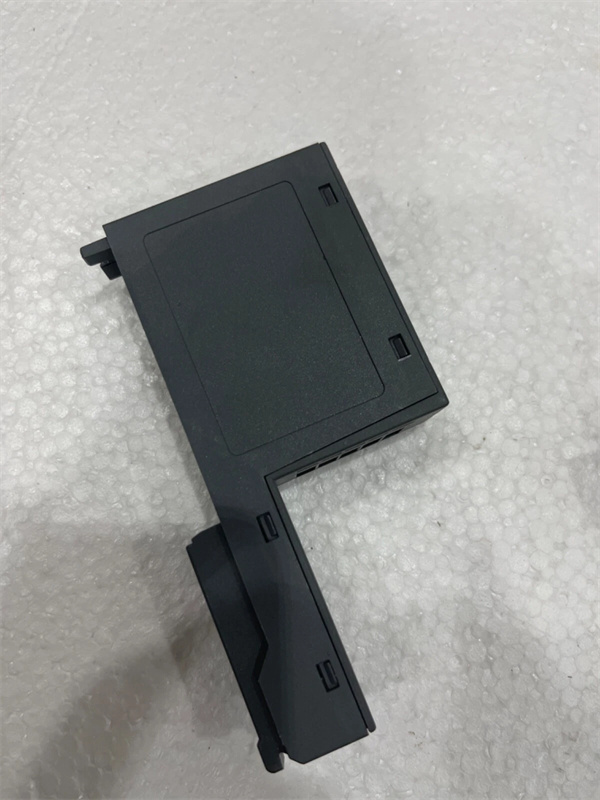

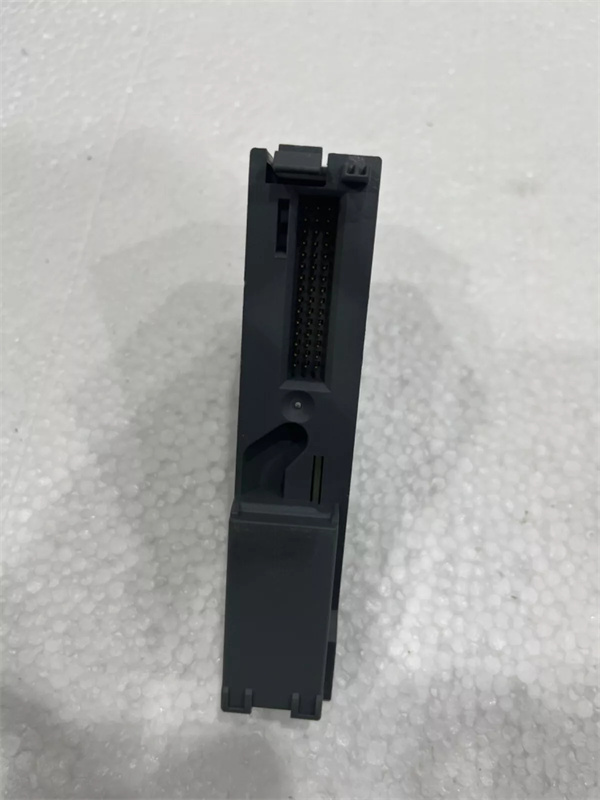

ABB CM579-PNIO 1SAP170901R0001
Product Introduction
The ABB CM579-PNIO 1SAP170901R0001 is a high-performance PROFINET I/O controller module designed for industrial automation systems. As part of ABB’s AC500 PLC family, this advanced communication module enables seamless integration of ABB controllers into PROFINET networks. The ABB CM579-PNIO 1SAP170901R0001 provides deterministic real-time communication and supports PROFINET IO Class B conformance for reliable industrial networking.
With its compact design and robust performance, the ABB CM579-PNIO 1SAP170901R0001 serves as an ideal solution for demanding automation applications requiring high-speed data exchange between controllers and field devices. The module supports isochronous real-time (IRT) communication for motion control applications and features integrated 2-port switch functionality for easy network topology implementation.
Core Advantages and Technical Highlights
PROFINET performance: The ABB CM579-PNIO 1SAP170901R0001 delivers high-speed PROFINET communication with cycle times as low as 1 ms, supporting both RT and IRT communication classes for time-critical applications. The integrated switch enables linear, star, or ring topologies without additional hardware.
Robust industrial design: Built for 24/7 operation in industrial environments, the module features a rugged metal housing with IP20 protection. The wide operating temperature range (0°C to +60°C) ensures reliable performance in challenging conditions.
Flexible configuration: Supporting up to 16 I/O modules, the ABB CM579-PNIO 1SAP170901R0001 allows for scalable system expansion. The module supports PROFINET device replacement without removable medium (FRNC) for quick device replacement.
Advanced diagnostics: Comprehensive diagnostic capabilities including port diagnostics, topology detection, and detailed error messages simplify troubleshooting and maintenance. The module supports PROFINET alarms and SNMP for network monitoring.
Typical Application Scenarios
The ABB CM579-PNIO 1SAP170901R0001 is ideally suited for:
Factory Automation: High-speed machine control in automotive and packaging industries
Process Control: Integration of field devices in chemical and pharmaceutical plants
Material Handling: Synchronization of conveyor systems and robotic cells
Energy Management: Networked control of power distribution equipment
Water Treatment: SCADA system integration for pump and valve control
In these applications, the module provides deterministic communication for time-critical processes while maintaining the flexibility needed for modern industrial networks.
Related Model Recommendations
ABB CM572-PNIO: Basic PROFINET I/O controller with reduced functionality
ABB CM584-ETH: Ethernet/IP communication module
ABB PM573-ETH: PROFINET-enabled CPU module
ABB TB521-ETH: Ethernet terminal bus coupler
ABB CI871: PROFINET communication interface for 800xA systems
Installation, Commissioning and Maintenance Instructions
Installation preparation: Mount the ABB CM579-PNIO 1SAP170901R0001 on a DIN rail in a properly ventilated control cabinet. Ensure proper grounding and verify network cable specifications (CAT5e or better for PROFINET). Allocate sufficient space for heat dissipation and cable bending radius.

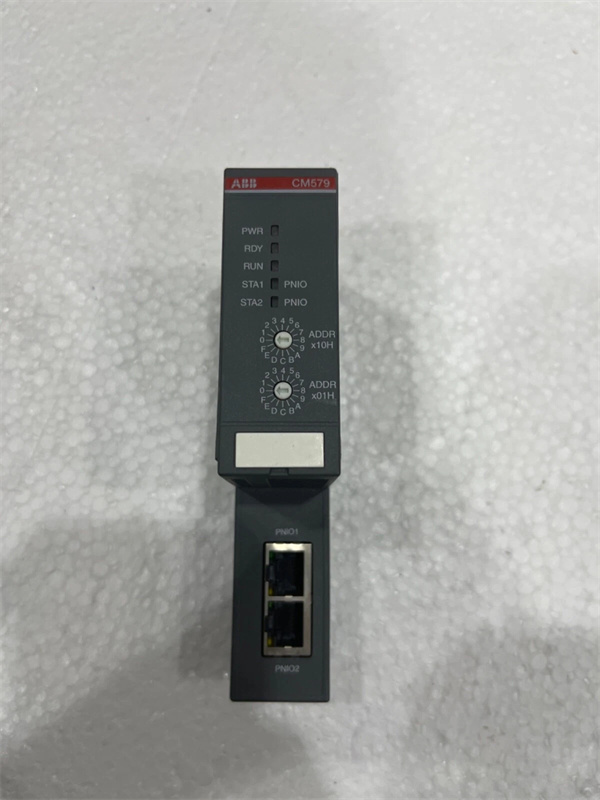

Maintenance suggestions: Regularly check the module’s status LEDs for proper operation. Keep firmware updated to the latest version for optimal performance and security. Periodically inspect network connections and cable integrity. Use PROFINET diagnostic tools for network performance monitoring.
Service and Guarantee Commitment
ABB provides a standard 36-month warranty for the ABB CM579-PNIO 1SAP170901R0001, covering manufacturing defects. Global technical support is available through ABB’s network of automation specialists, with options for extended warranty and maintenance agreements. Firmware updates and configuration tools are available through ABB’s Automation Builder software platform.
